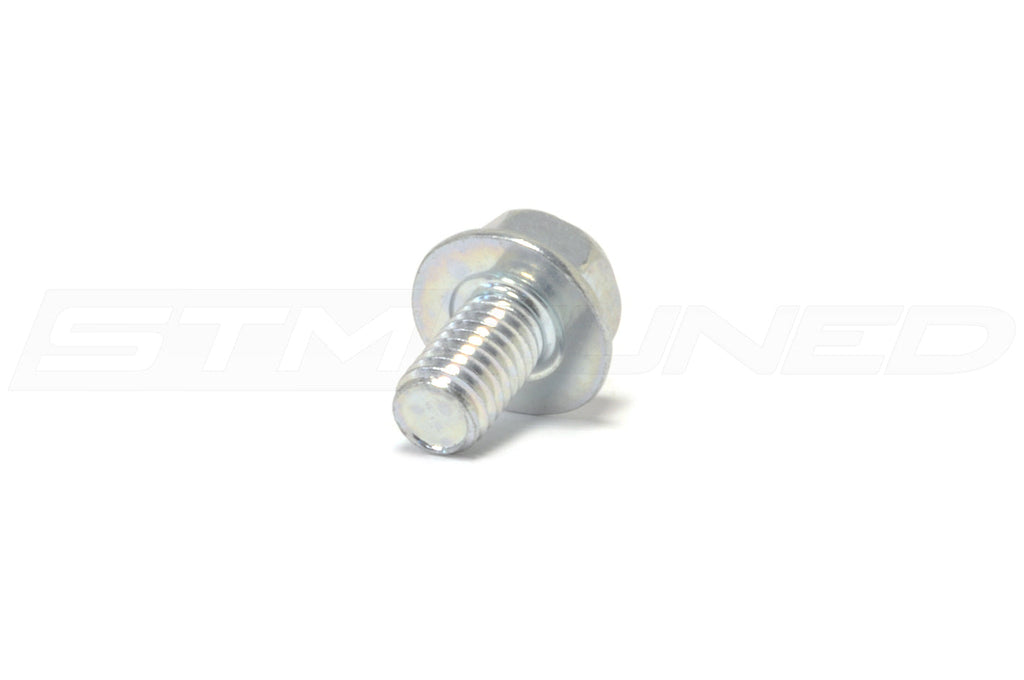

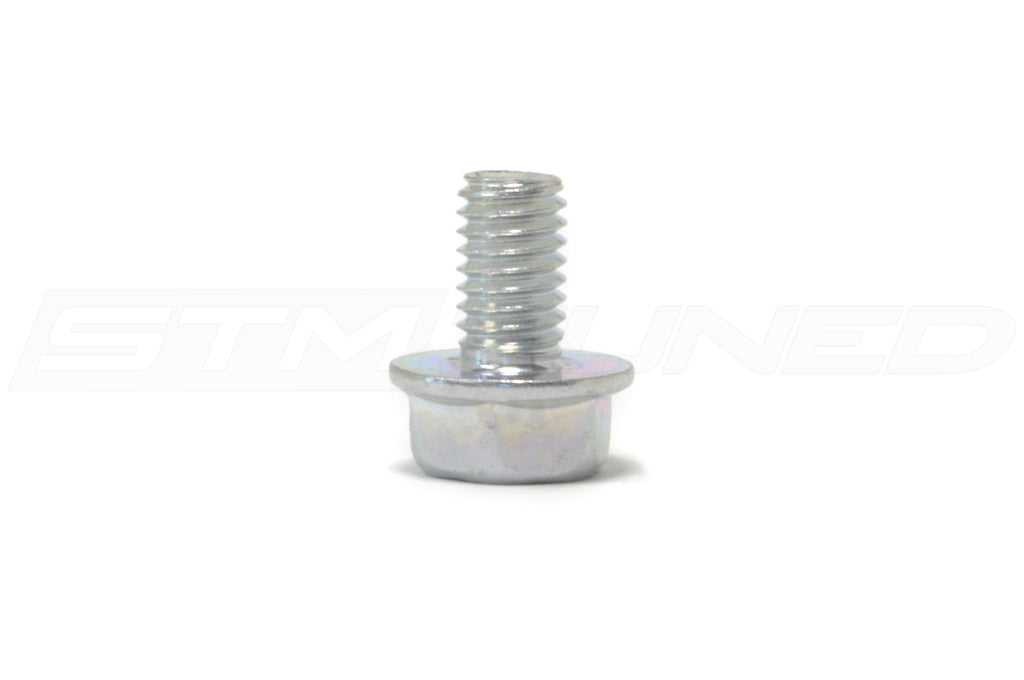

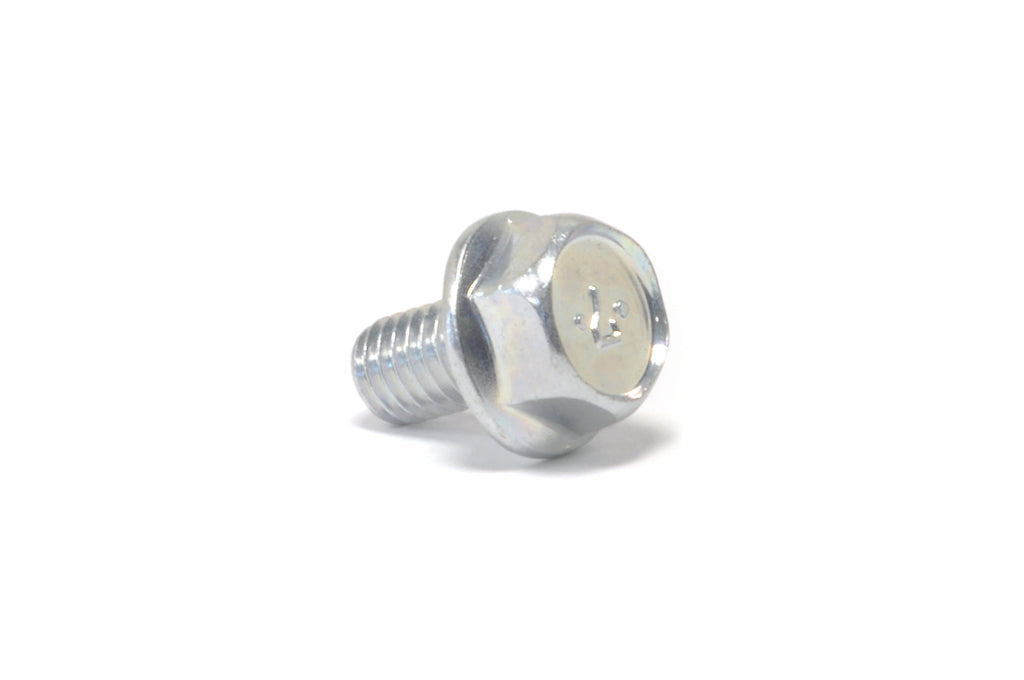

Mitsubishi OEM Bolt for Evo 5-9 Trans to Engine Evo X Oil Pan & Main Seal (MF140202)
$5.18
Skip to product information
$5.18
Product Overview
In Evo 5-9 models, it secures the manual transmission to the engine. On Evo X, it is used in both the rear main seal and engine oil pan, with 8 and 14 bolts respectively. It also holds the throttle cable clip to the valve cover on Evo 8 and 9 units.
Key Features
- OEM-grade M6x10 bolt designed for original Mitsubishi Evo models
- Used in critical engine and transmission mounting points
- Specifically fits Evo X rear main seal and oil pan assemblies
- Mandatory for proper alignment and secure fastening in Evo 5-9 and Evo X applications
- Part number MF140202 matches factory specifications
- Includes one bolt per unit; sold individually for precise installation
Specifications
| Bolt Size | M6x10 |
|---|---|
| Part Number | MF140202 |
| Vehicle Fitment | CP9A Evolution V VI, CT9A Evolution VII VIII IX, CZ4A Evolution X |
| Application | Trans to Engine Mount (Evo 5-9), Oil Pan & Main Seal (Evo X), Throttle Cable Clip (Evo 8-9) |
Applications

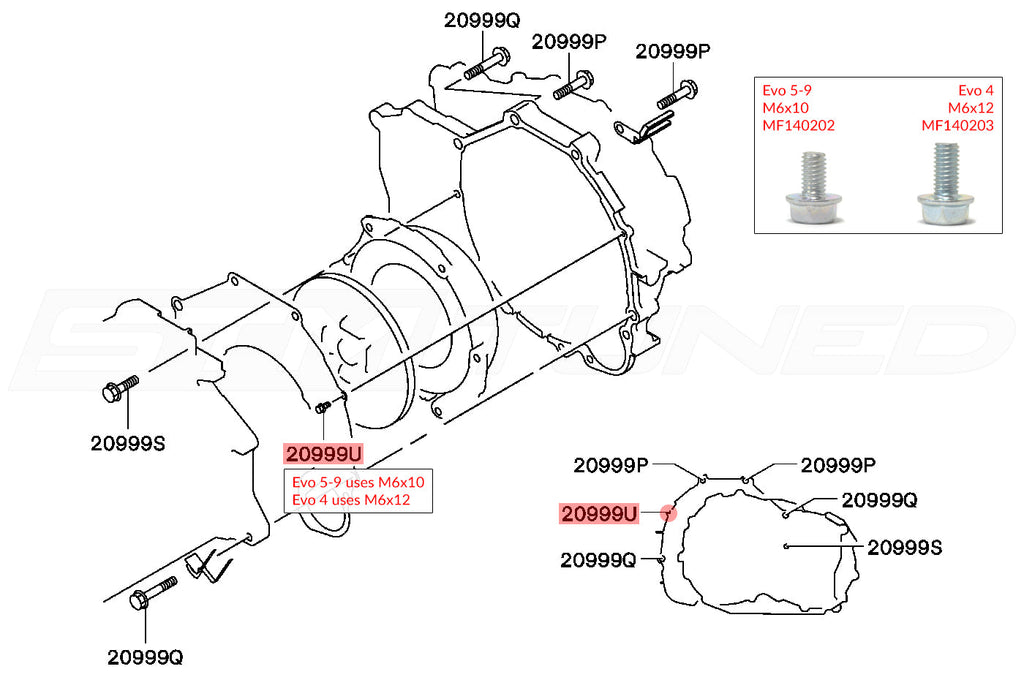

- Evo 5/6/7/8/9 transmission to engine mounting

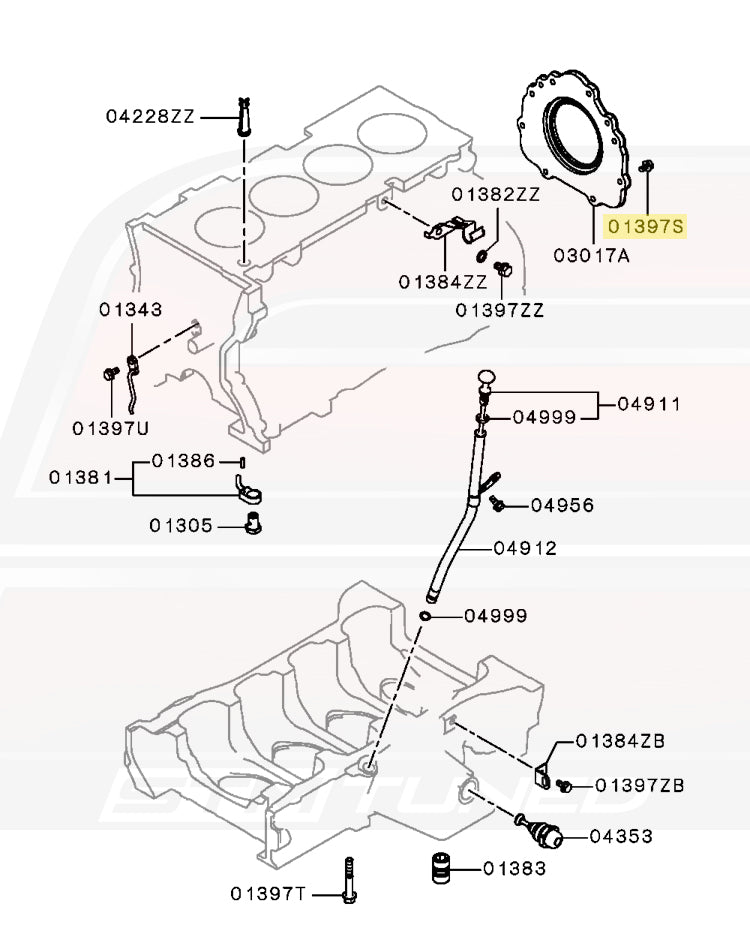

- Evo X rear main seal assembly

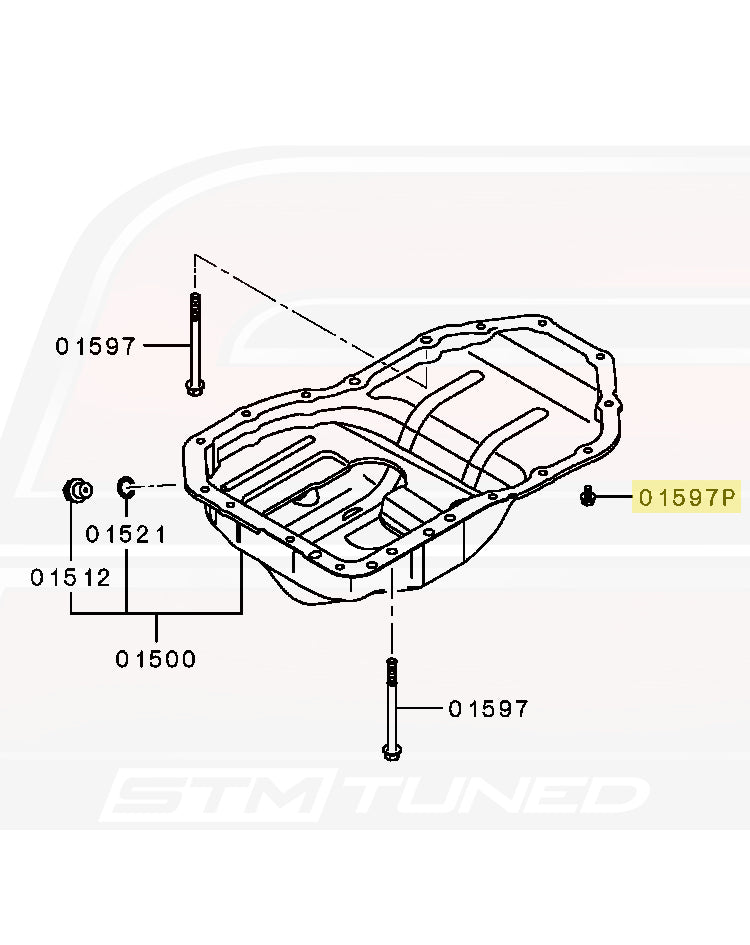

- Evo X engine oil pan mounting
- Evo 8/9 throttle cable clip to valve cover
What's Included
- 1 x M6x10 bolt
