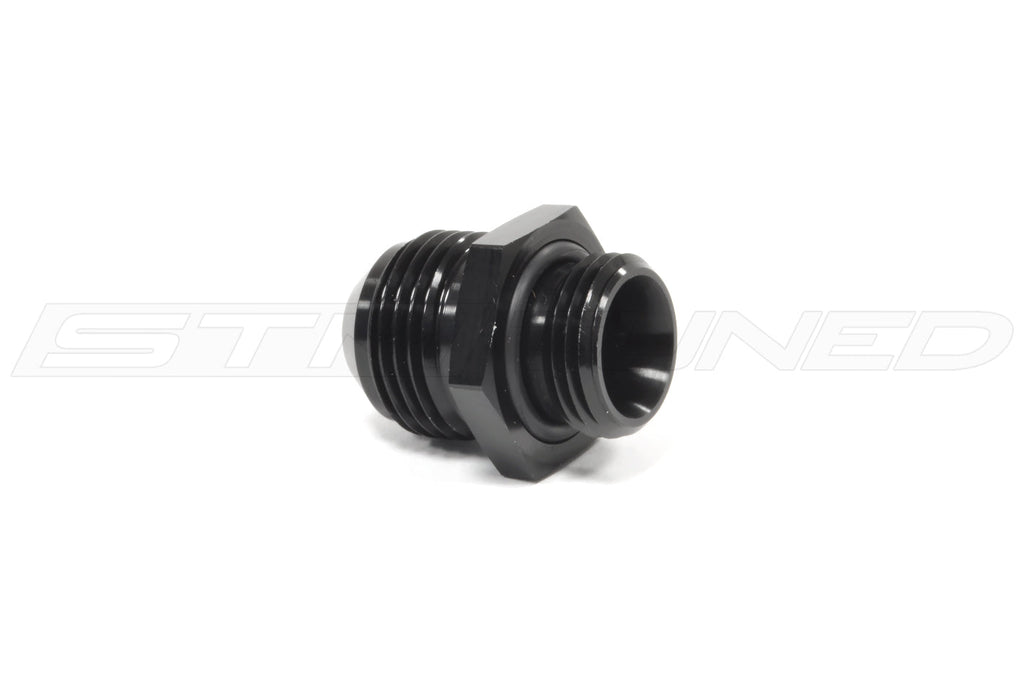

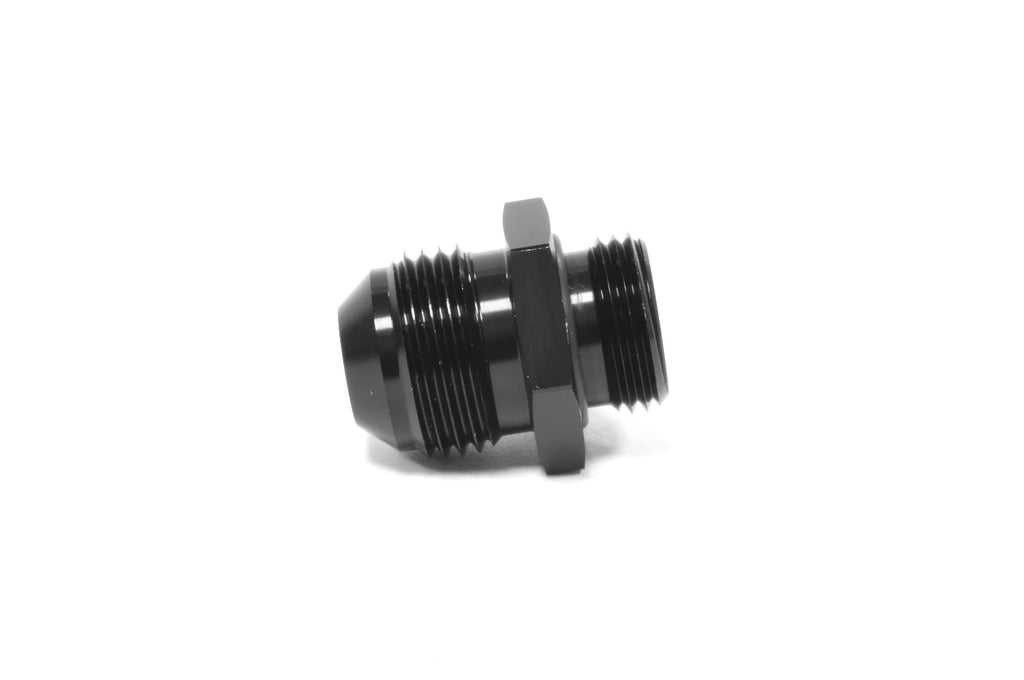

HPT Turbo Inverted Oil Drain Fitting for F2 (8ORB)
8ORB to -8AN (ODF-F2-8AN)
$9.99
Skip to product information
$9.99
Product Overview
The HPT Turbo Inverted Oil Drain Fitting is a specialized component designed for F2 Series HPT turbos. It replaces conventional flange-based connections with a direct, o-ring-seated interface that attaches to -8AN or -10AN oil drain lines.
Key Features
- Designed for direct connection to -8AN or -10AN oil drain lines
- Eliminates the need for traditional flanges, gaskets, and bolts
- Does not fit F2.5 models; requires separate 10ORB fitting
- Available in both -8AN and -10AN configurations
- Includes one (1) fitting per variant
Specifications
| Turbo Fitment | F2 Series HPT Turbos with 8ORB tapped bearing housings |
|---|---|
| Connection Type | Inverted 8ORB to -8AN or -10AN |
| O-ring Mount | Seated in groove on fitting |
| Part Number | ODF-F2-8AN |
| Housing ORB | 8ORB |
| Line Size (to) | -8AN |
| Line Size (to) | -10AN |
| Variant | ODF-F2-8AN or ODF-F2-10AN |
Available Configurations
| Part Number | Configuration |
|---|---|
| HPT-ODF-F2-8AN | 8ORB to -8AN (ODF-F2-8AN) |
| HPT-ODF-F2-10AN | 8ORB to -10AN (ODF-F2-10AN) |
What's Included
- 1 x Fitting
