Product Overview

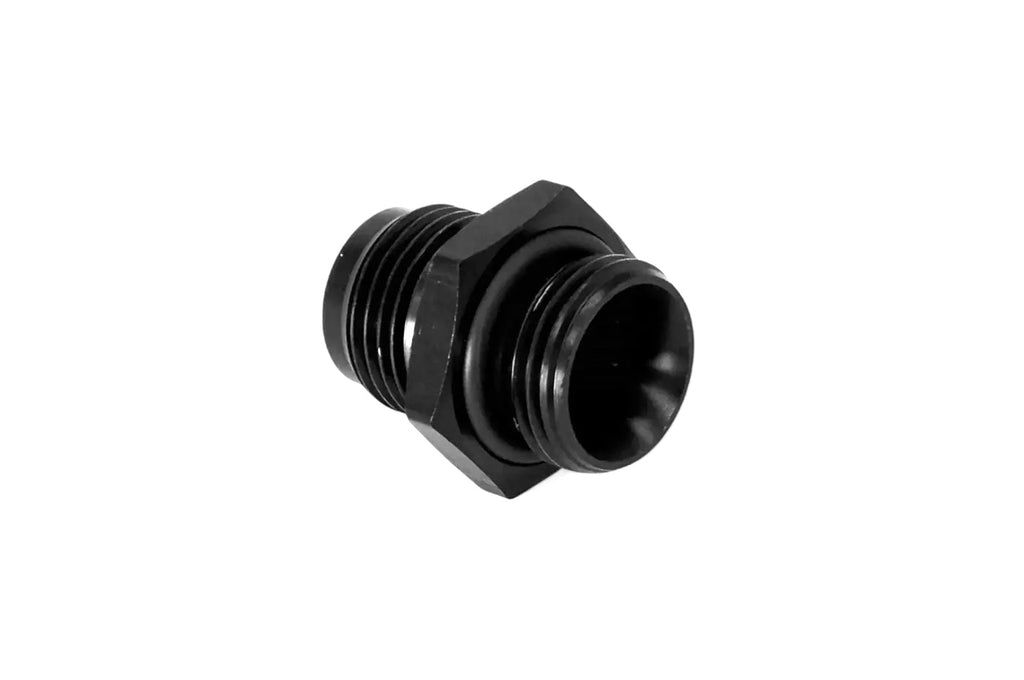

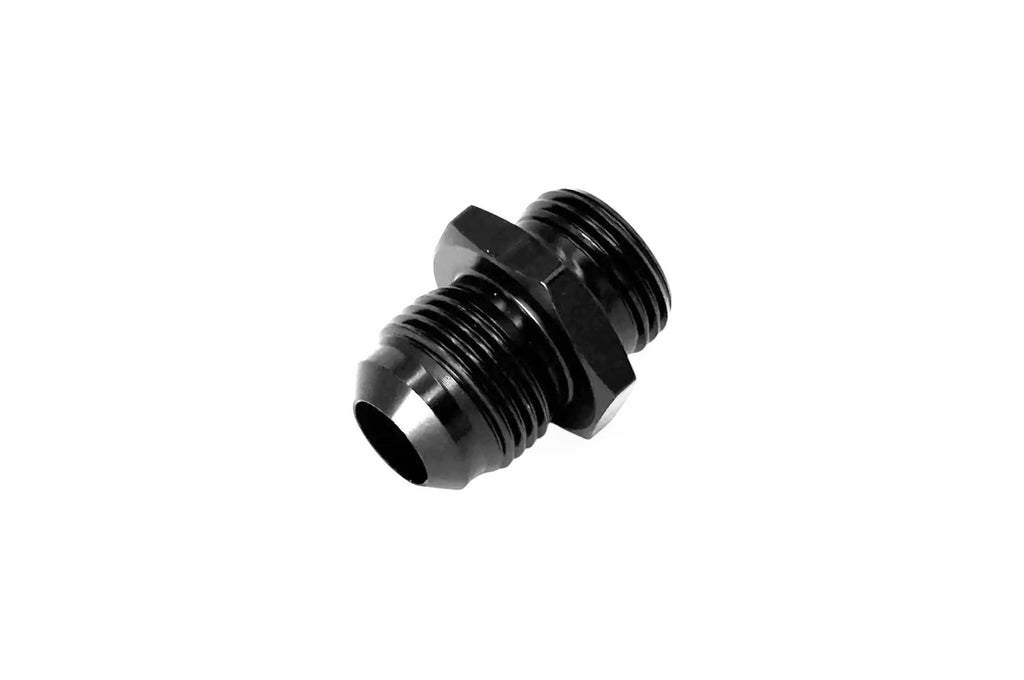

The HPT Turbo Inverted Oil Drain Fitting is a specialized component for F2.5, F3, and F4 Series HPT turbos. It replaces traditional flange and gasket assemblies by using an inverted 10ORB design where the o-ring sits in a groove on the fitting.

This fitting enables a direct, secure connection to a -10AN oil drain line, streamlining installation and reducing the need for additional hardware.

Key Features

• Designed for HPT turbos with 10ORB tapped bearing housings
• Inverted 10ORB fitting allows o-ring to sit in a groove for secure attachment
• Direct connection to -10AN oil drain lines without flange, gasket, or bolts
• Reduces assembly complexity with simplified oil drain line mounting

Specifications

Applications

• F2.5 Series HPT Turbos
• F3 Series HPT Turbos
• F4 Series HPT Turbos

What's Included

• 1 x Inverted Oil Drain Fitting
