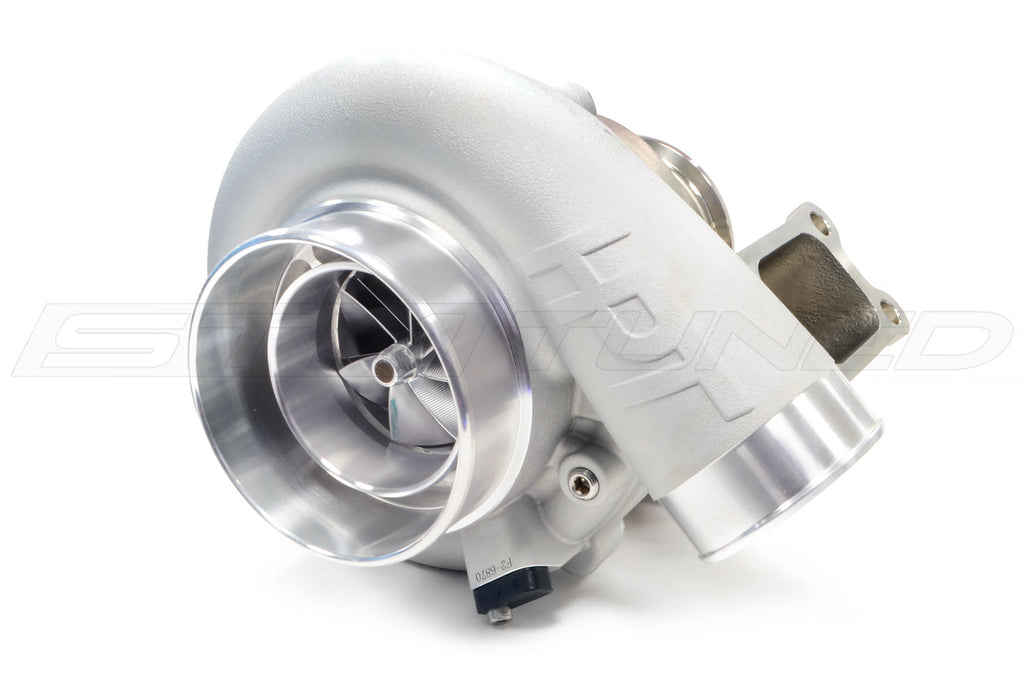

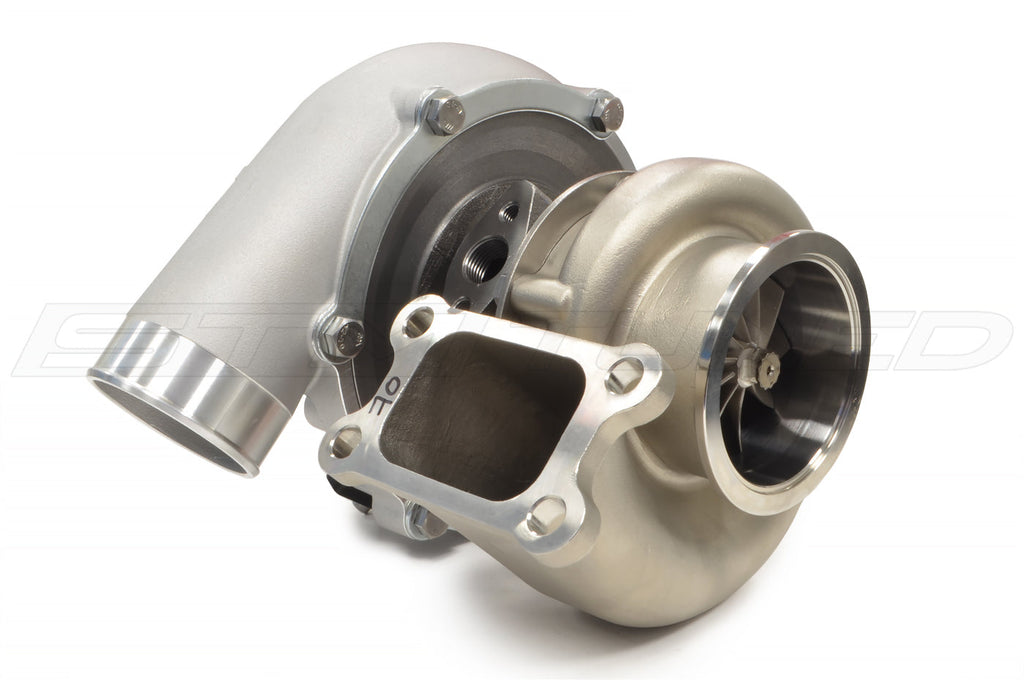

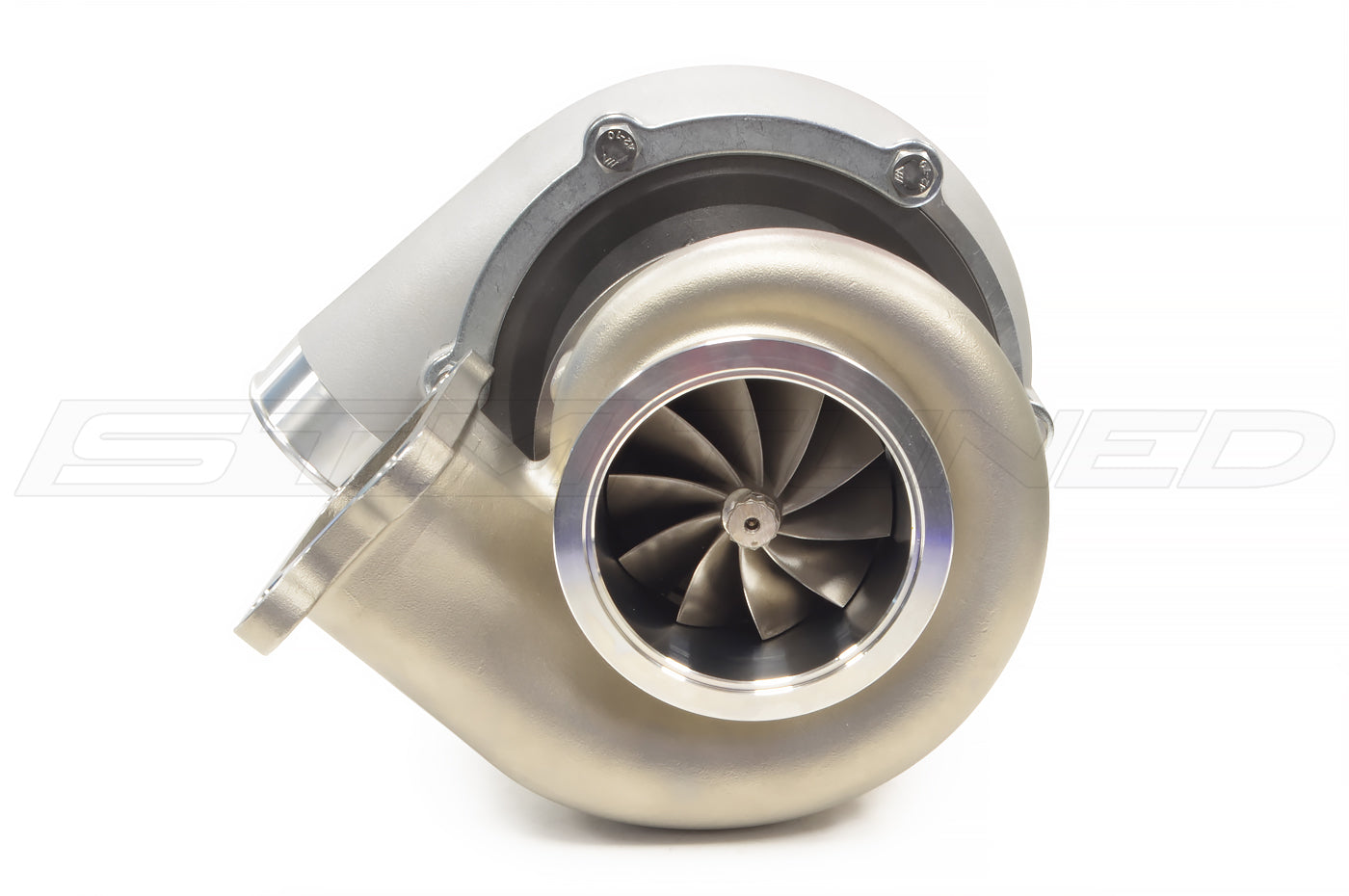

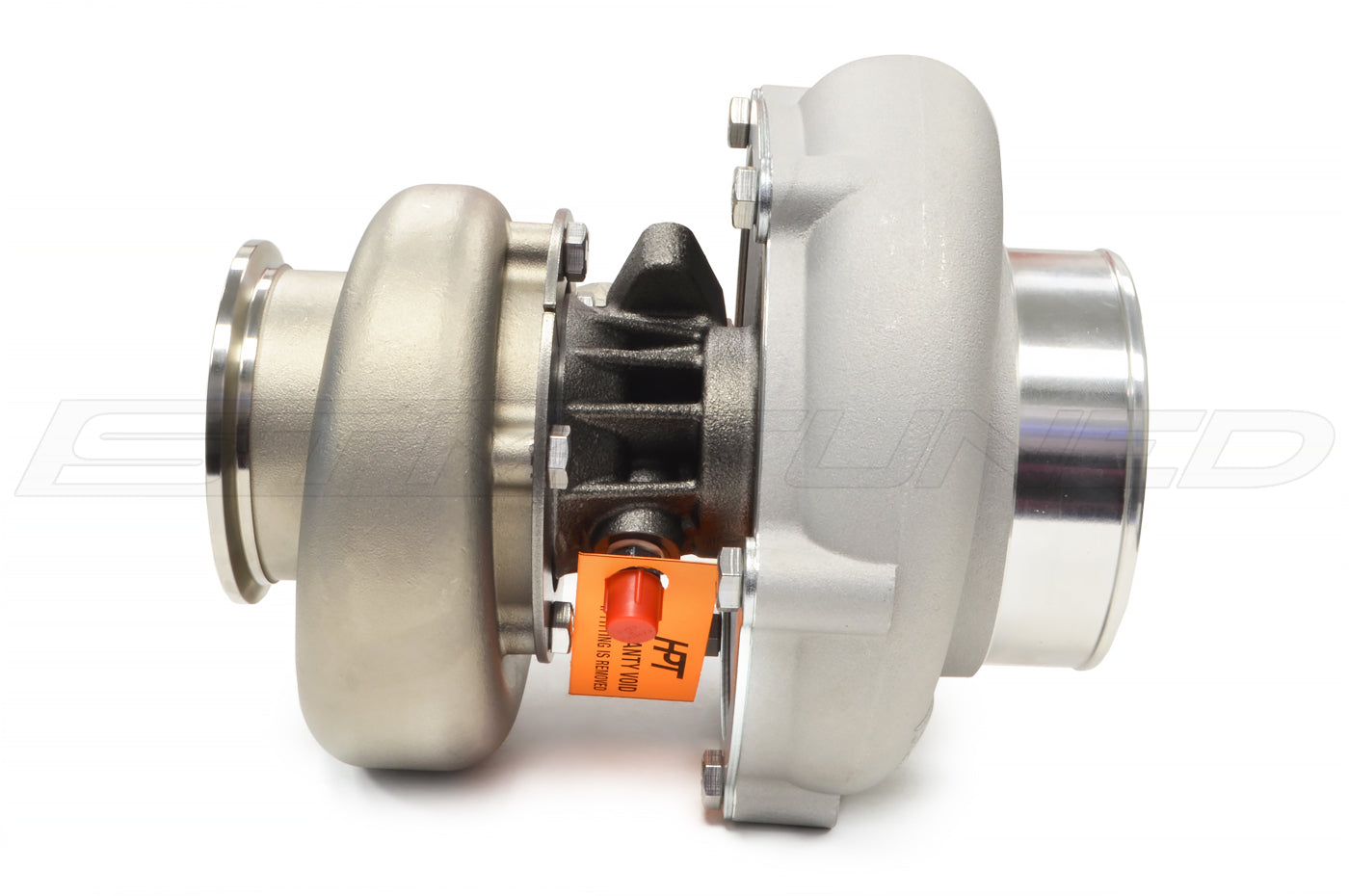

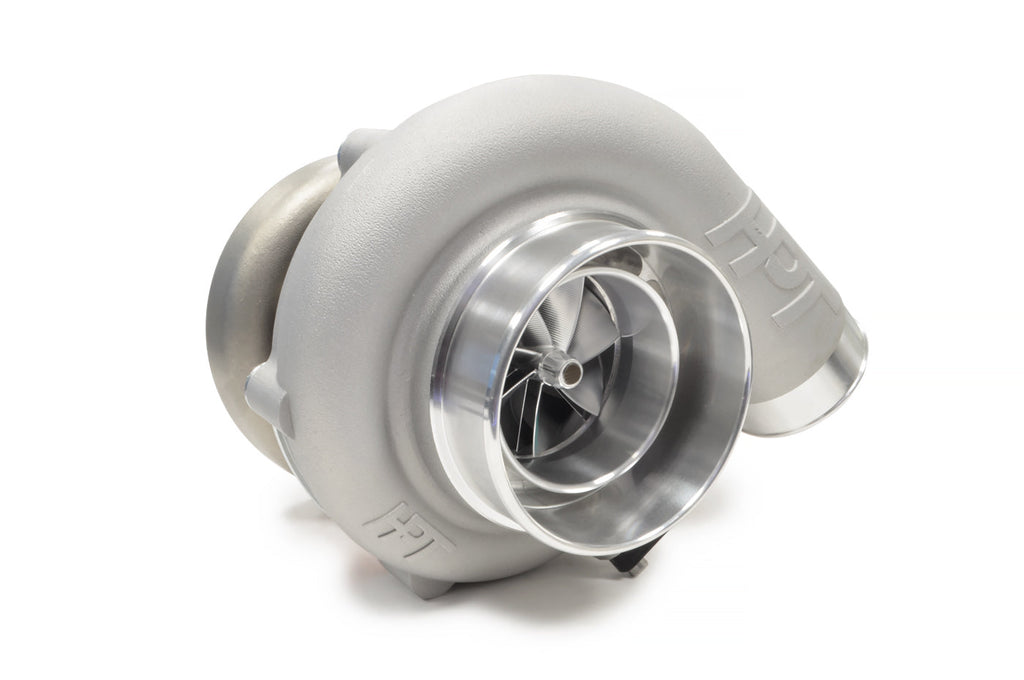

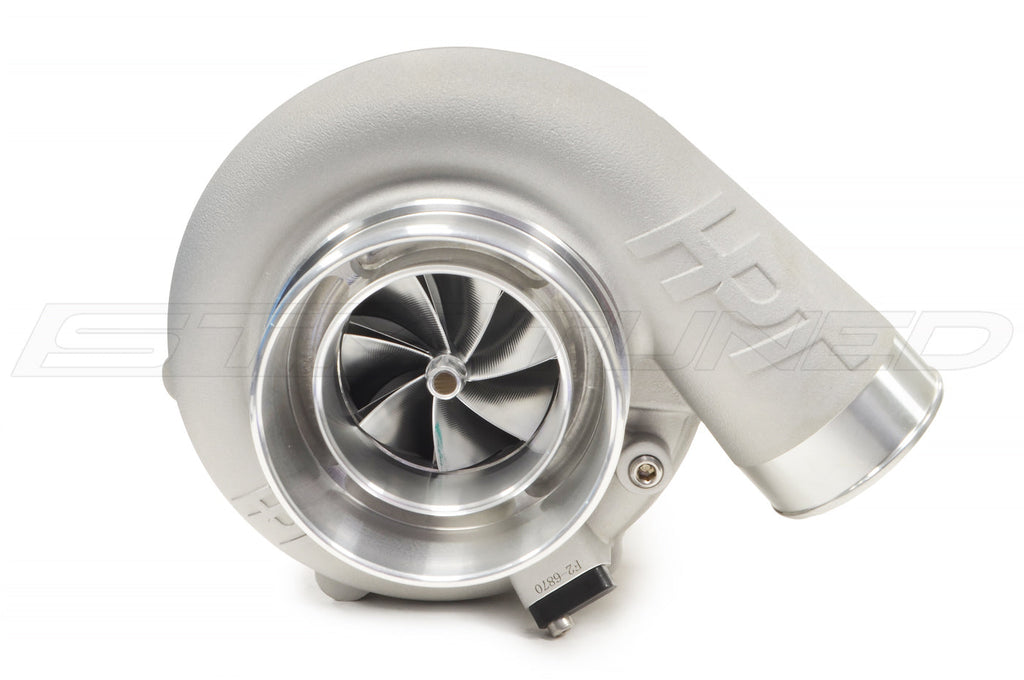

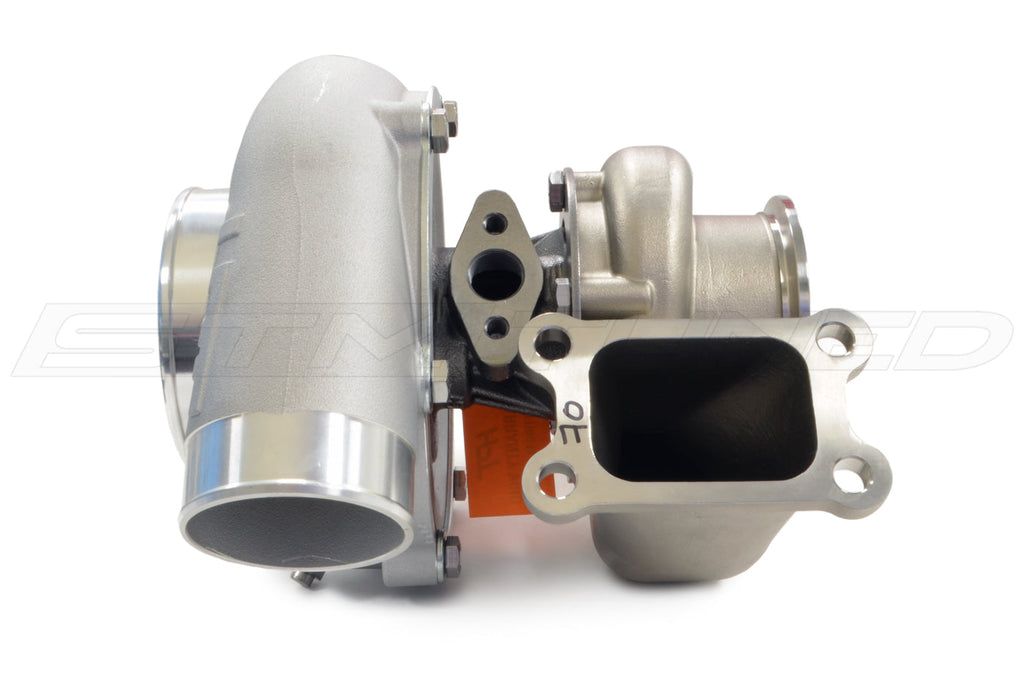

HPT F2 6870 Turbo (1150 HP)
T3 In / VB Out 1.10 A/R (F2-6870-110T3S)
$2,205.95
Skip to product information
$2,205.95
Product Overview
The turbo combines a lightweight compressor group with optimized airflow and a ceramic dual ball bearing system to deliver efficient spooling and reduced rotational resistance, allowing for larger turbine sizes without sacrificing responsiveness.
Key Features
- Includes a ceramic dual ball bearing system for reduced friction and improved efficiency
- Constructed with a cast iron bearing housing and integrated back plate for structural integrity
- Turbine housing made from 310 investment cast stainless steel for corrosion resistance
- Built-in -4AN oil inlet feed fitting; not to be removed
- Tapped for 8 ORB oil drain fittings with optional inverted oil drain fittings
- Available in multiple inlet and outlet configurations including T3, T4, and VB options
Specifications
| Max HP | 1150 |
|---|---|
| Inducer Diameter | 4" |
| Exducer Diameter | 2.5" |
| Turbine Wheel (TW) | 78.6 mm |
| Turbine Housing (TH) | 310 Investment Cast Stainless Steel |
| Inlet Flange | T3 or VB |
| Outlet Flange | V-Band |
| A/R Ratio | 1.10 |
| Oil Inlet | -4AN |
| Oil Drain | 8ORB |
| Bearing System | Ceramic Dual Ball |
| Bearing Housing | Cast Iron with Integrated Back Plate |
Available Configurations
| Part Number | Configuration |
|---|---|
| HPT-F2-6870-110T3S | T3 In / VB Out 1.10 A/R (F2-6870-110T3S) |
| HPT-F2-6870-82T4S | T4 In / VB Out 0.82 A/R (F2-6870-82T4S) |
| HPT-F2-6870-82T4S-RR | T4 In / VB Out 0.82 A/R (F2-6870-82T4S-RR) Reverse Rotation |
| HPT-F2-6870-96T4S | T4 In / VB Out 0.96 A/R (F2-6870-96T4S) |
| HPT-F2-6870-84T4DS | T4 Divided In / VB Out 0.84 A/R (F2-6870-84T4DS) |
| HPT-F2-6870-100T4DS | T4 Divided In / VB Out 1.00 A/R (F2-6870-100T4DS) |
| HPT-F2-6870-118T4DS | T4 Divided In / VB Out 1.18 A/R (F2-6870-118T4DS) |
| HPT-F2-6870-96VS | VB 3.00" In / VB Out 0.96 A/R (F2-6870-96VS) |
| HPT-F2-6870-107VS | VB 2.25" In / VB Out 1.07 A/R (F2-6870-107VS) |
| HPT-F2-6870-107VS-RR | VB 2.25" In / VB Out 1.07 A/R (F2-6870-107VS-RR) Reverse Rotation |
Applications
- Universal Application
What's Included

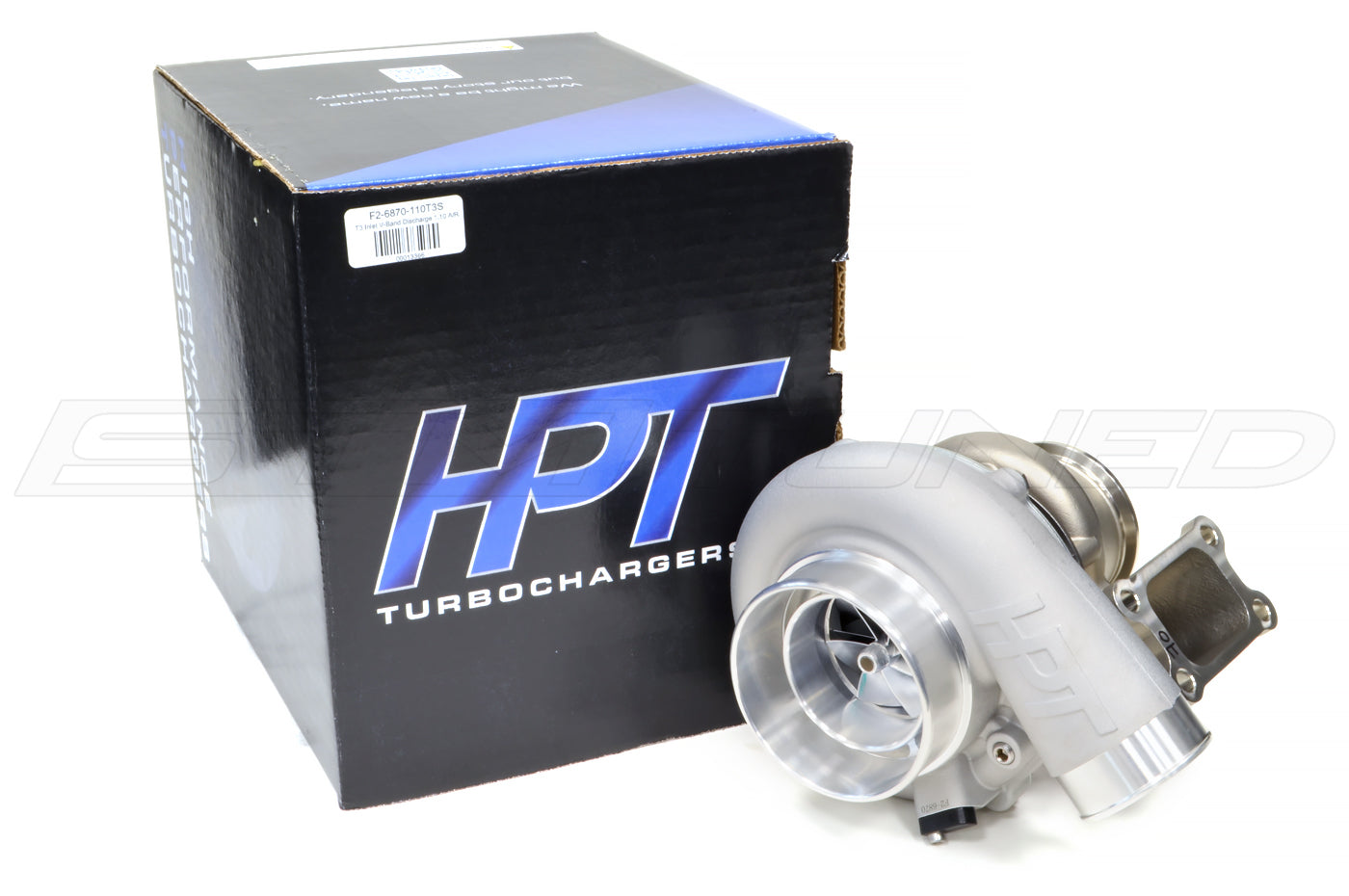

- HPT F2 6870 Turbocharger (with specified turbine housing and A/R ratio)
- F2 Oil Drain Fittings (8ORB)
- F2 Oil Feed Line Fitting (-4AN)
