Product Overview

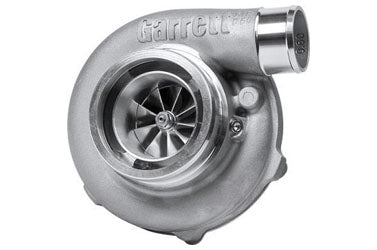

Garrett GTX3576R Gen II Standard Rotation (400-750 HP)

Verified Details

• 400 - 750
• 2.0L- 4.5L
• Turbine
• Inducer
• Trim
• GTX3576R Standard Rotation
• 76mm
• 0.60
• 62mm
• Features
• Sold as assembly kits (super core + turbine hsg) new reverse rotation configurations available
• The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
• A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance.
• The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
• Part number: GAR-851154-5003S
• Part number: GAR-856801-5048S
