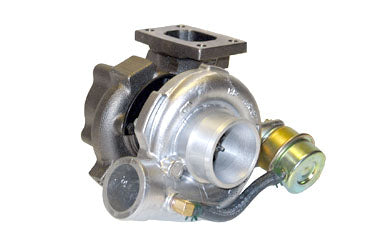

Garrett GT2252 (150-260 HP)
$1,120.77
Skip to product information
$1,120.77
Product Overview
Built on the proven GT Series platform, it features original aerodynamic compressor design and an internally wastegated turbine housing for consistent performance under load
Key Features
- Includes a complete turbo system with turbine kit and actuator
- Internally wastegated turbine housing for improved performance and efficiency
- Turbine available in open volute or twin scroll configurations
- Available in A/R ratio 60 and 72 with flange options
- Compressor wheel size 40mm, exducer 43mm
Specifications
| Horsepower | 150 - 260 |
|---|---|
| Displacement | 1.7L - 2.5L |
| Compressor Diameter | 40mm |
| Turbine Diameter | 52mm |
| Turbine A/R Ratio | 60 |
| Exducer Diameter | 43mm |
| Turbine Housing | Internally wastegated |
| Turbo PN | 452187-5006S |
| Inducer Diameter | 50mm |
| Trim | 0.51 |
| Flange Configuration | Available |
| Turbine Kit Type | Open volute or twin scroll |
| A/R Ratio | 72 |
What's Included
- Turbine kit
- Actuator
