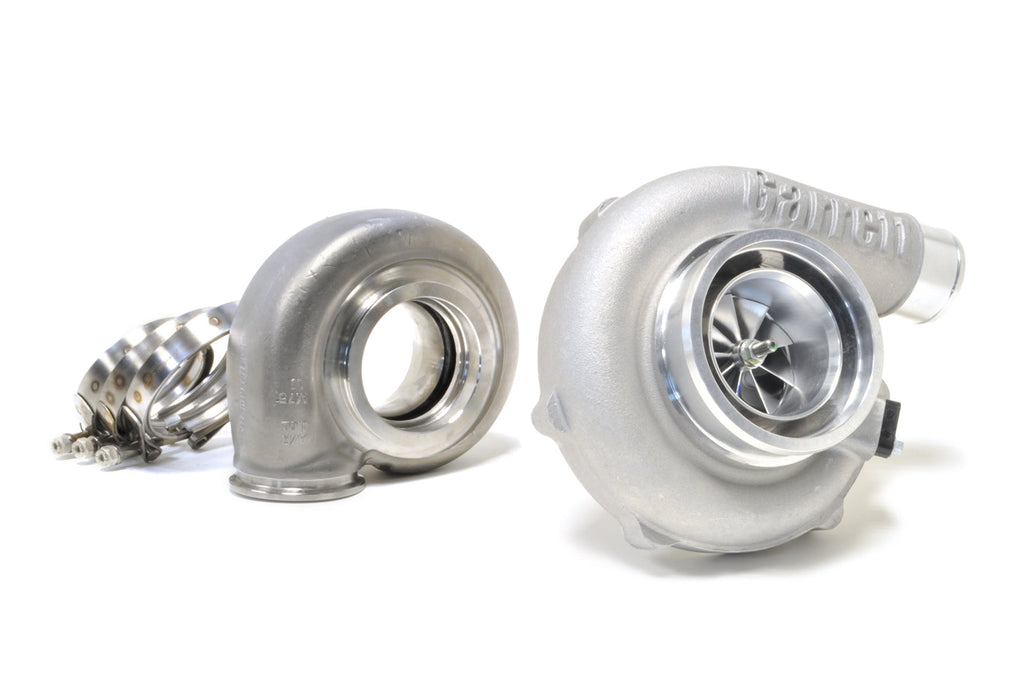

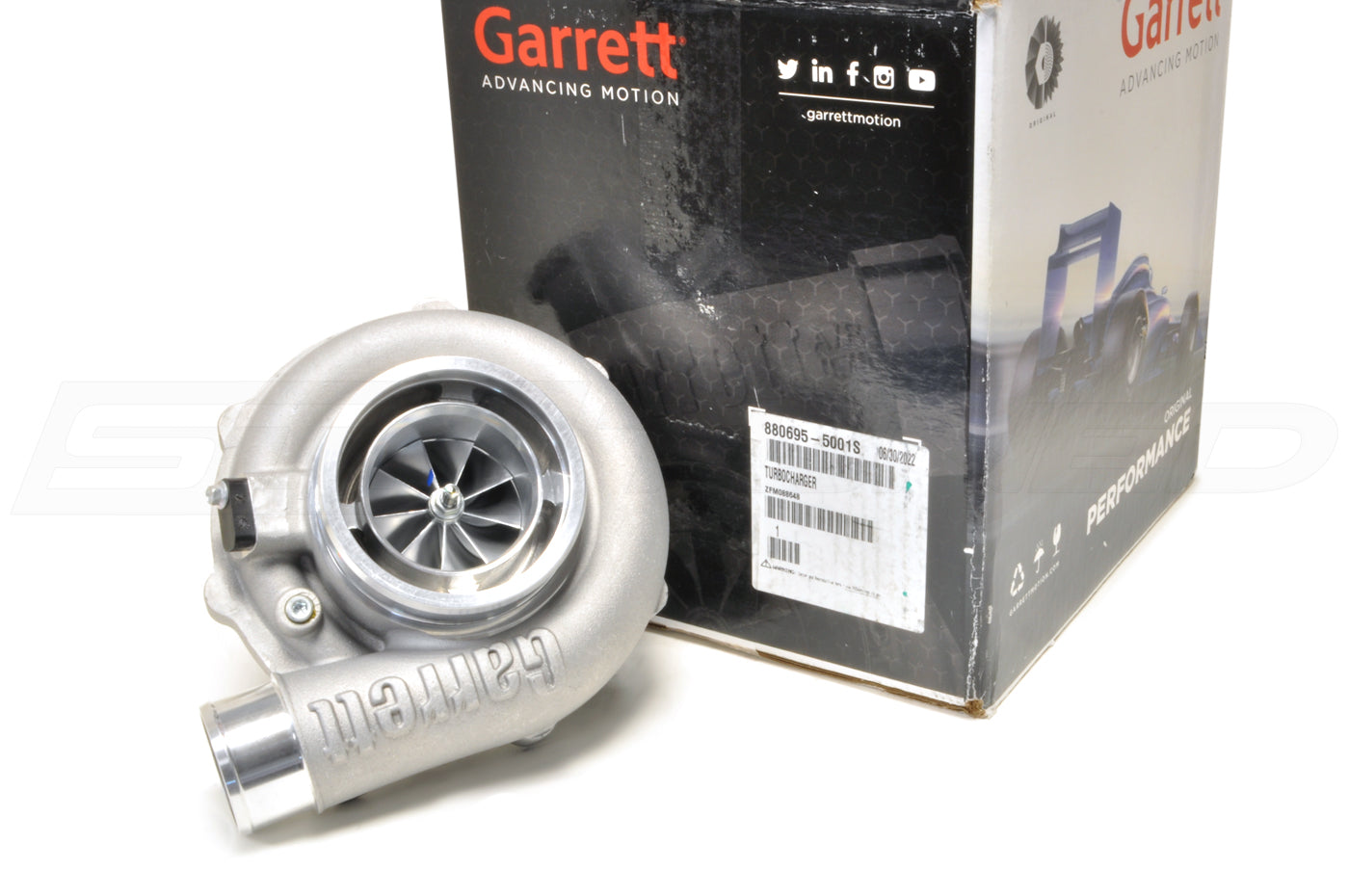

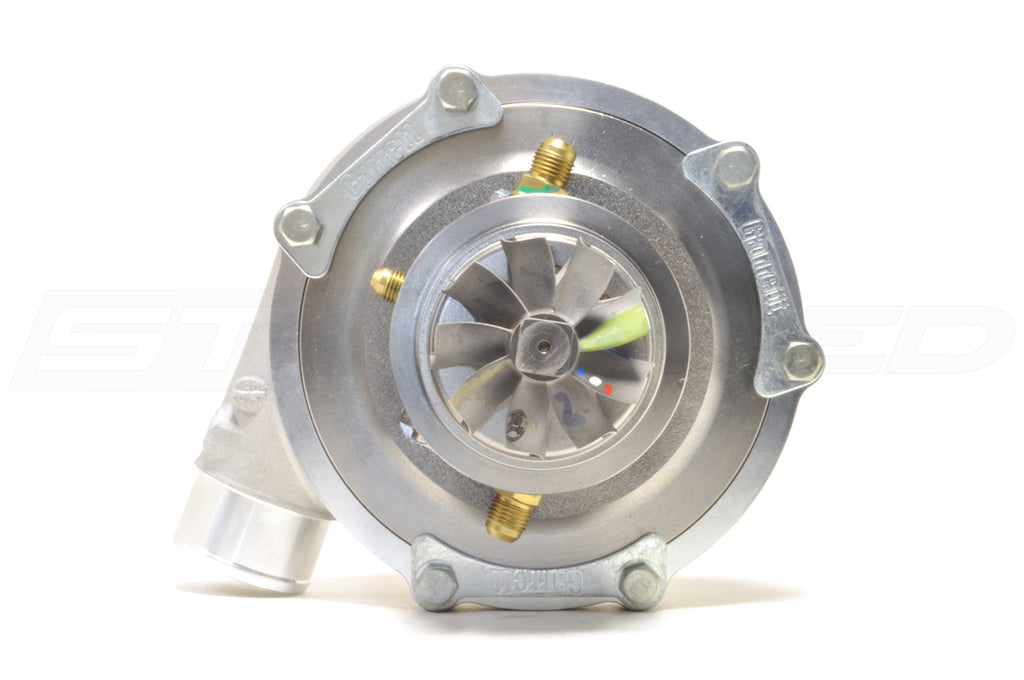

Garrett G-Series Turbo G35-900
Product Overview
The Garrett G-Series Turbo G35-900 is a high-performance turbocharger designed for use with external wastegates. It features a Mar-M super alloy turbine wheel capable of withstanding exhaust temperatures up to 1050°C, delivering improved flow and boost response over previous GTX models. The turbine housing is constructed from stainless steel for long-term durability and thermal resistance.

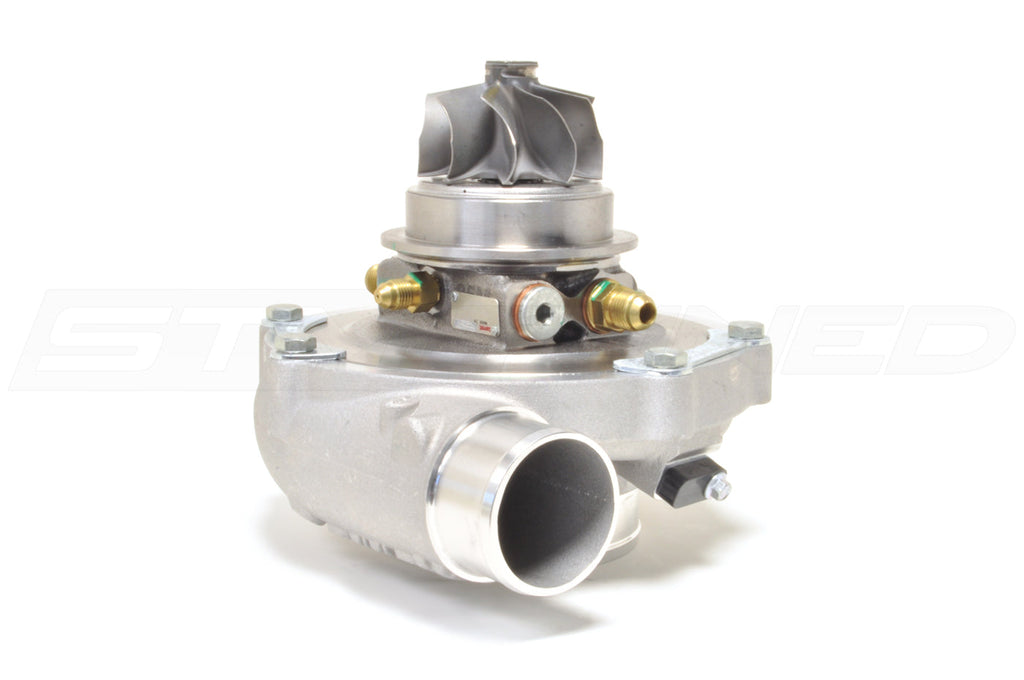

Available in both standard and reverse rotation configurations, the G35-900 offers multiple inlet and outlet options including T3, T4 divided, and V-band (VB) designs. Each housing includes matching flanges and clamps, with specific parts listed for each configuration. The complete turbo requires pairing a Supercore with a compatible housing kit for proper installation.
Key Features
- Turbine wheel made from Mar-M super alloy for strength and heat resistance up to 1050°C

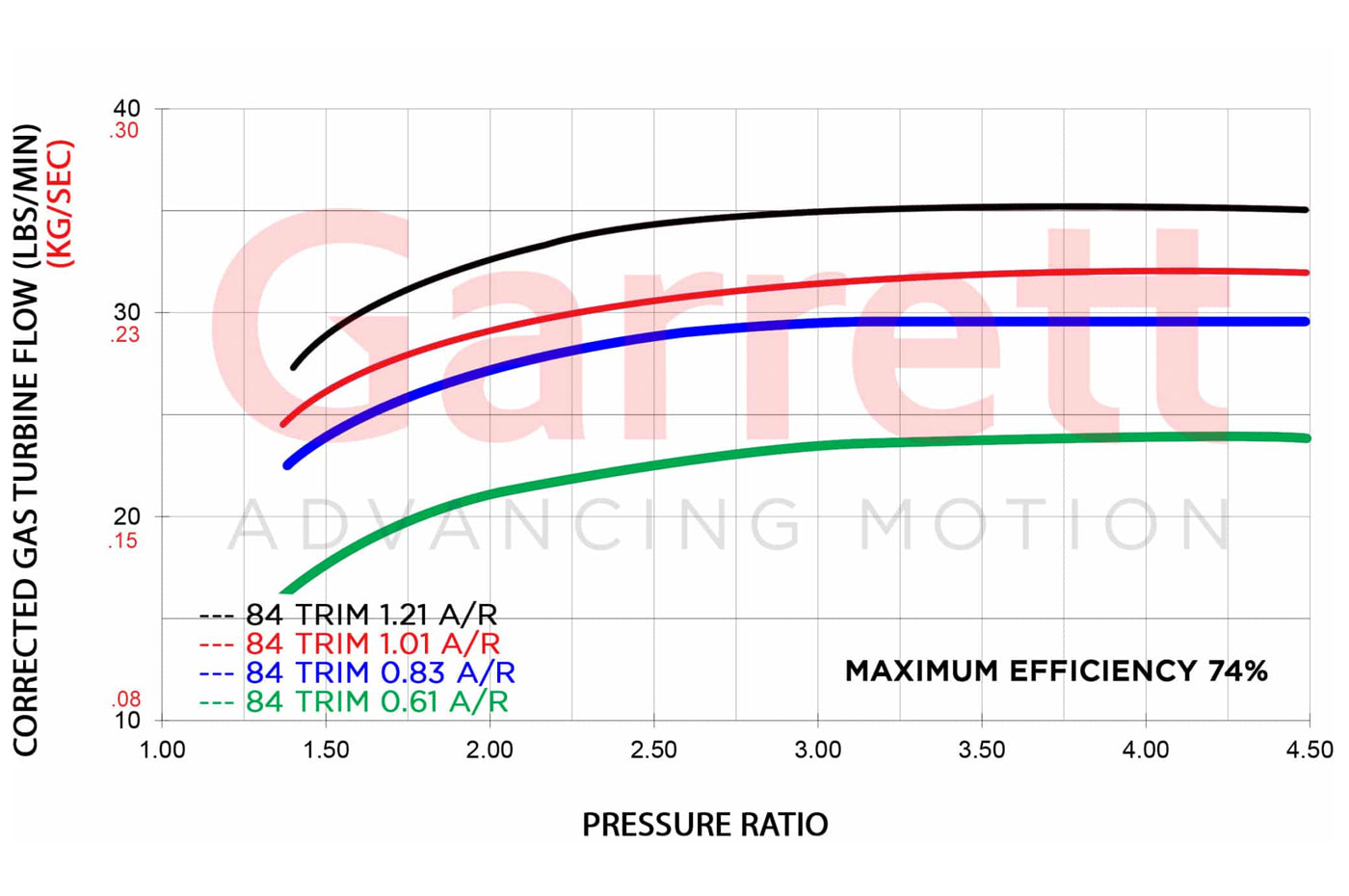

- New turbine design flows 15-20% more than GTX models with peak efficiency of 74%

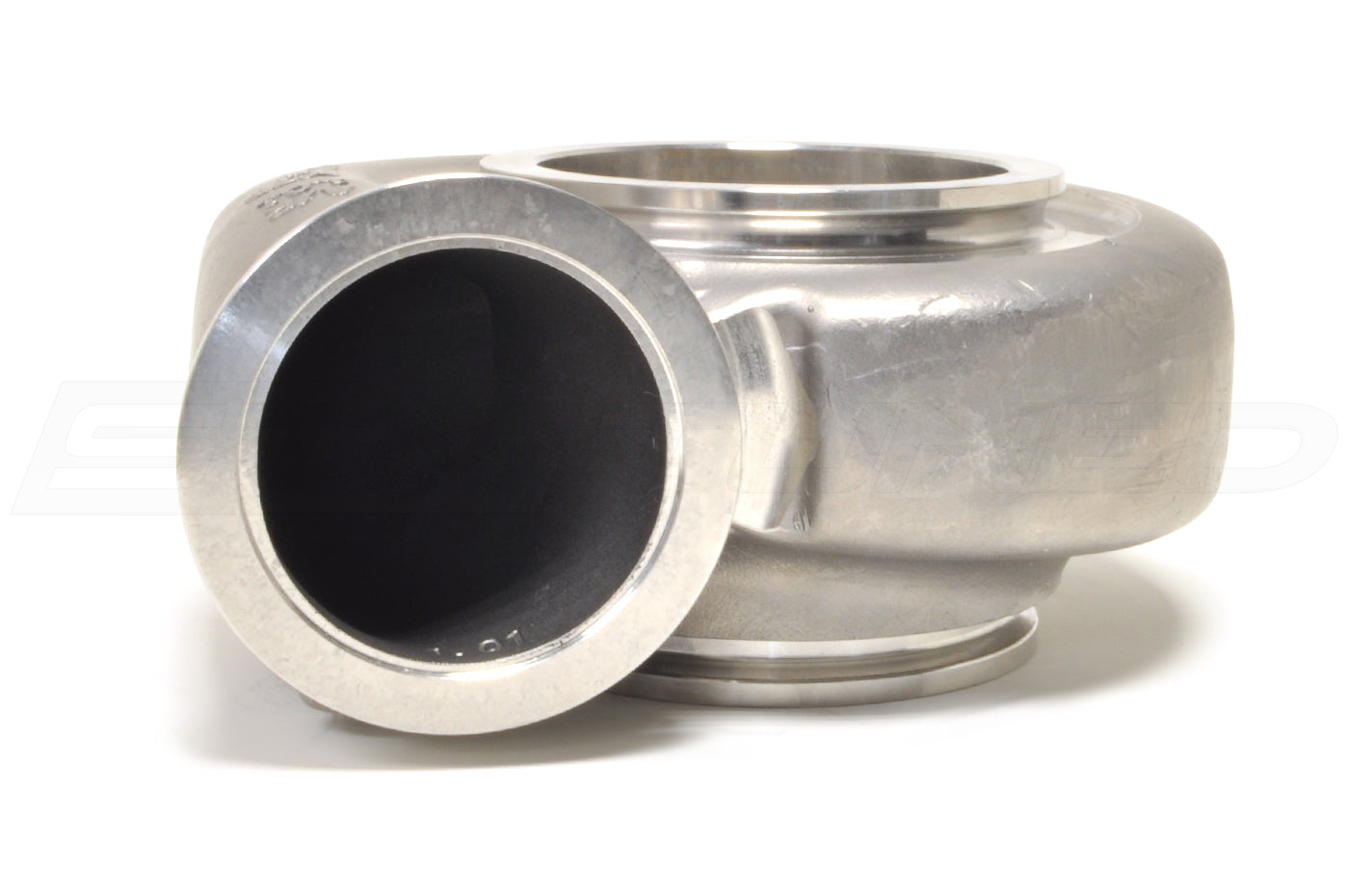

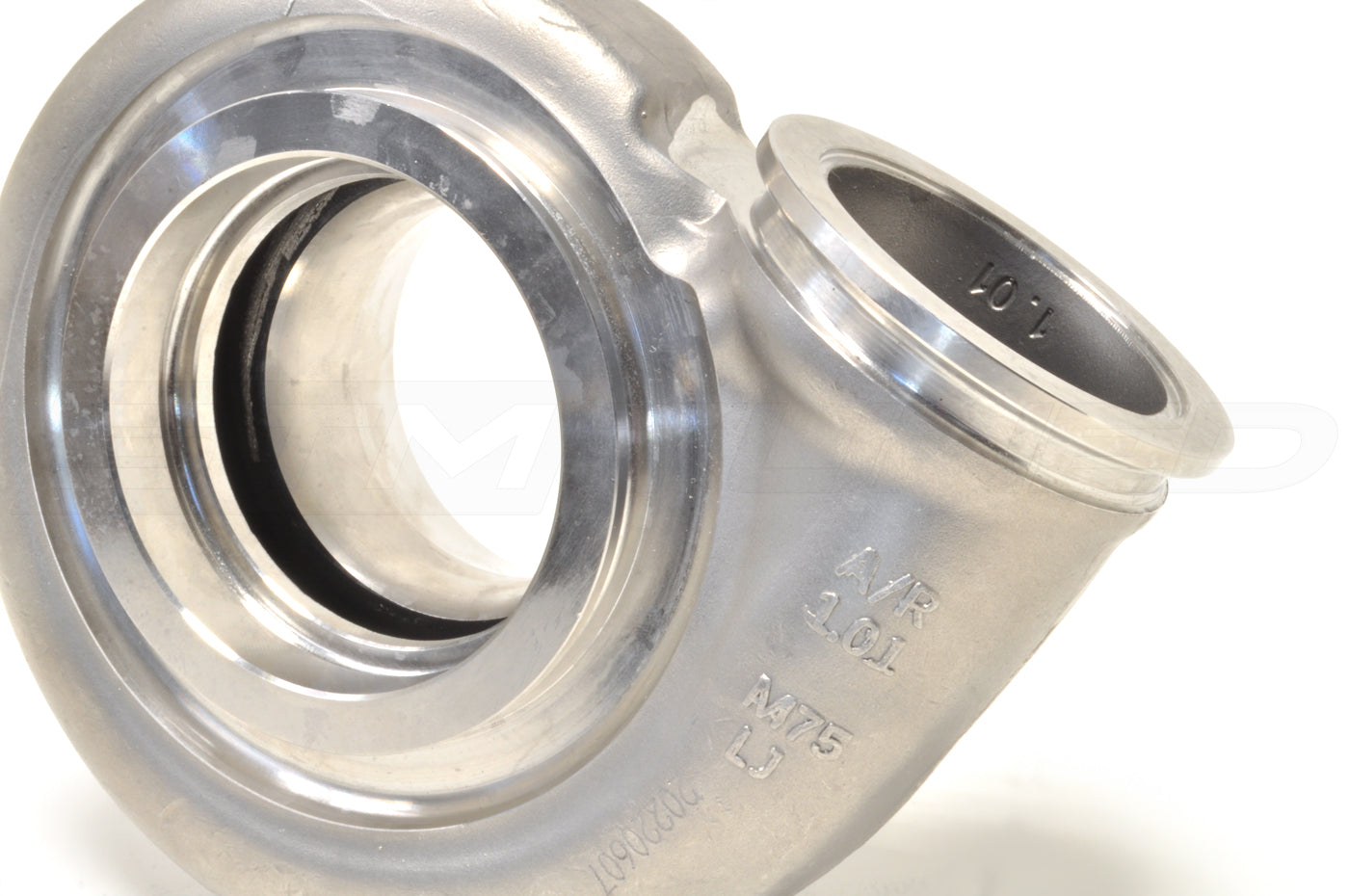

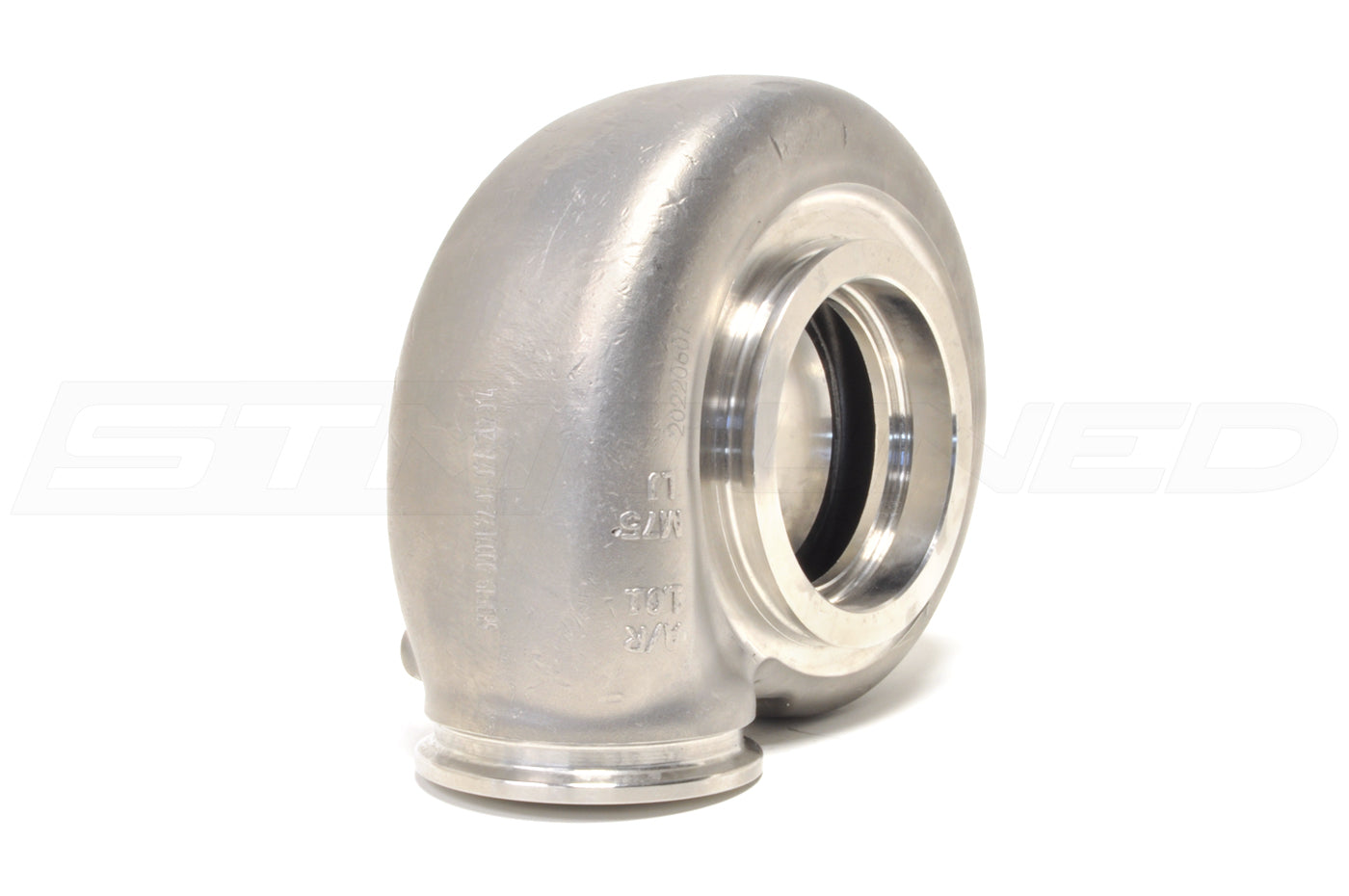

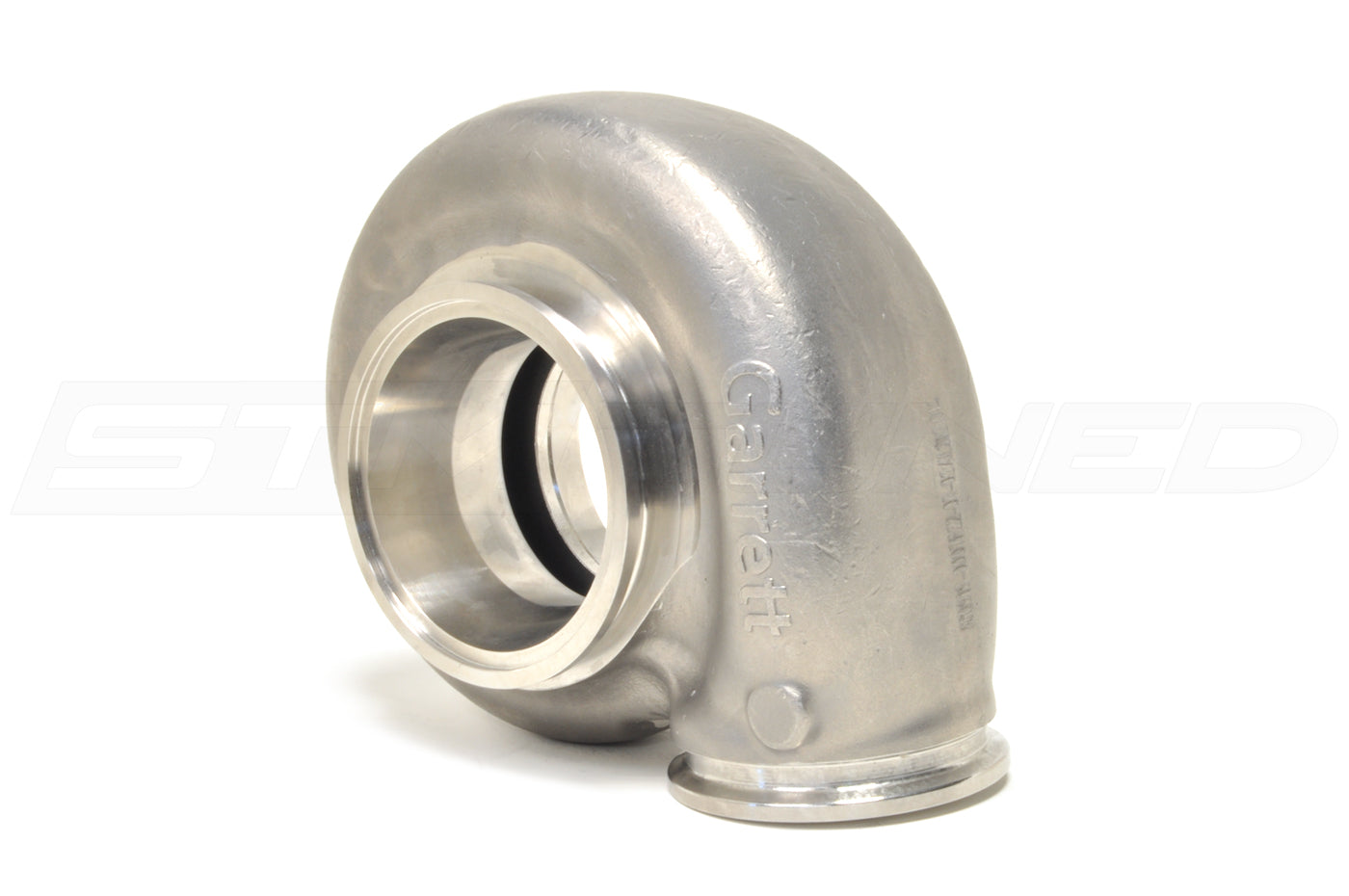

- Stainless steel turbine housings offer durability and temperature resistance up to 1050°C
- Available in T3 and T4 divided inlet configurations with matching flanges and gaskets

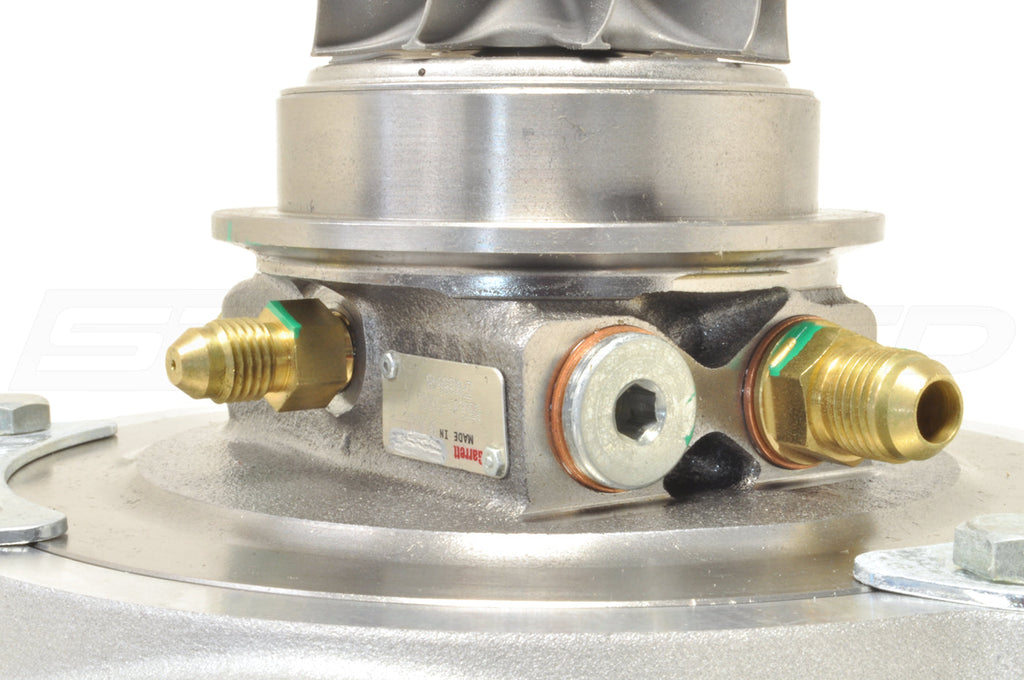

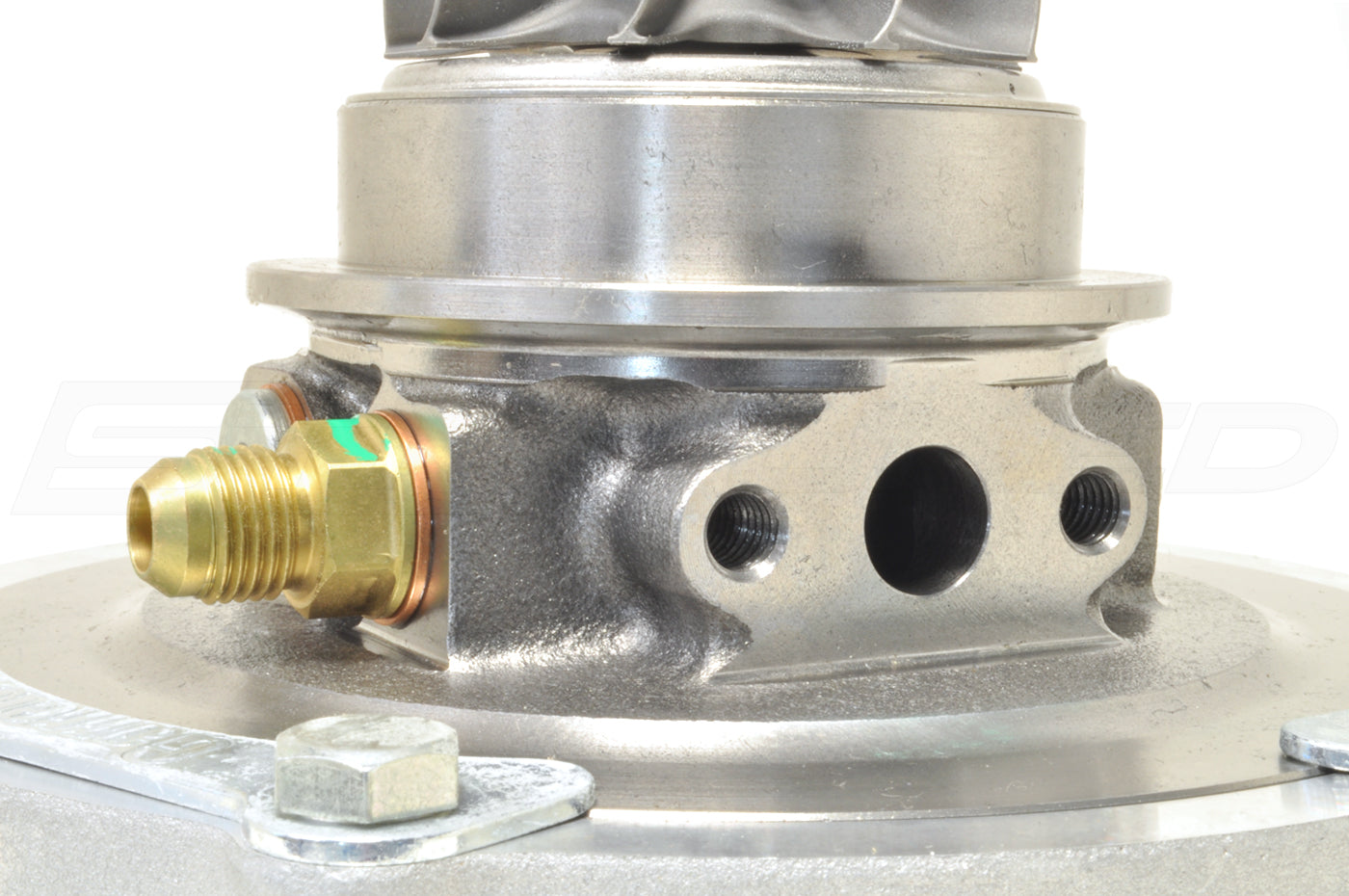

- Built-in oil restrictor with -4AN feed line and -6AN water fittings

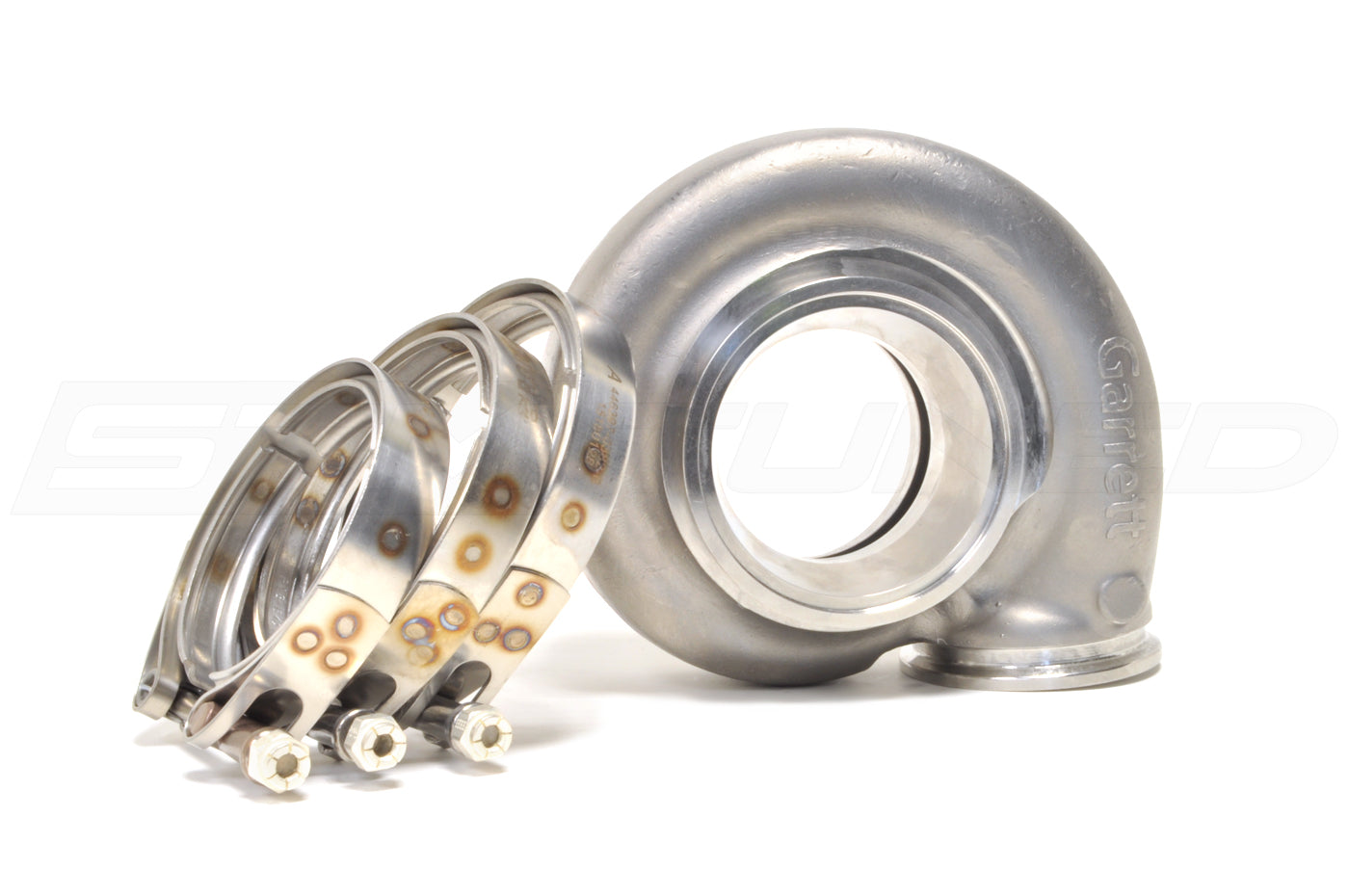

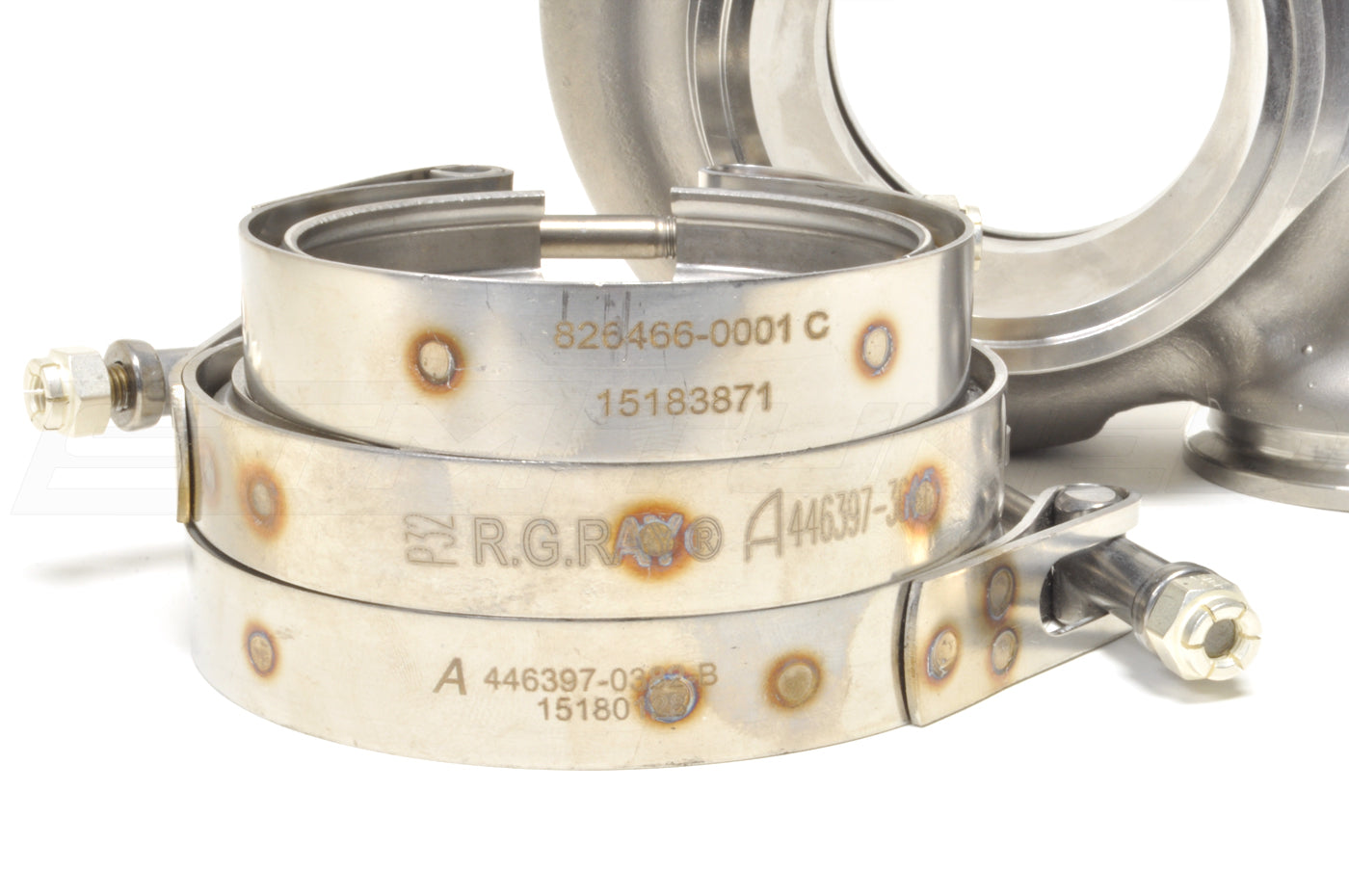

- V-band outlet clamps and flanges included for secure, leak-free installation
Specifications
| Turbine Material | Mar-M super alloy |
|---|---|
| Max Exhaust Temp Resistance | 1050°C |
| Turbine Efficiency | 74% |
| Flow Increase vs GTX | 15-20% |
| Oil Feed Fitting | -4AN |
| Water Fitting | -6AN |

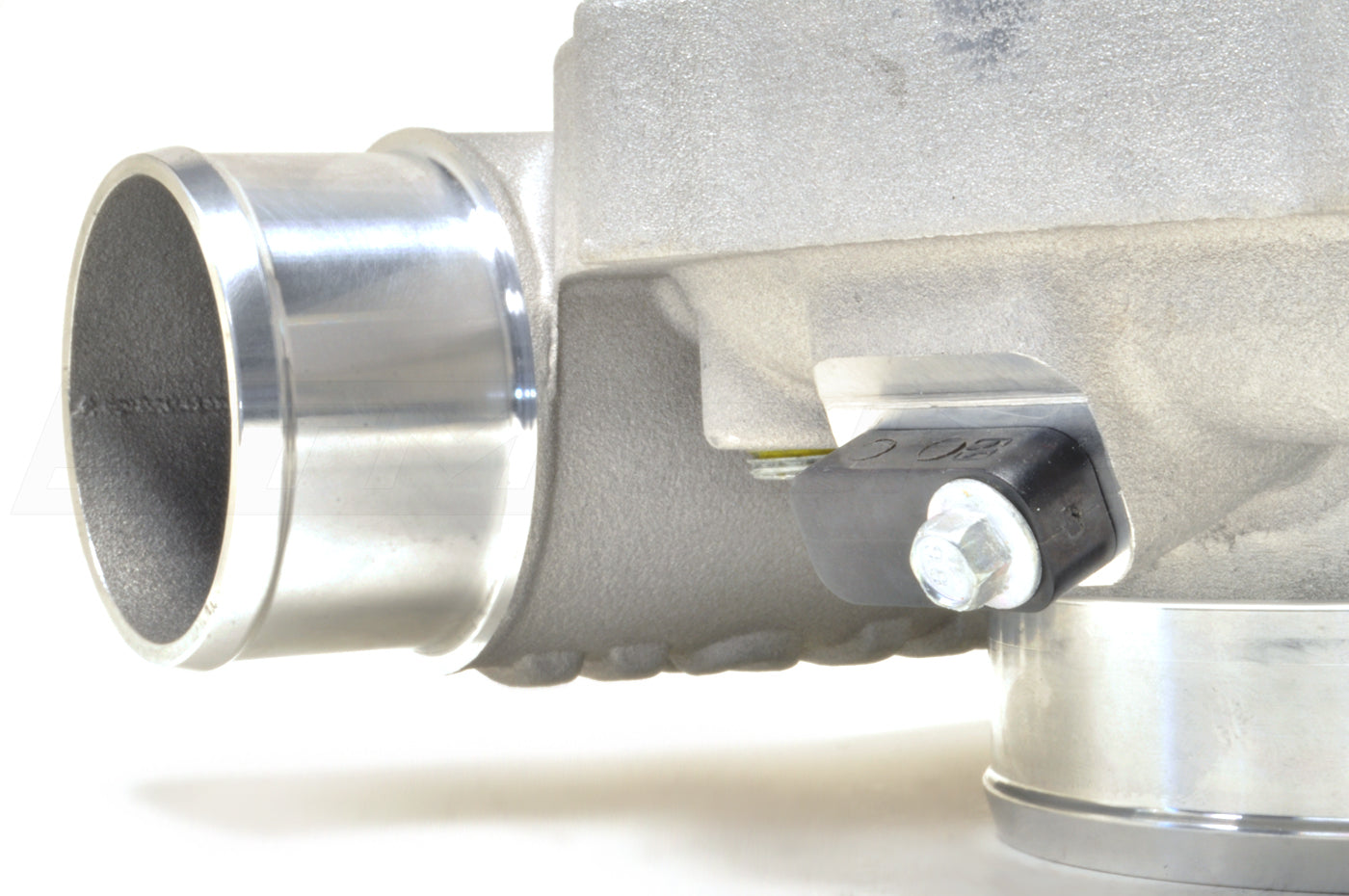

| Compressor Inlet | 4" coupler |
| Compressor Outlet | 2" coupler |
| Housing Configurations | T3, T4 divided, V-band (VB) |
| Supercore Weight | 11.00 pounds |
Available Configurations
| Part Number | Configuration |
|---|---|

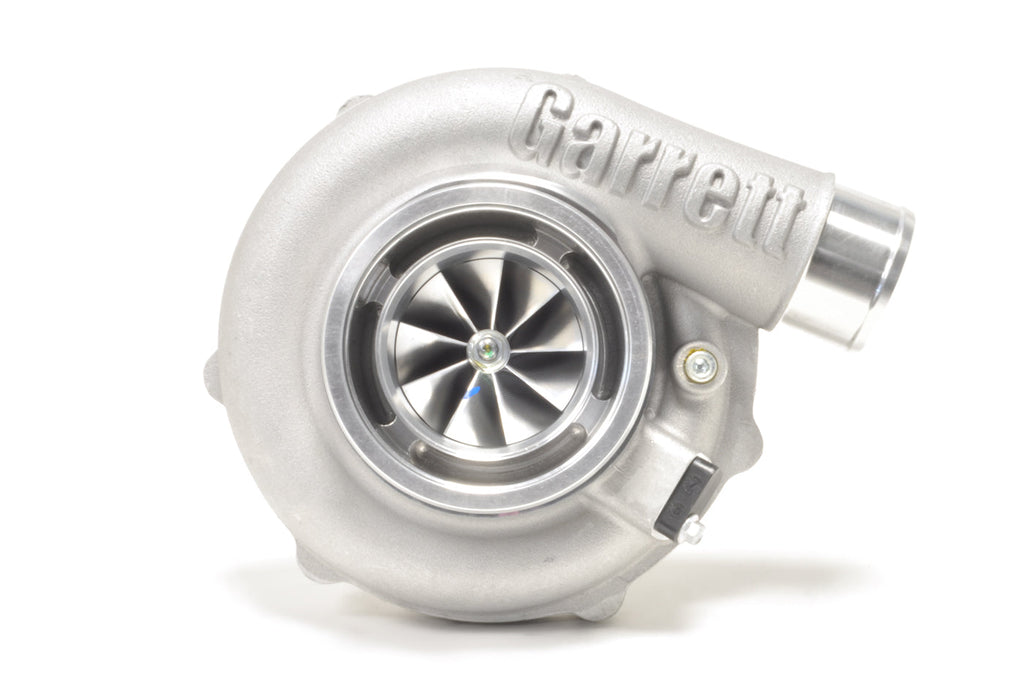

| GAR-880695-5001S | Supercore Standard Rotation (880695-5001S) |
| GAR-880696-5001S | Supercore Reverse Rotation (880696-5001S) |
| -- Standard Rotation Housings -- | |
| GAR-740902-0108 | Housing Kit Standard 1.06 T4/VB (740902-0108) |
| GAR-740902-0106 | Housing Kit Standard 0.83 T3/VB (740902-0106) |
| GAR-740902-0107 | Housing Kit Standard 1.01 T3/VB (740902-0107) |
| GAR-740902-0102 | Housing Kit Standard 0.61 VB/VB (740902-0102) |
| GAR-740902-0103 | Housing Kit Standard 0.83 VB/VB (740902-0103) |
| GAR-740902-0104 | Housing Kit Standard 1.01 VB/VB (740902-0104) |
| GAR-740902-0105 | Housing Kit Standard 1.21 VB/VB (740902-0105) |
| -- Reverse Rotation Housings -- | |
| GAR-740902-0116 | Housing Kit Reverse 0.83 T3/VB (740902-0116) |
| GAR-740902-0117 | Housing Kit Reverse 1.01 T3/VB (740902-0117) |
| GAR-740902-0112 | Housing Kit Reverse 0.61 VB/VB (740902-0112) |
| GAR-740902-0113 | Housing Kit Reverse 0.83 VB/VB (740902-0113) |
| GAR-740902-0114 | Housing Kit Reverse 1.01 VB/VB (740902-0114) |
| GAR-740902-0115 | Housing Kit Reverse 1.21 VB/VB (740902-0115) |
Applications
- Used with external wastegate systems
- Standard rotation and reverse rotation configurations available
- T3 and T4 divided turbine housing options
- V-band (VB) outlet configurations
- Performance tuning in high-boost engine environments
What's Included
- Supercore (880695-5001S or 880696-5001S)

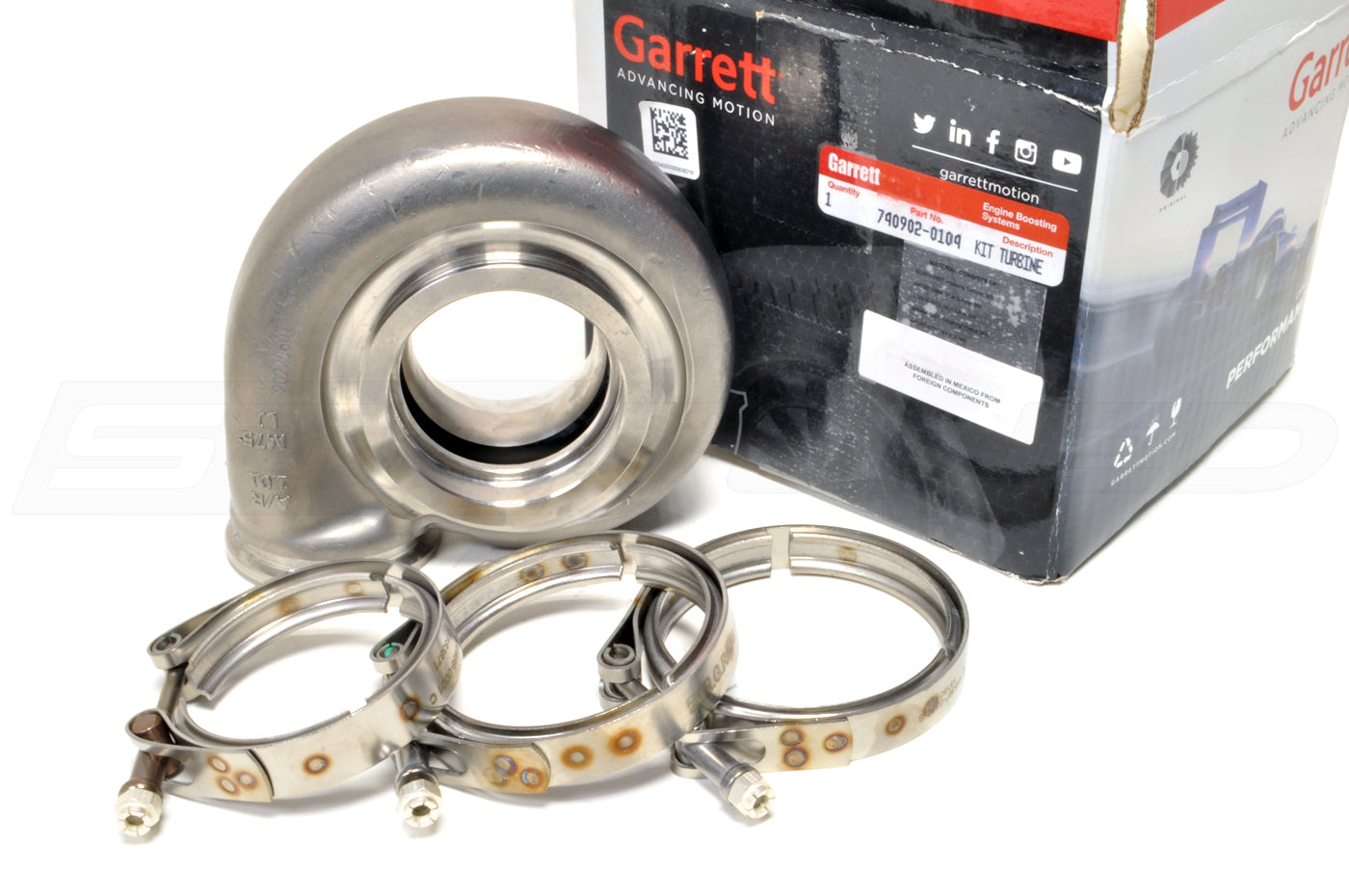

- Exhaust Housing Kit (with flanges, gaskets, and V-band clamps as specified)
