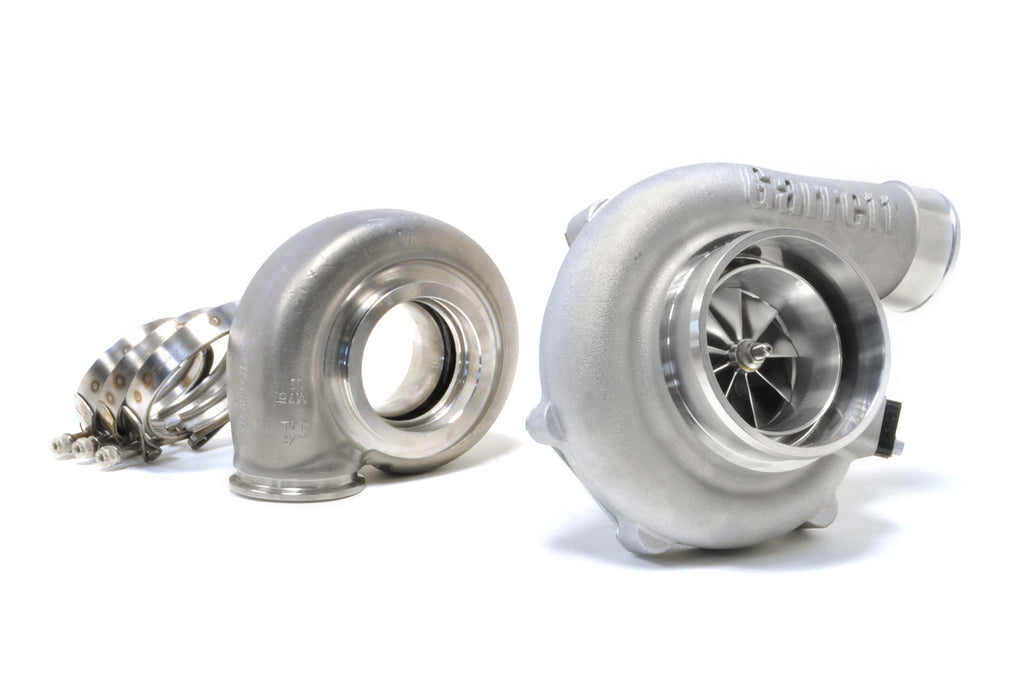

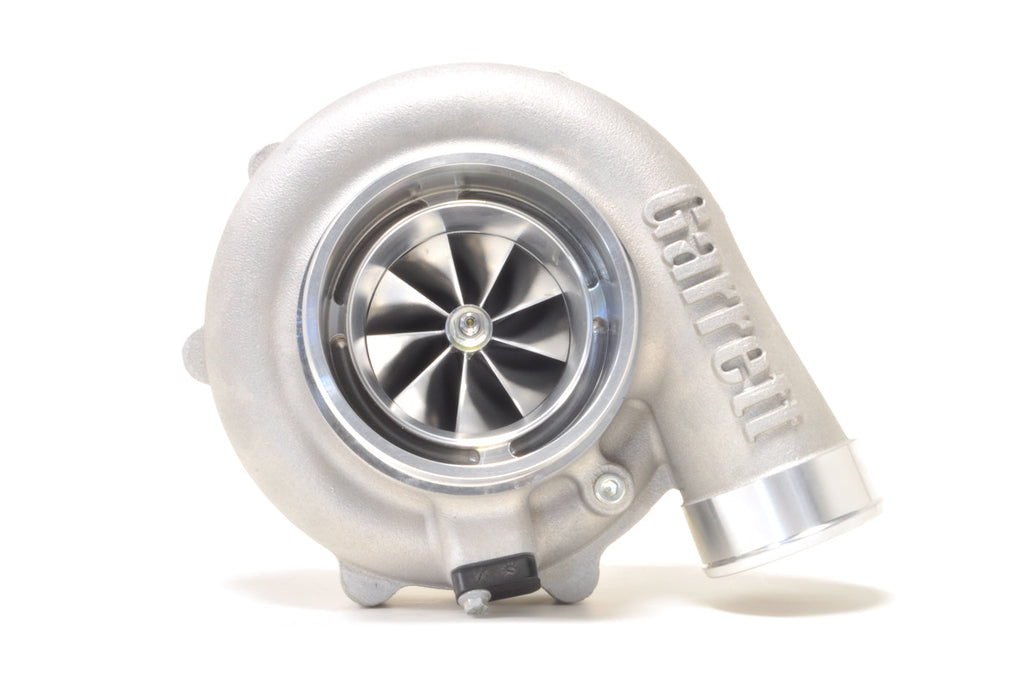

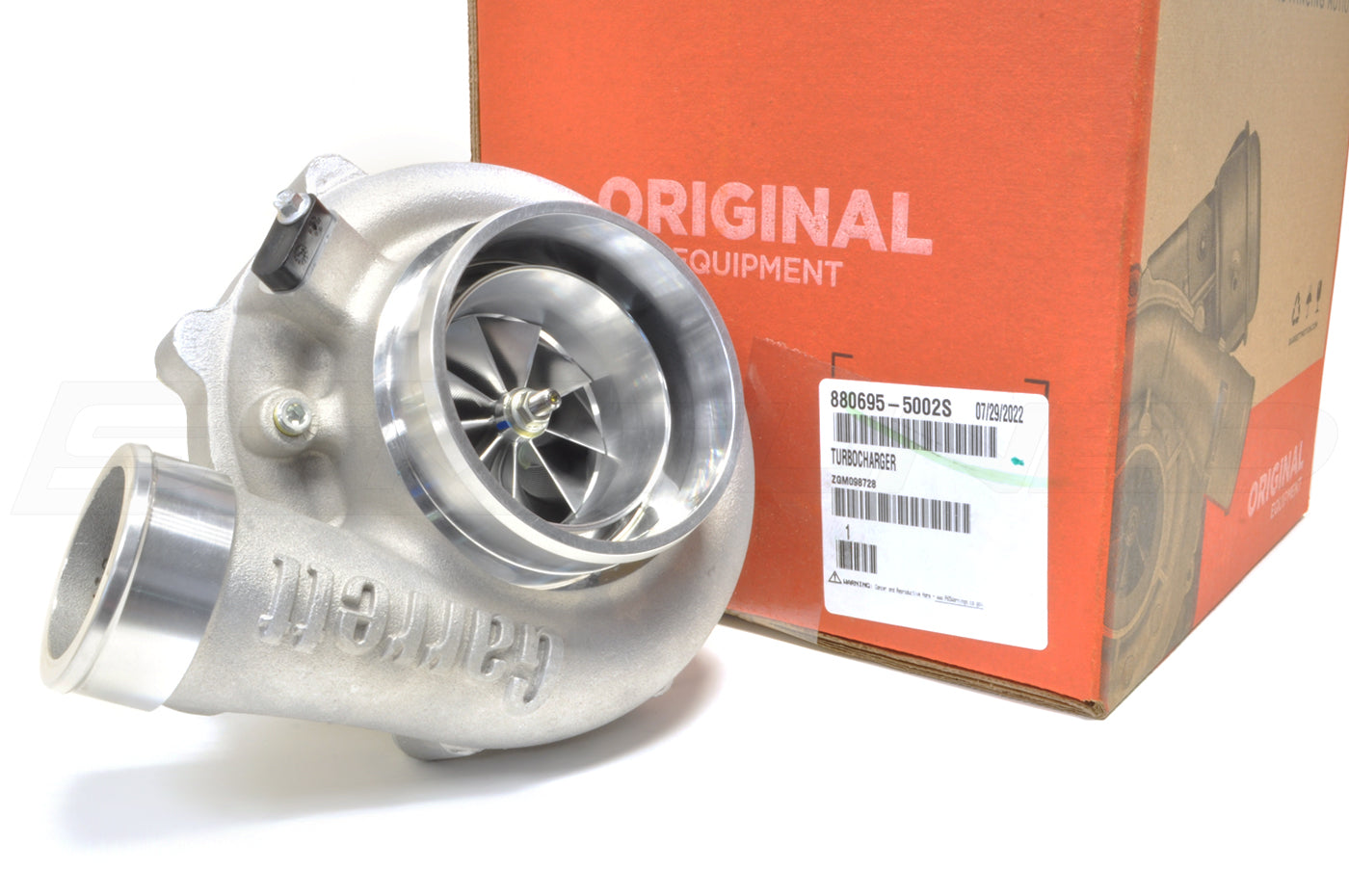

Garrett G-Series Turbo G35-1050
Supercore Standard Rotation (880695-5002S)
$2,513.09
Skip to product information
$2,513.09
Product Overview
The Garrett G-Series Turbo G35-1050 is a high-performance turbocharger designed for use with external wastegate systems. It features a Mar-M super alloy turbine wheel capable of withstanding exhaust gas temperatures up to 1050°C, delivering improved flow and boost response over previous models. The turbine housing is constructed from stainless steel for durability and heat resistance, with multiple A/R ratios and configurations to match specific engine needs. Each unit includes all necessary fittings and clamps for direct installation.
Key Features

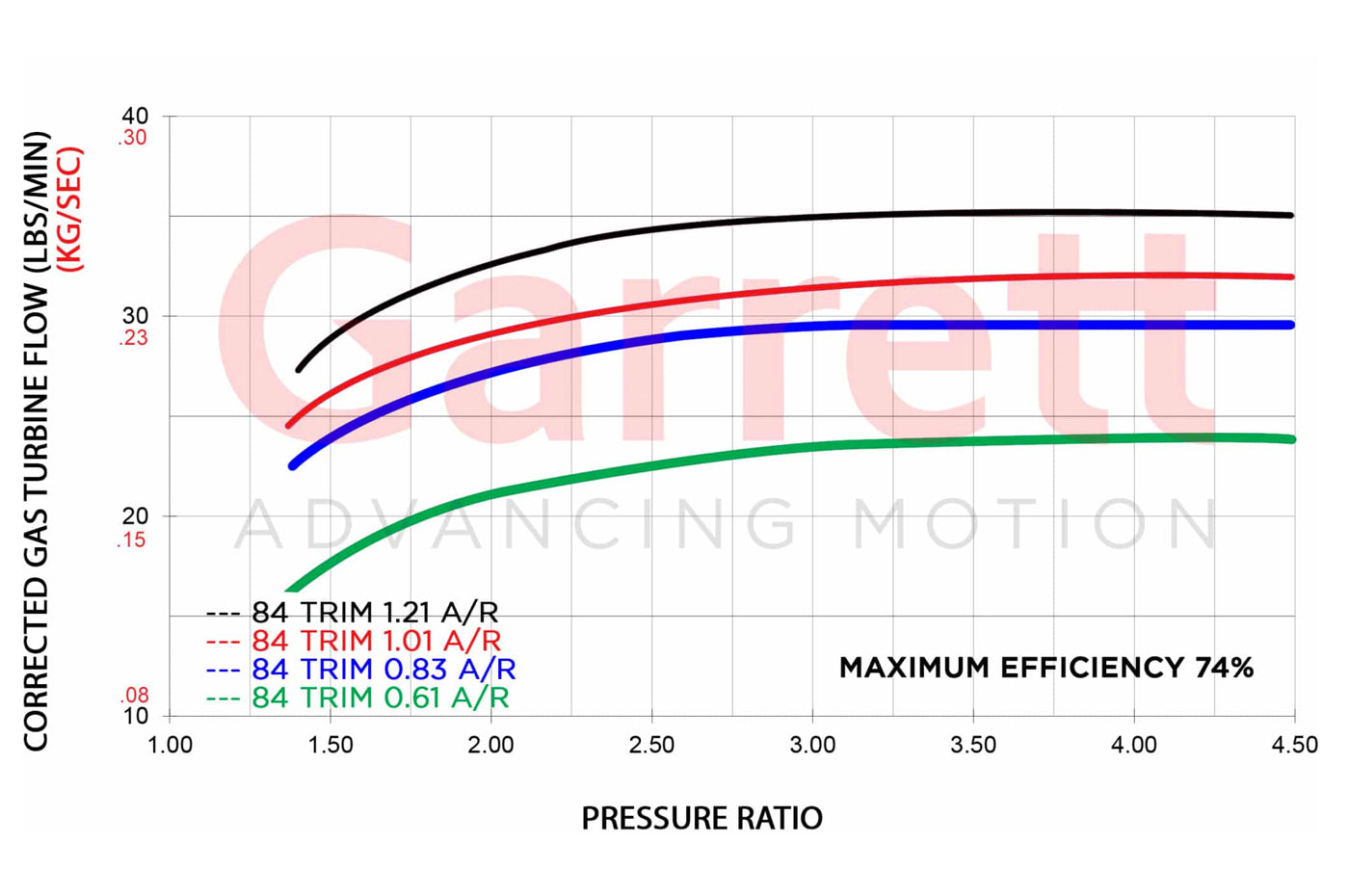

- New turbine design flows 15–20% more than GTX models with peak efficiency of 74%

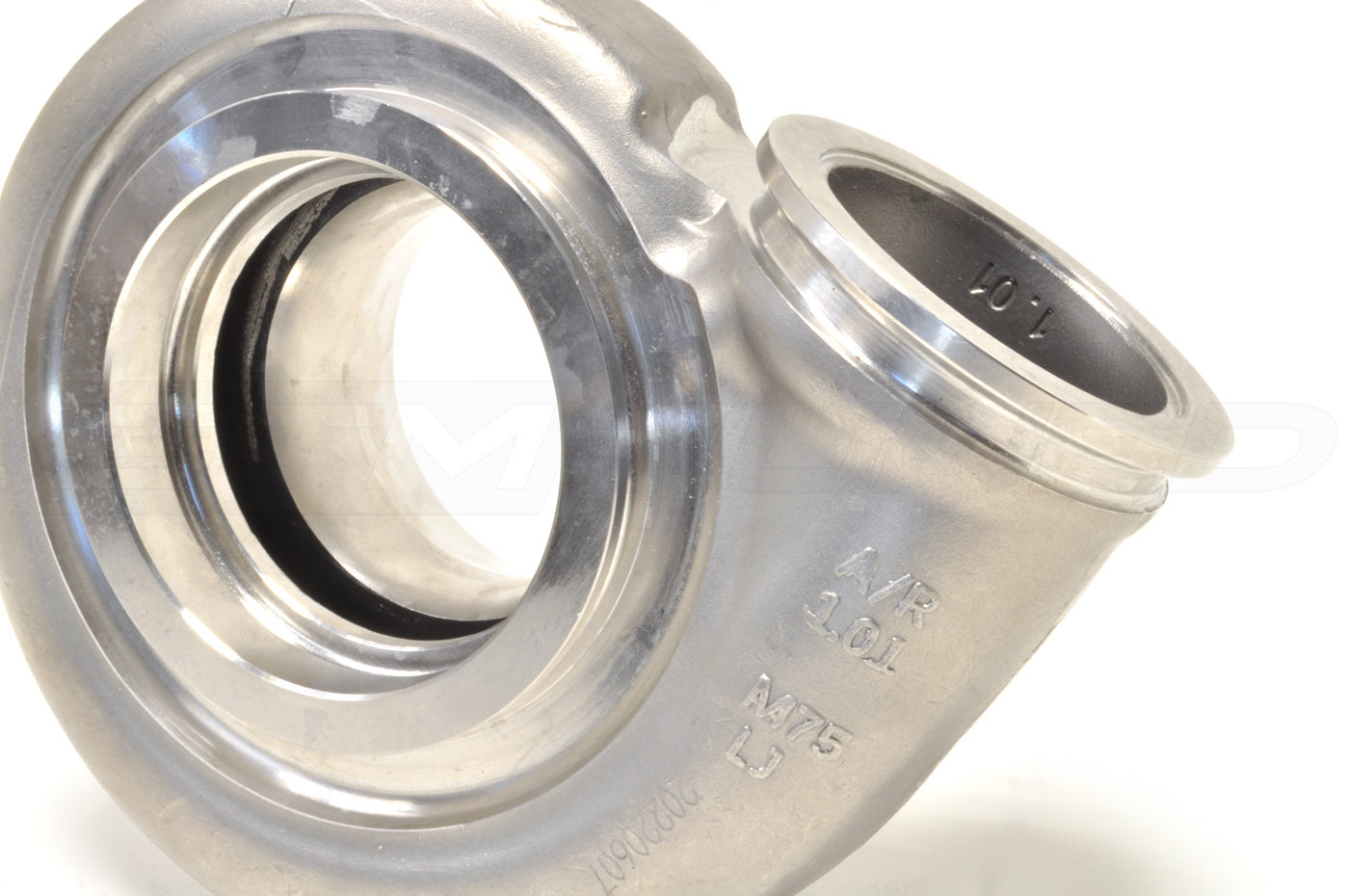

- Stainless steel turbine housings offer durability and temperature resistance up to 1050°C
- Available in multiple A/R ratios (0.61 to 1.21) for precise performance tuning

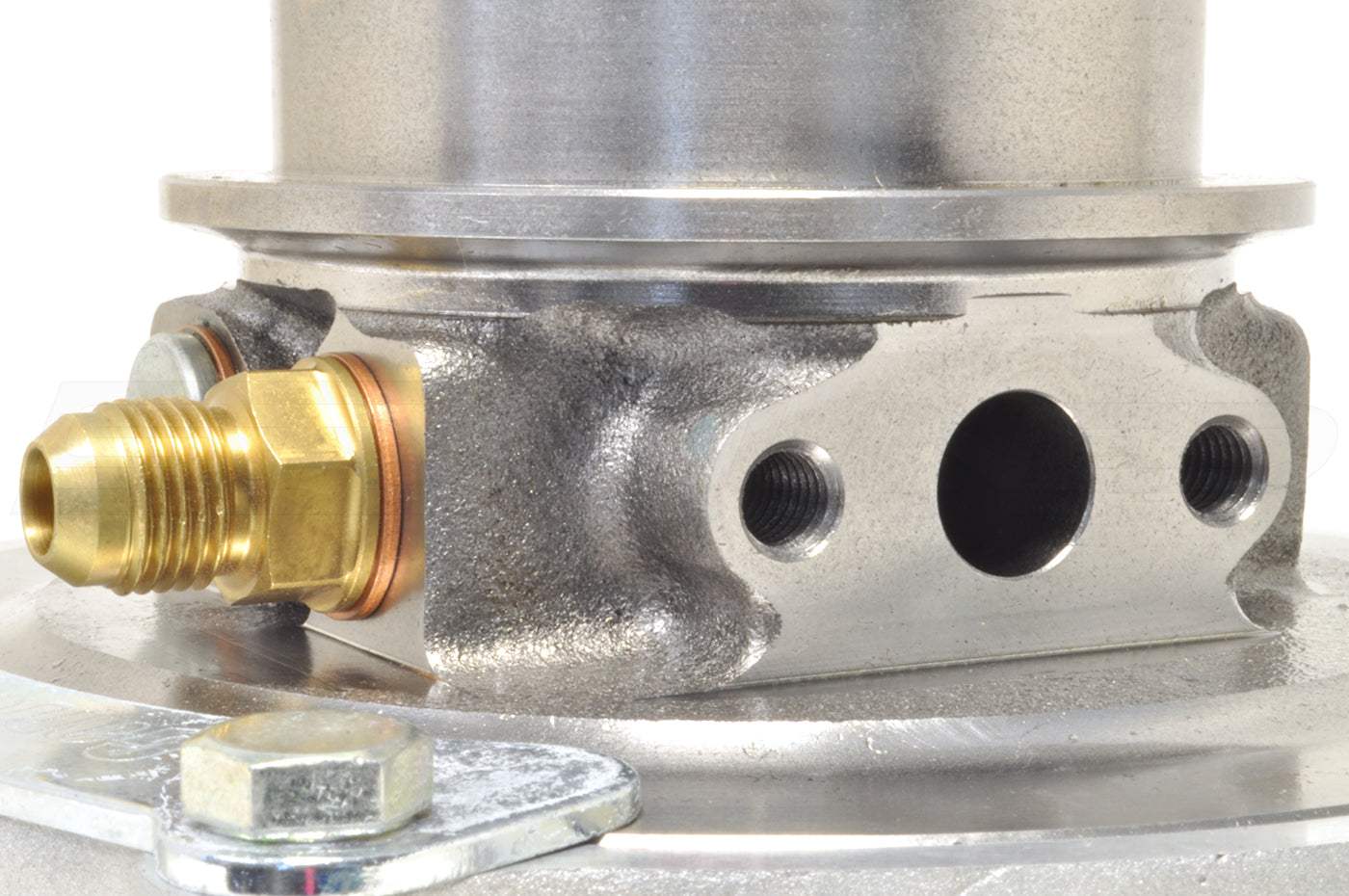

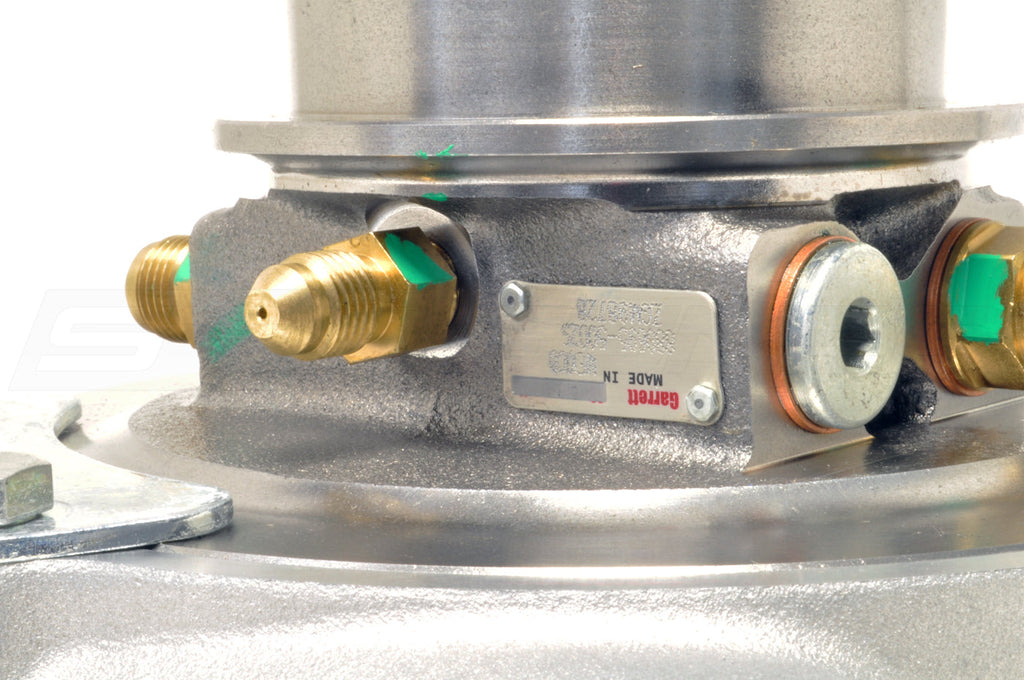

- Includes built-in oil restrictor and water fittings with -4AN and -6AN connections

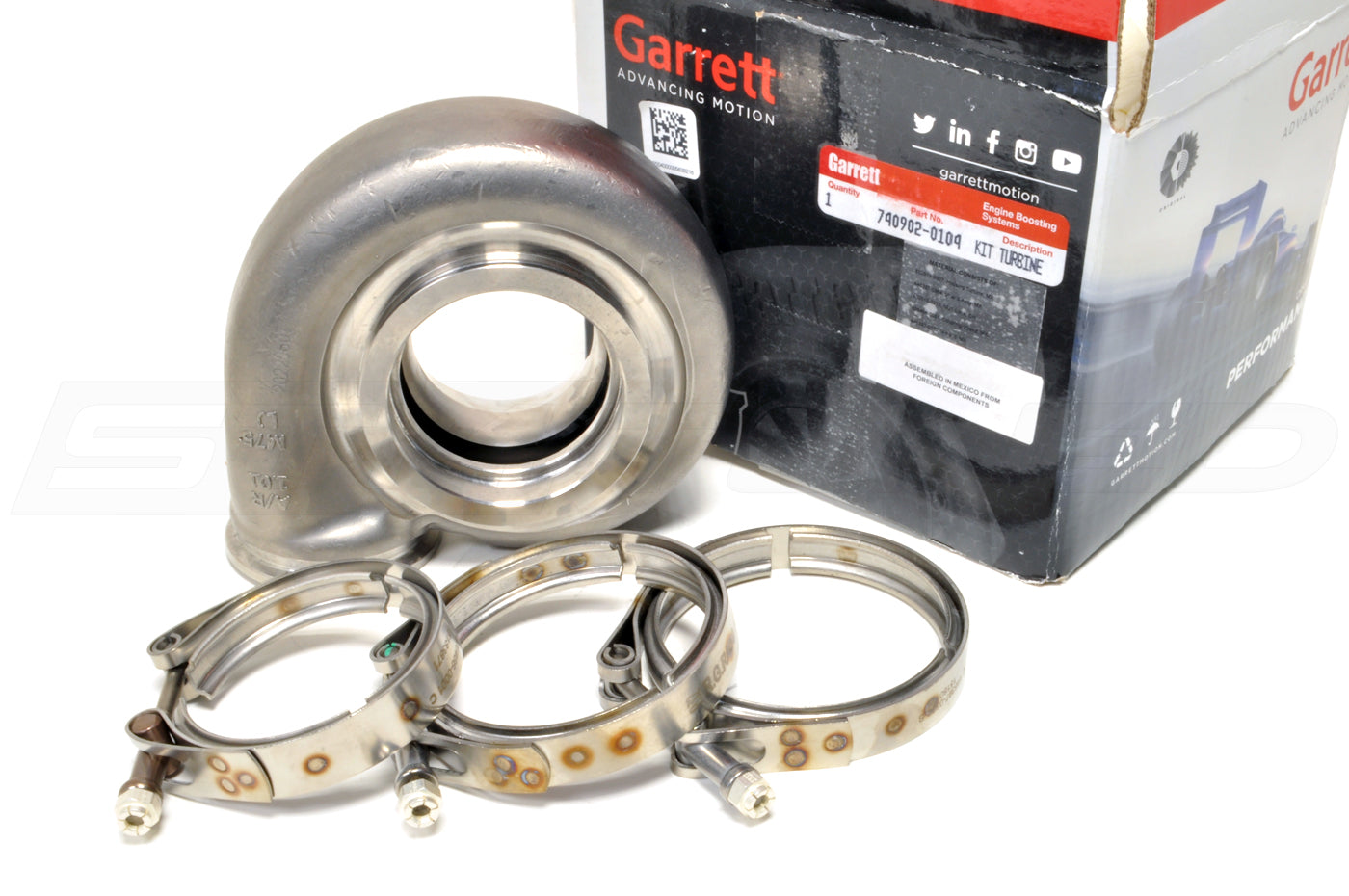

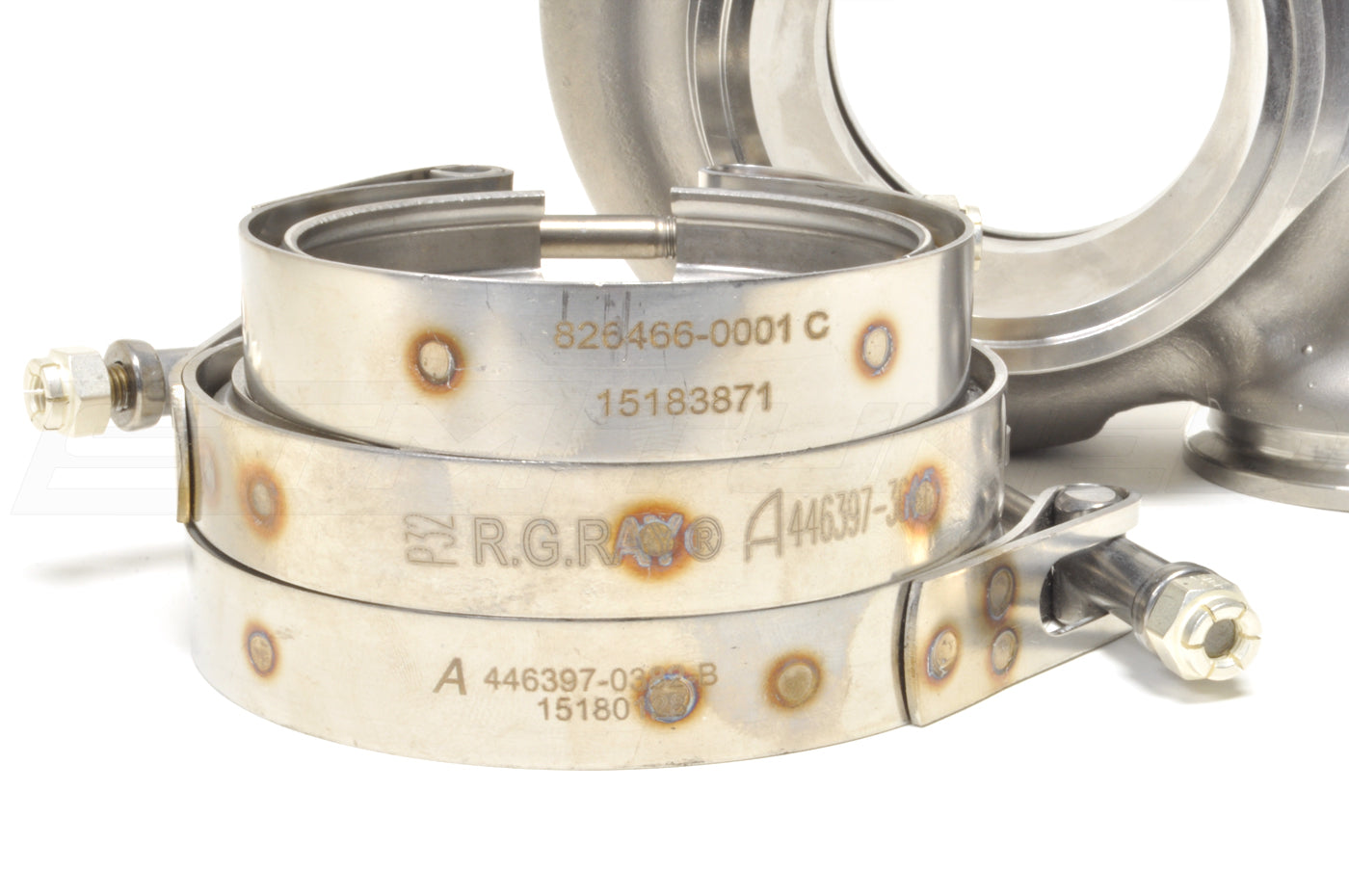

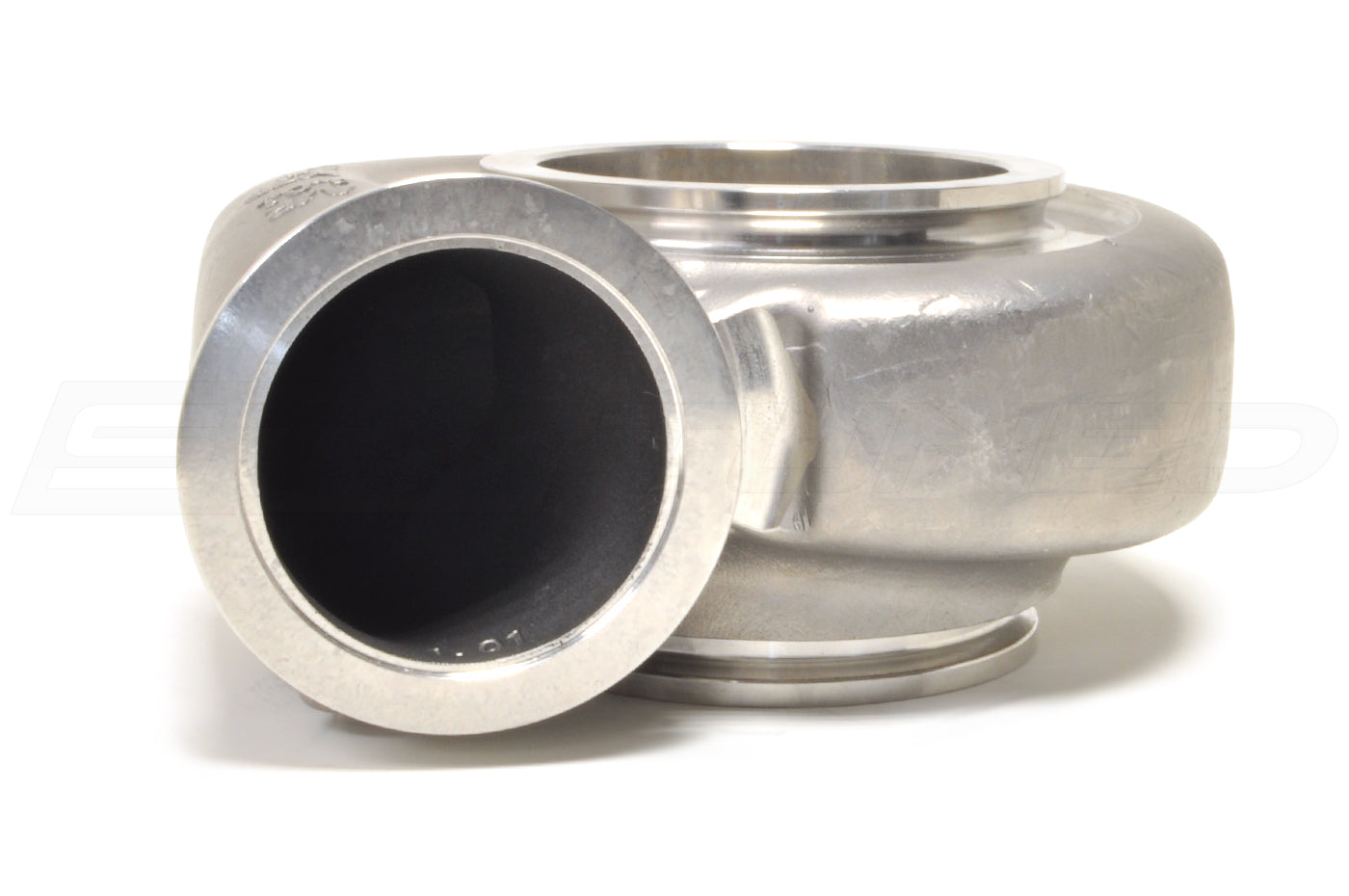

- Housings feature inlet and outlet flanges with matching gaskets and V-band clamps
- Designed for compatibility with external wastegate systems to reduce boost creep
Specifications
| Turbine Material | Mar-M super alloy |
|---|---|
| Max Operating Temperature | 1050°C |
| Turbine Efficiency | 74% |
| A/R Ratio Range | 0.61 to 1.21 |
| Housing Material | Stainless steel |
| Oil Feed Fitting | -4AN |
| Water Fitting | -6AN |
| Compressor Inlet | 4" coupler |
| Compressor Outlet | 2.5" coupler |
| Supercore Weight | 11.20 pounds |
Available Configurations
| Part Number | Configuration |
|---|---|

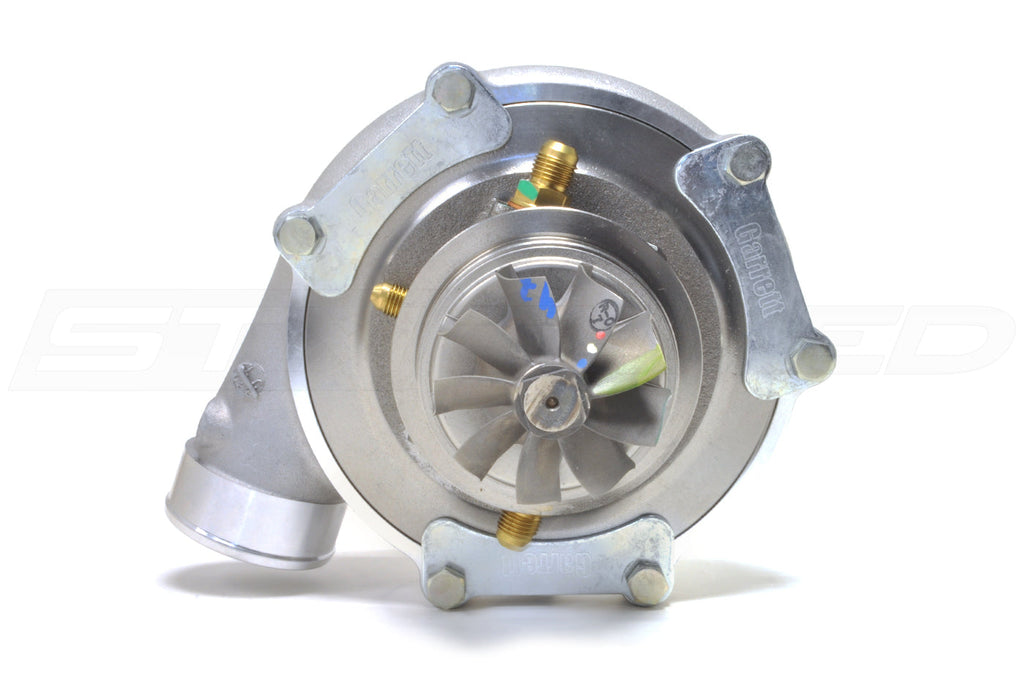

| GAR-880695-5002S | Supercore Standard Rotation (880695-5002S) |
| GAR-880696-5002S | Supercore Reverse Rotation (880696-5002S) |
| - | -- Standard Rotation Housings -- |
| GAR-740902-0108 | Housing Kit Standard 1.06 T4/VB (740902-0108) |
| GAR-740902-0106 | Housing Kit Standard 0.83 T3/VB (740902-0106) |
| GAR-740902-0107 | Housing Kit Standard 1.01 T3/VB (740902-0107) |
| GAR-740902-0102 | Housing Kit Standard 0.61 VB/VB (740902-0102) |
| GAR-740902-0103 | Housing Kit Standard 0.83 VB/VB (740902-0103) |
| GAR-740902-0104 | Housing Kit Standard 1.01 VB/VB (740902-0104) |
| GAR-740902-0105 | Housing Kit Standard 1.21 VB/VB (740902-0105) |
| - | -- Reverse Rotation Housings -- |
| GAR-740902-0116 | Housing Kit Reverse 0.83 T3/VB (740902-0116) |
| GAR-740902-0117 | Housing Kit Reverse 1.01 T3/VB (740902-0117) |
| GAR-740902-0112 | Housing Kit Reverse 0.61 VB/VB (740902-0112) |
| GAR-740902-0113 | Housing Kit Reverse 0.83 VB/VB (740902-0113) |
| GAR-740902-0114 | Housing Kit Reverse 1.01 VB/VB (740902-0114) |
| GAR-740902-0115 | Housing Kit Reverse 1.21 VB/VB (740902-0115) |
Applications
- Used with external wastegate systems
- Installed in high-performance engine applications requiring turbocharging
- Compatible with standard or reverse rotation configurations
- Fits T3, T4 divided, and V-band turbine housing options
- Designed for use in engines operating at exhaust gas temperatures up to 1050°C
- Suitable for applications needing improved boost response and turbine efficiency
What's Included

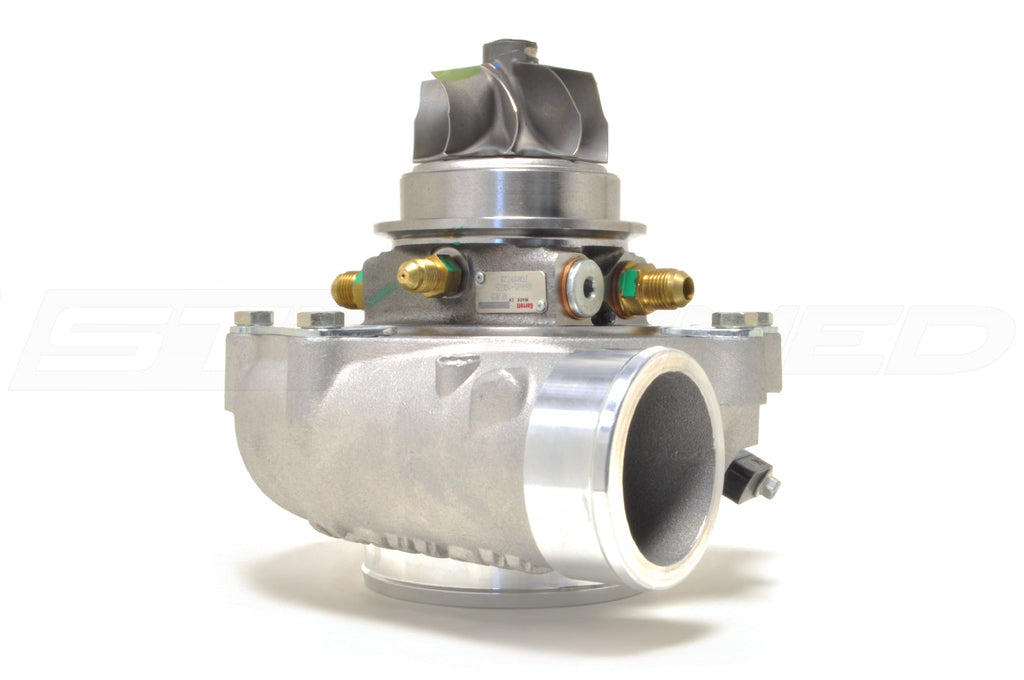

- Supercore (standard or reverse rotation)

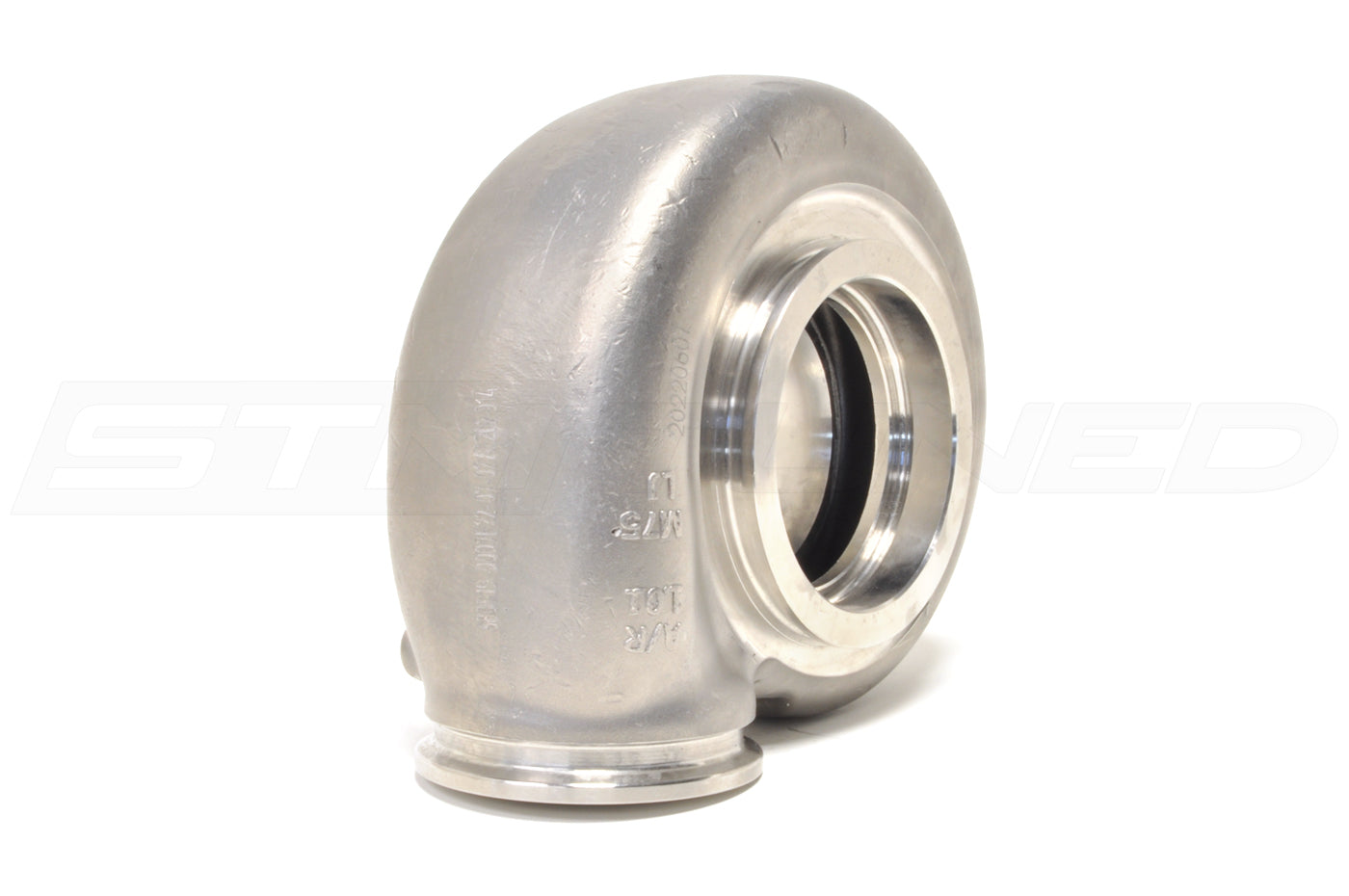

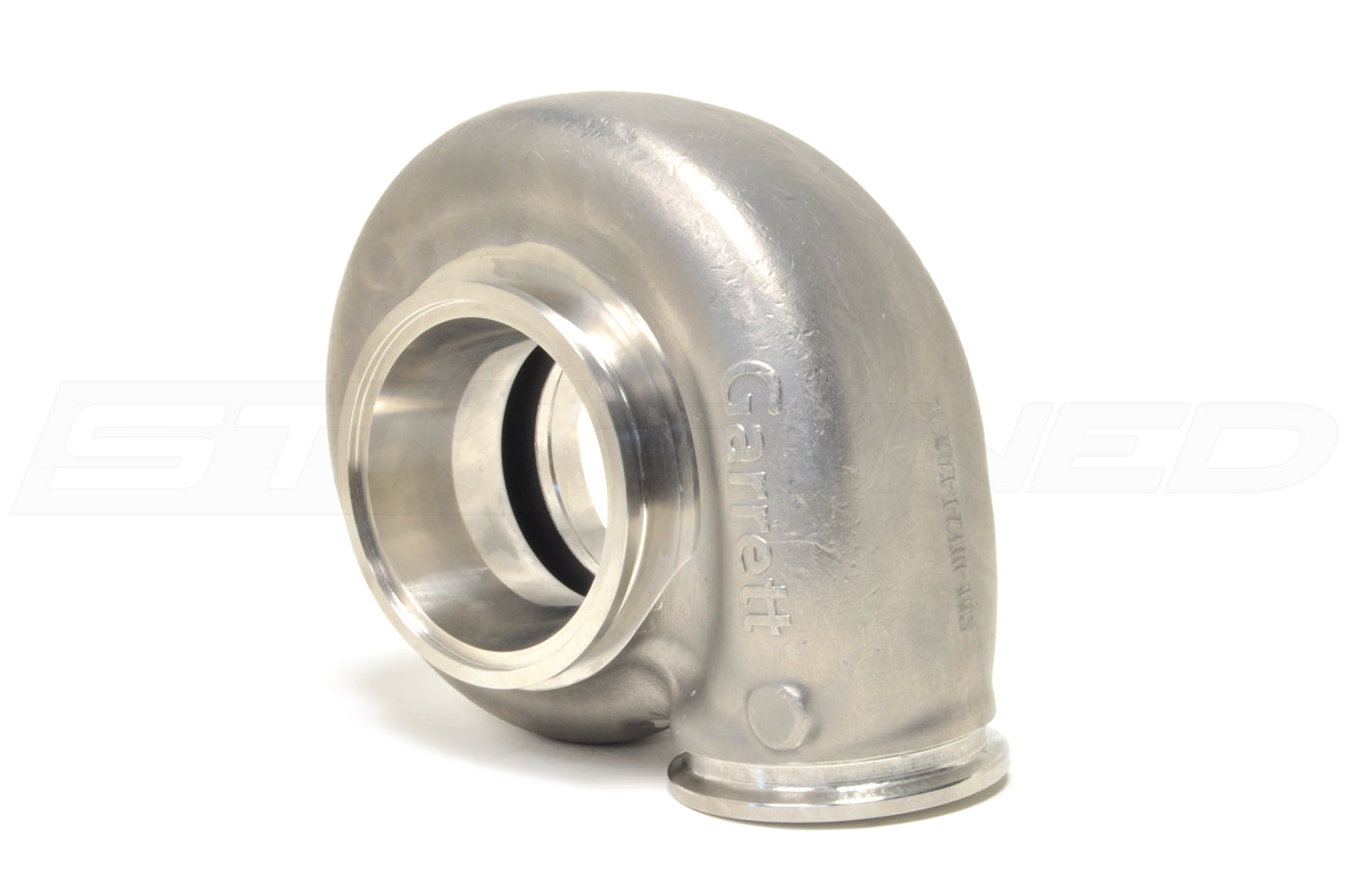

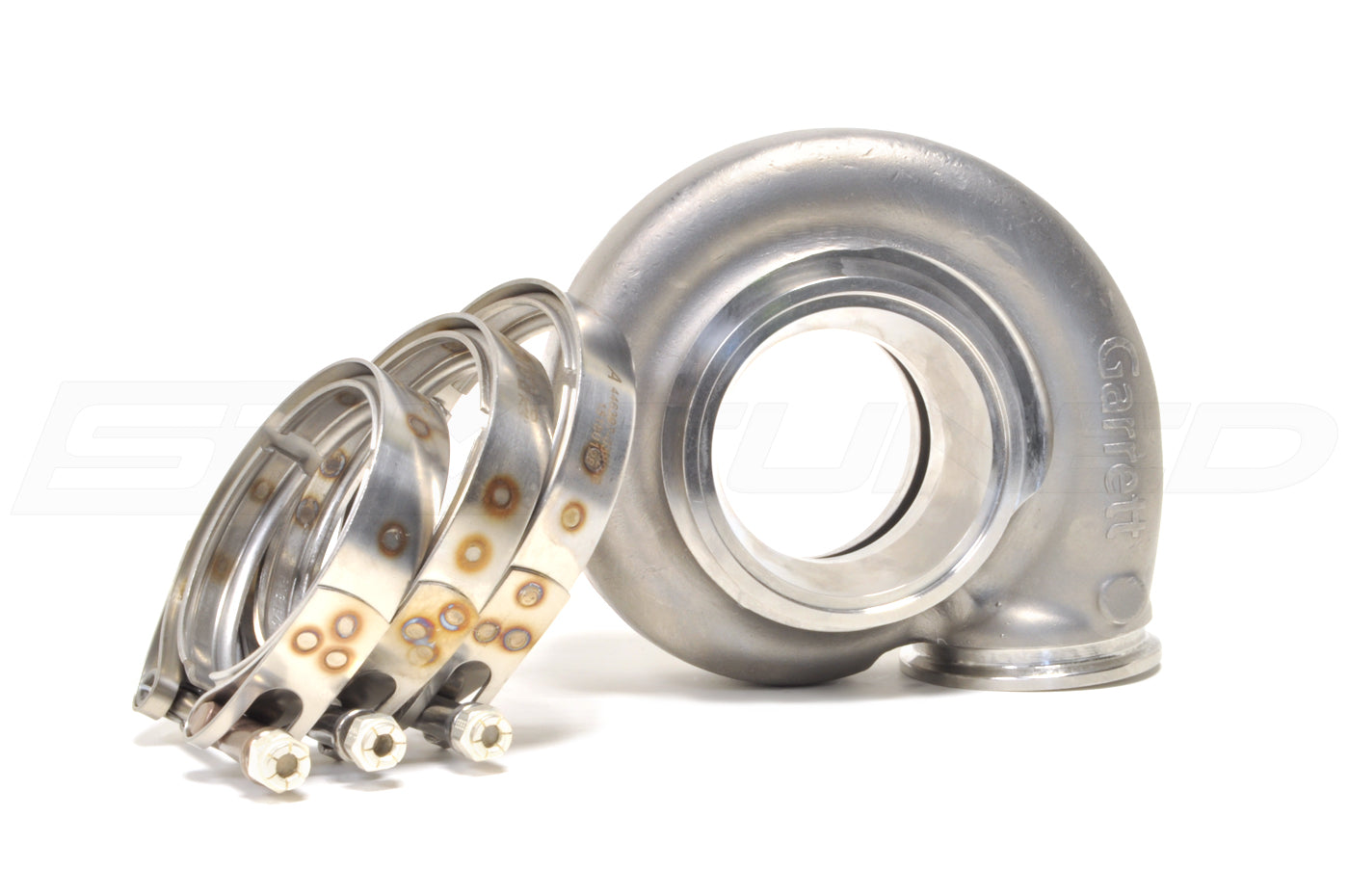

- Exhaust housing kit (with inlet and outlet flanges, gaskets, and V-band clamps)
