FP DSM Red Journal Bearing Turbo
Product Overview

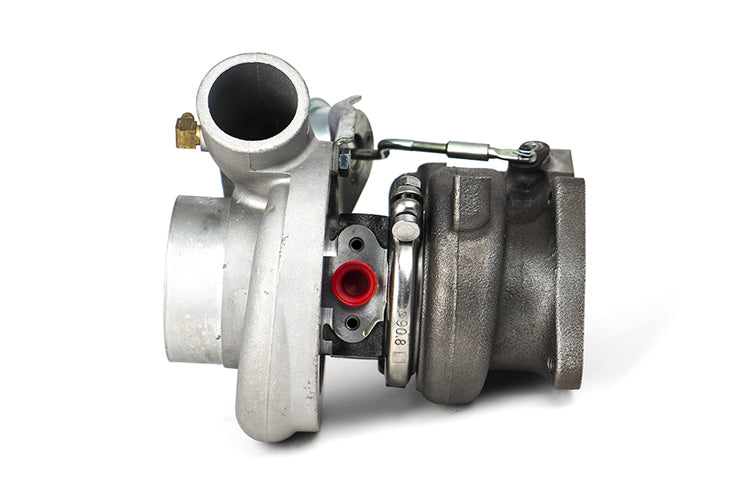

The FP DSM Red Journal Bearing Turbo is a high-performance turbocharger designed for 1G and 2G DSM engines. It features a 76MM HTZ compressor wheel and a 61LB per minute flow rating, delivering strong airflow for enhanced power output. The unit includes an 8CM turbine housing with a 67MM turbine wheel and supports both internal and external wastegate configurations.
It is compatible with a range of DSM models including Eclipse GST/GSX, Talon TSi, and Laser RS from 1990 to 1999. Installation requires specific oil supply lines and, for 2G DSMs, a 1G 6-Bolt air-cooled oil filter housing. A black ceramic coating is available to improve heat retention and engine bay temperature control.
Key Features
- Features a 76MM HTZ compressor wheel with a 61LB per minute flow rating.

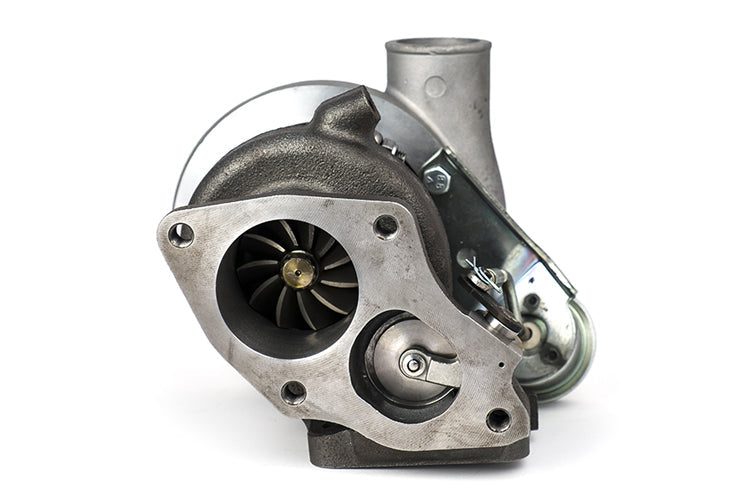

- Includes an 8CM turbine housing with a 67MM turbine wheel.
- Compatible with both 1G and 2G DSM models.
- Offers internal wastegate or external gate via O2 housing setup.
- Available with optional black ceramic coating for heat retention and visual appeal.
- Requires 1G 6-Bolt air-cooled oil filter housing for 2G DSM installations.
Specifications
| Compressor Wheel | 76HTZ |
|---|---|
| Flow Rating | 61LB per Minute |
| Turbine Housing | 8CM |
| Turbine Wheel Inducer | 67.3mm |
| Turbine Wheel Exducer | 58.8mm |
| Compressor Housing | 84mm Flow Advancement Port Cover |

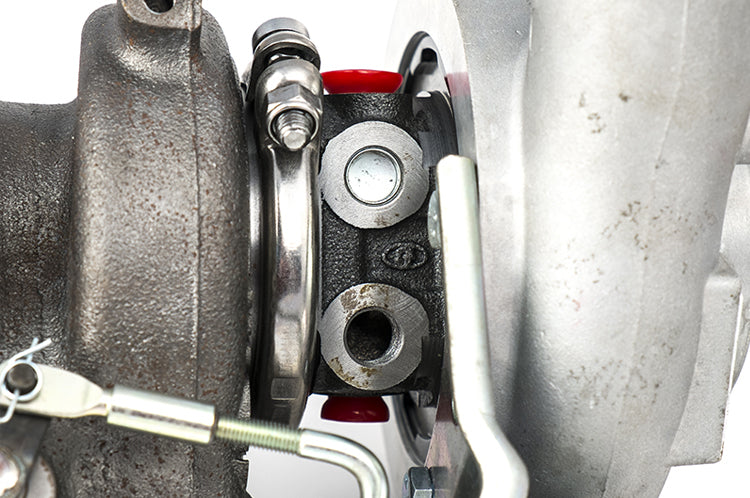

| Oil Line | Not Included |
| Oil Filter Housing Requirement | 1G 6-Bolt Air-Cooled |
| Part Numbers | 2015040, 2015042, 2015044 |
Available Configurations
| Part Number | Configuration |
|---|---|

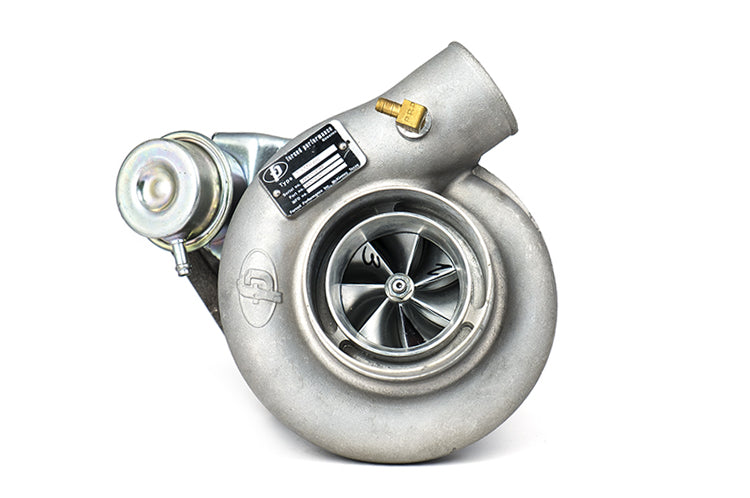

| FP-RED-JB-DSM-1 | with Internal Wastegate / No Coating |
| FP-RED-JB-DSM-2 | with Internal Wastegate / Add Coating |

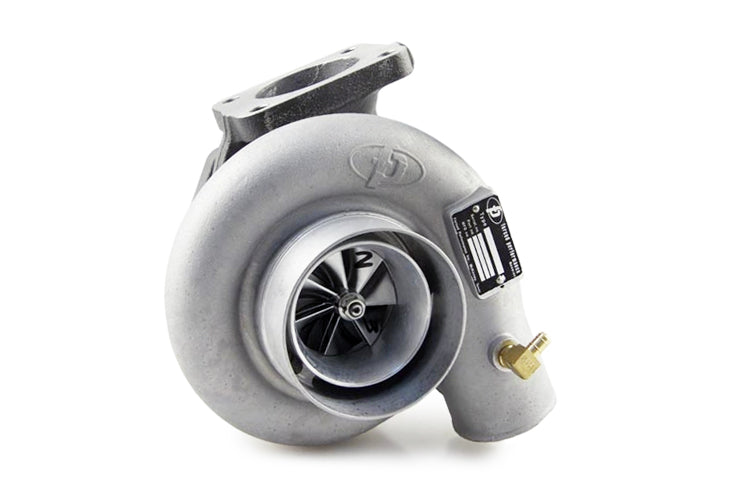

| FP-RED-JB-DSM-5 | for Wastegate on O2 / No Coating |
| FP-RED-JB-DSM-6 | for Wastegate on O2 / Add Coating |

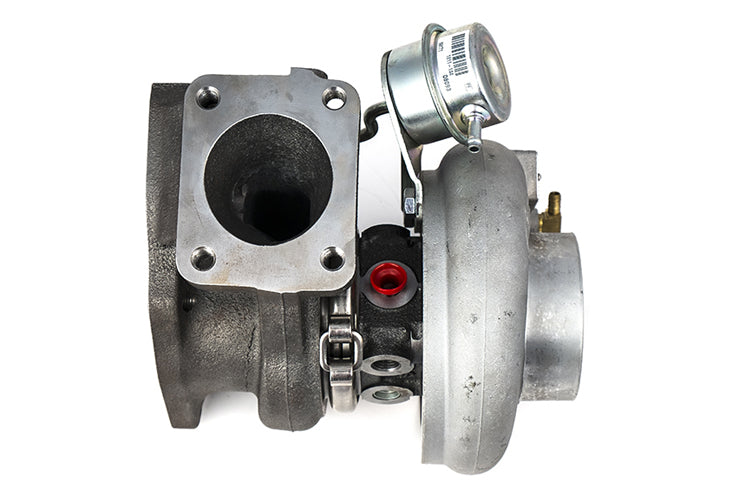

| FP-RED-JB-DSM-9 | for Wastegate on Manifold / No Coating |
| FP-RED-JB-DSM-10 | for Wastegate on Manifold / Add Coating |
Applications
- 1G/2G DSM
- 1990-1999 Eclipse GST/GSX
- 1990-1998 Talon TSi
- 1990-1994 Laser RS
