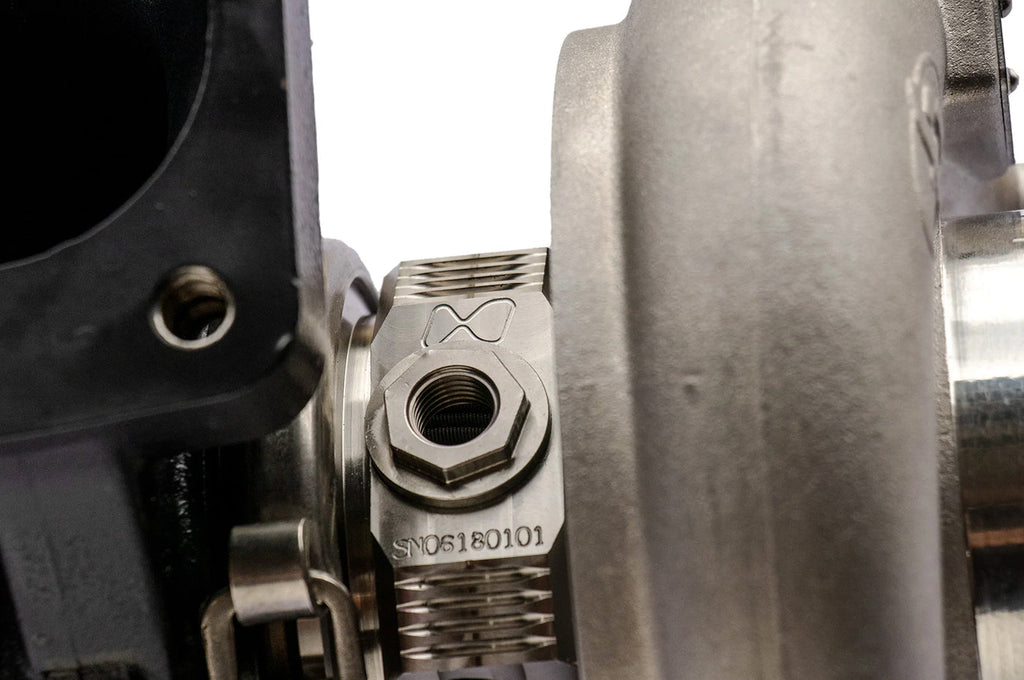

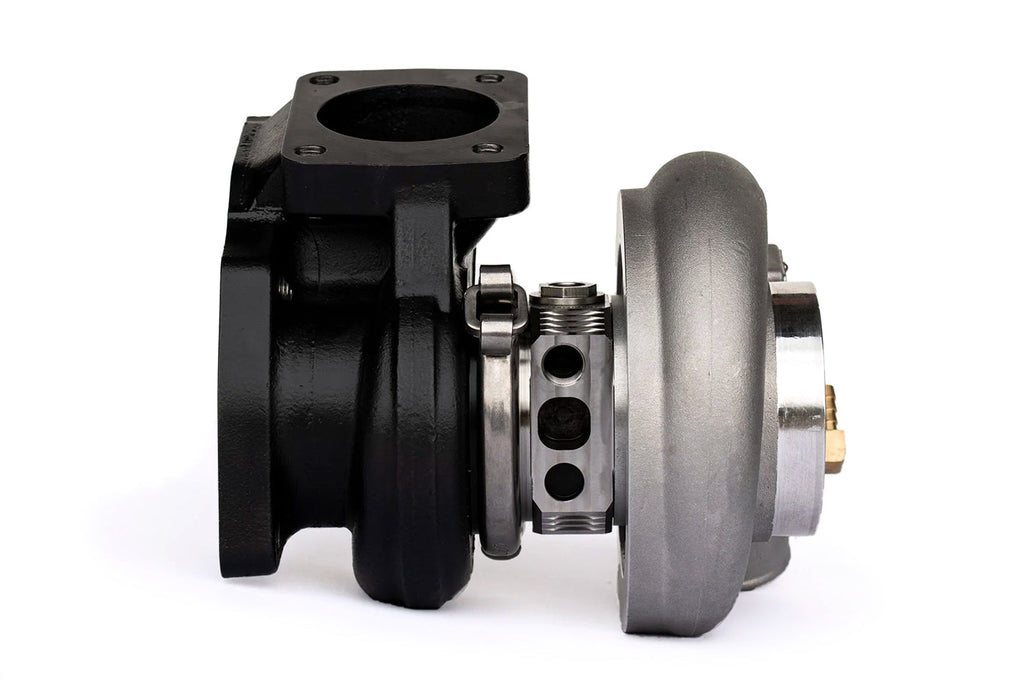

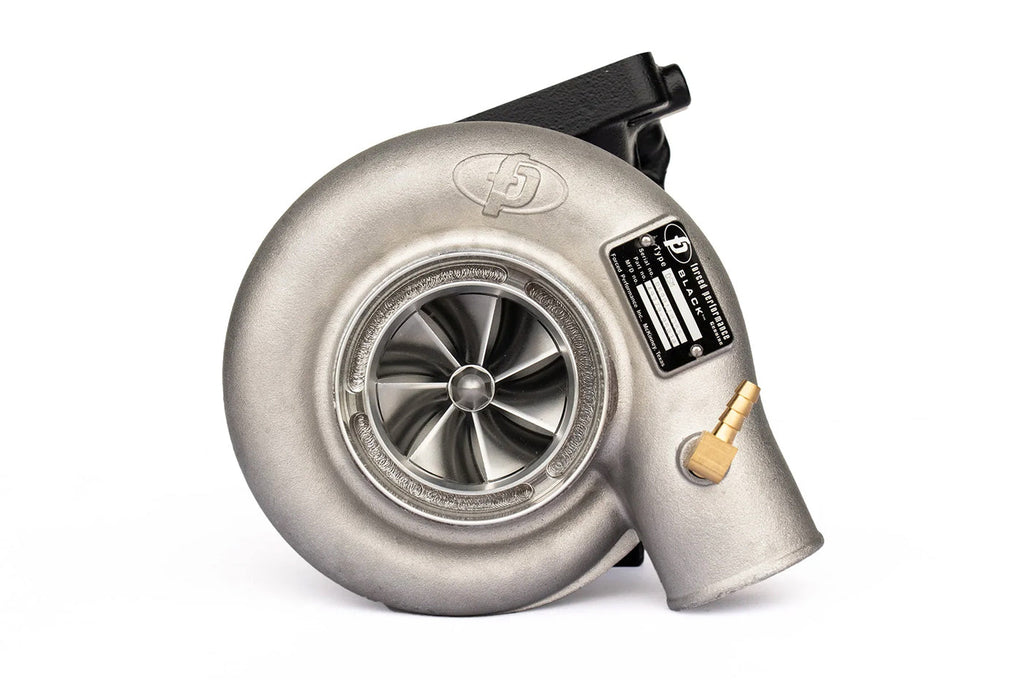

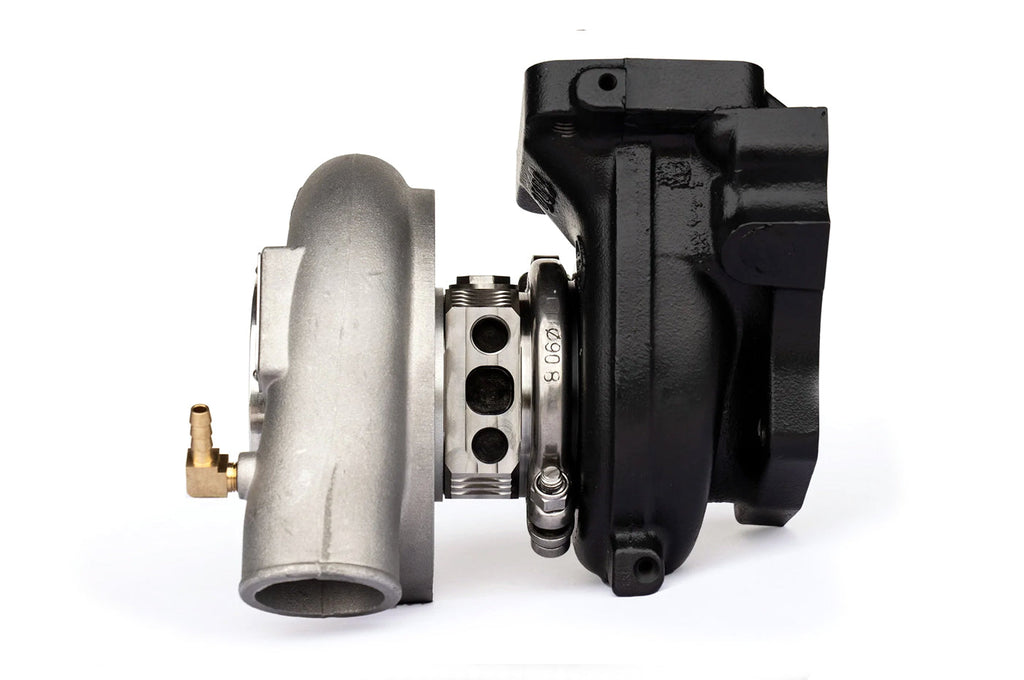

FP DSM Black Ball Bearing Turbo
for Wastegate on O2 / No Coating
$2,449.00
Skip to product information
$2,449.00
Product Overview
Built to custom specifications, this turbo is not in stock and has a typical lead time of 8–10 weeks. Installation requires a 1G 6-bolt air-cooled oil filter housing and a dedicated oil supply line. Optional black ceramic coating enhances heat retention and improves engine bay thermal management.
Key Features
- Compressor wheel rated at 71LB per minute for high airflow capacity.
- Designed for external wastegate use—either on the manifold or O2 housing.
- Available with optional black ceramic coating to retain heat and improve engine bay temperature control.
- Includes 10cm turbine housing for maximum airflow efficiency.
- Requires 1G 6-bolt air-cooled oil filter housing for proper installation.
Specifications
| Compressor Wheel | 82HTZ |
|---|---|
| Flow Rating | 71LB per Minute |
| Compressor Inducer | 59.1mm |
| Compressor Exducer | 82mm |
| Turbine Inducer | 67.3mm |
| Turbine Exducer | 58.8mm |
| Turbine Housing | 10cm |
| Compressor Housing Port | 84mm Flow Advancement |
| Oil Filter Housing Requirement | 1G 6-Bolt Air-Cooled |
| Oil Line | Not Included |
Available Configurations
| Part Number | Configuration |
|---|---|
| FP-BLACK-BB-DSM-1 | for Wastegate on O2 / No Coating |
| FP-BLACK-BB-DSM-2 | for Wastegate on O2 / Add Coating |
| FP-BLACK-BB-DSM-5 | for Wastegate on Manifold / No Coating |
| FP-BLACK-BB-DSM-6 | for Wastegate on Manifold / Add Coating |
Applications
- 1G/2G DSM
- 1990-1999 Eclipse GST/GSX
- 1990-1998 Talon TSi
- 1990-1994 Laser RS
What's Included
- FP DSM Black Ball Bearing Turbo with 10cm turbine housing
- Compressor wheel (82HTZ)
- Turbine wheel (67.3mm inducer, 58.8mm exducer)
