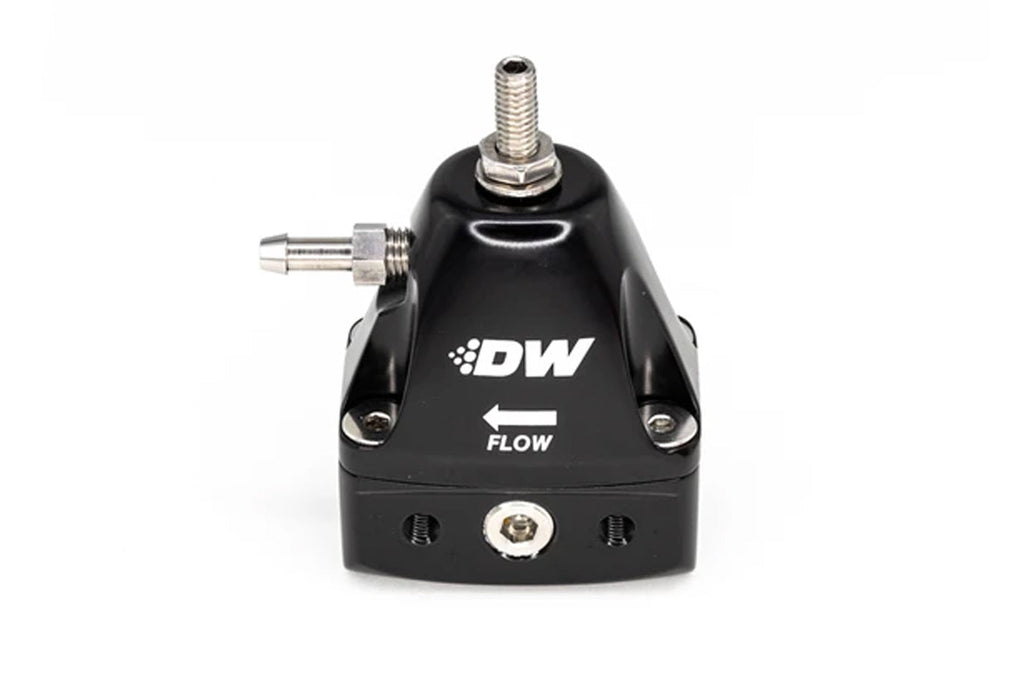

DeatschWerks DWR1000iL Adjustable In-Line Fuel Pressure Regulator (6-1001-FRB)
Product Overview
The DeatschWerks DWR1000iL is an adjustable in-line fuel pressure regulator built for high-performance EFI engines operating between 250 and 1000 horsepower. It maintains consistent fuel pressure through a large 45mm diaphragm and a precision ball-bearing adjustment system that delivers 2 psi per turn. Constructed from T6061 aluminum and anodized black, it resists corrosion and performs reliably in ethanol-based fuels.
Designed for tight engine spaces, this regulator features a streamlined in-line inlet and outlet configuration with -6AN ports. It includes a 1/8" NPT gauge port and a 3/16" vacuum fitting for real-time monitoring and reference, enabling accurate tuning of air-to-fuel ratios in demanding applications.
Key Features
- Adjusts fuel pressure with a 2 psi-per-turn ball-bearing mechanism
- Features a 45mm diaphragm for stable pressure retention under high-load conditions
- Ethanol-compatible construction with nitrile-fiber diaphragms
- Black anodized T6061 aluminum body with stainless steel hardware
- Includes a 1/8" NPT gauge port and 3/16" vacuum reference port
- Designed for compact in-line installation in tight engine bays
- Compatible with E85 fuel blends
- Precise pressure range from 30 to 100 PSI

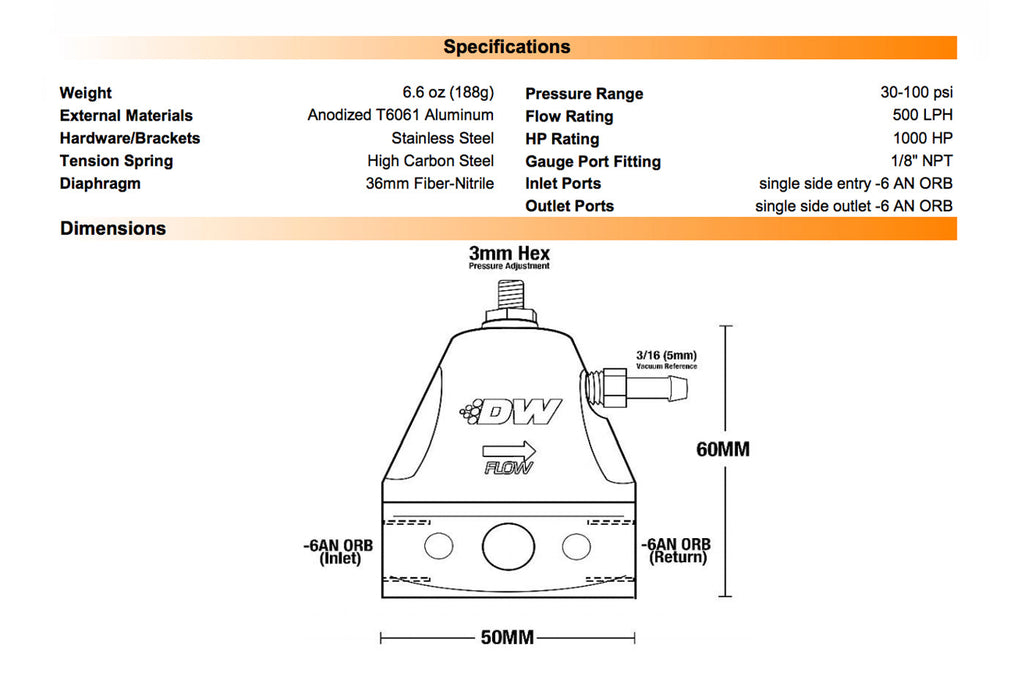

Specifications
| Inlet Port | -6AN |
|---|---|
| Outlet Port | -6AN |
| Adjustment Type | Ball-Bearing |
| Pressure Adjustment Ratio | 2 PSI per turn |
| Pressure Range | 30-100 PSI |
| Material | T6061 Aluminum |
| Anodization | Black |
| Gauge Port | 1/8" NPT |
| Vacuum Reference Port | 3/16" |
| Diaphragm Material | Nitrile-Fiber |
| Ethanol Compatibility | Yes |
Applications
- EFI engines producing 250HP to 1000HP
What's Included
- 1 x DeatschWerks DWR1000iL Adjustable In-Line Fuel Pressure Regulator (6-1001-FRB)
