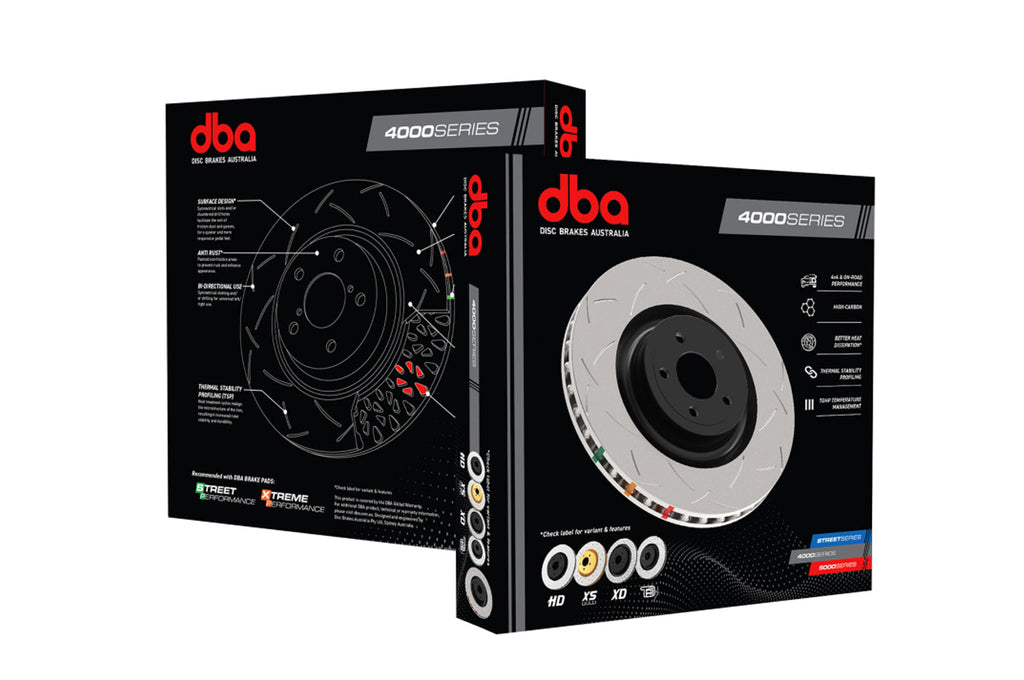

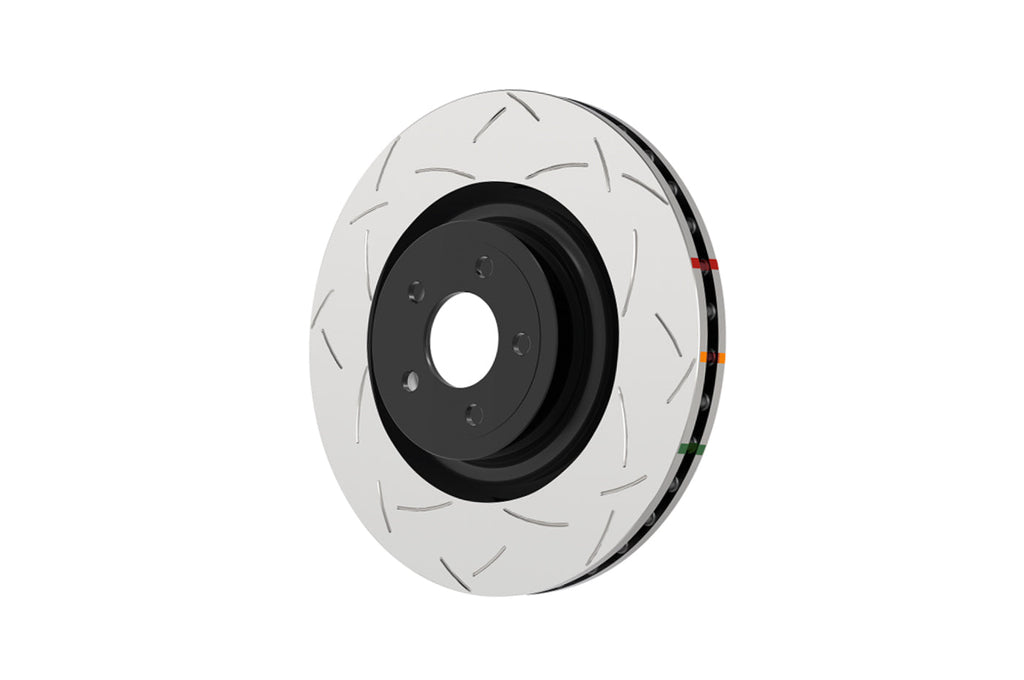

DBA 4000 T3 Slotted Front Rotor for 92-99 AWD DSM
$201.95
Skip to product information
$201.95
Product Overview
The DBA 4000 T3 slotted front rotor is a high-performance, one-piece brake component designed specifically for 1992–1999 AWD DSM models. Built on the T2 foundation, it features advanced CNC-machined tri-symmetrical slots that improve brake pad dust and gas release, resulting in more consistent and responsive braking. The rotor includes thermographic heat paint that visibly shifts color at key temperature thresholds, enabling real-time monitoring of brake performance.
Key Features
- Enhanced brake pedal response with smoother, quieter braking feel
- Thermo-graphic heat paint changes color at specific temperatures: green to white at 856°F, orange to yellow at 1022°F, red to white at 1166°F
- Ideal operating range: 850°F to 1000°F for optimal performance and safety
- Anti-rust painted non-friction surfaces protect against corrosion
- Kangaroo paw heat dissipation design improves thermal management
Specifications
| Part Number | 4425S |
|---|---|
| Rotor Type | Single Piece |
| Slot Design | Tri-Symmetrical CNC Machined |
| Material | High-Carbon Alloyed Iron |
| Heat Dissipation | Kangaroo Paw Design |
| Paint Features | Thermo-Graphic Heat Paint |
| Temperature Thresholds | Green to white at 856°F, Orange to yellow at 1022°F, Red to white at 1166°F |
| Ideal Operating Range | 850°F to 1000°F |
| Non-Friction Surface Treatment | Anti-Rust Painted |
| Fitment | Front Rotor Only |
Applications
- 1992-1999 Eclipse GSX AWD
- 1992-1998 Talon TSi AWD
- 1992-1994 Laser RS AWD
- Build dates June 1992 and later
- AWD models only
- Front brake rotors
