Darton MID Sleeves for 4B11 Evo X (800-160)
$741.89
Skip to product information
$741.89
Product Overview

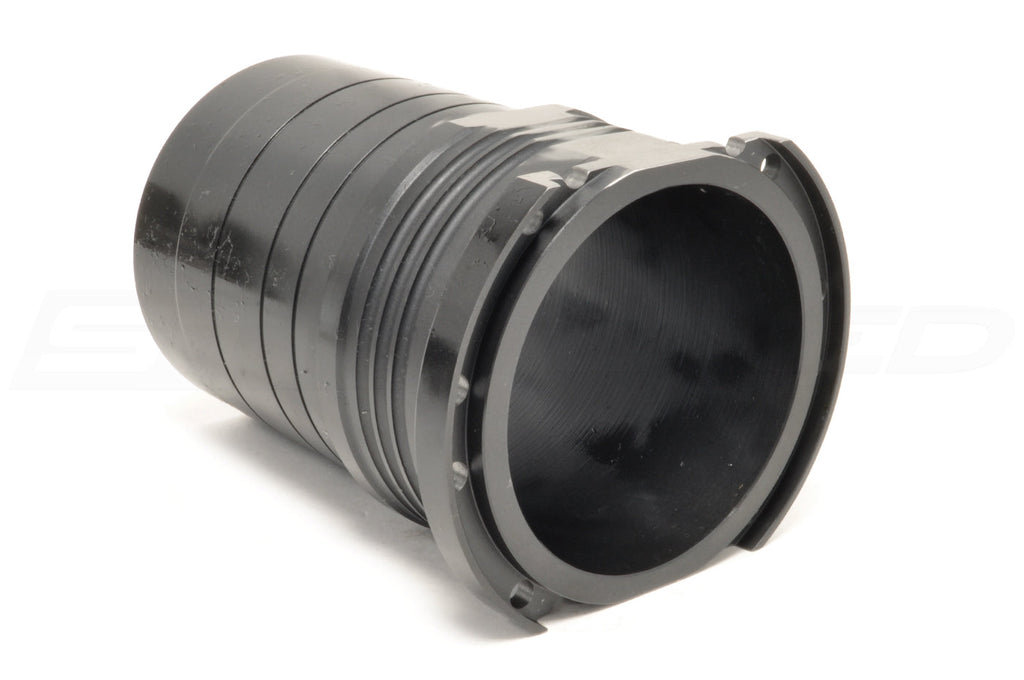

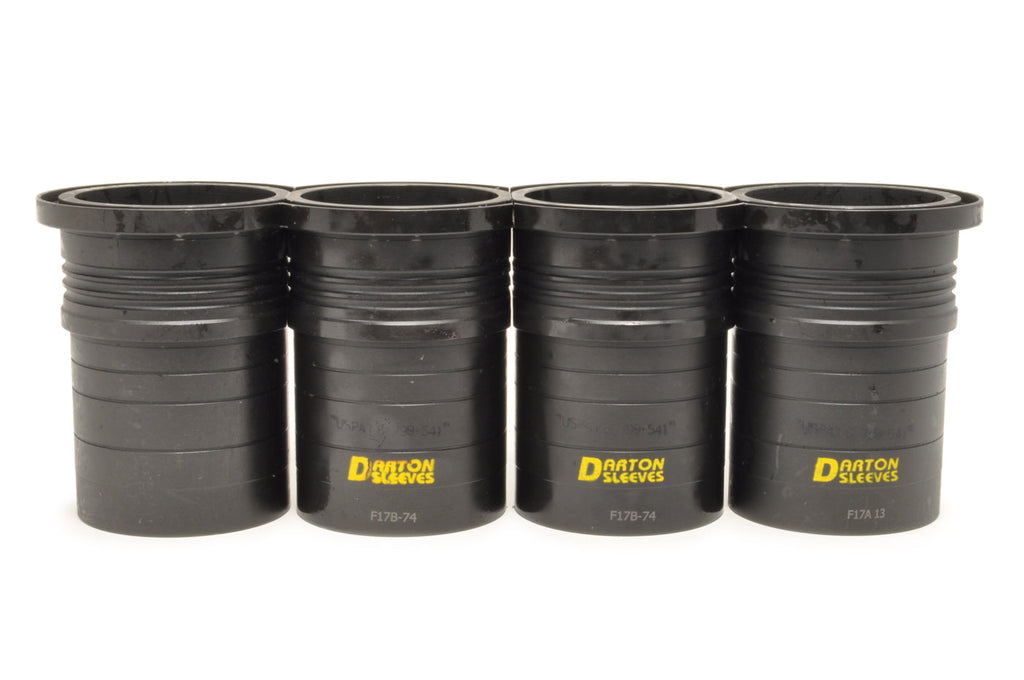

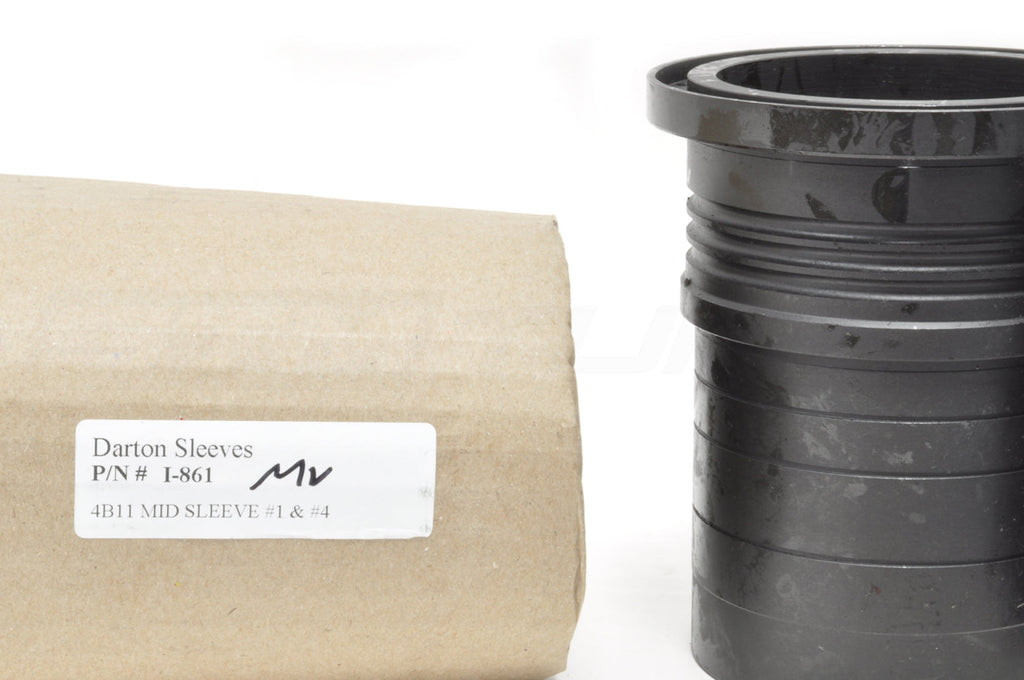

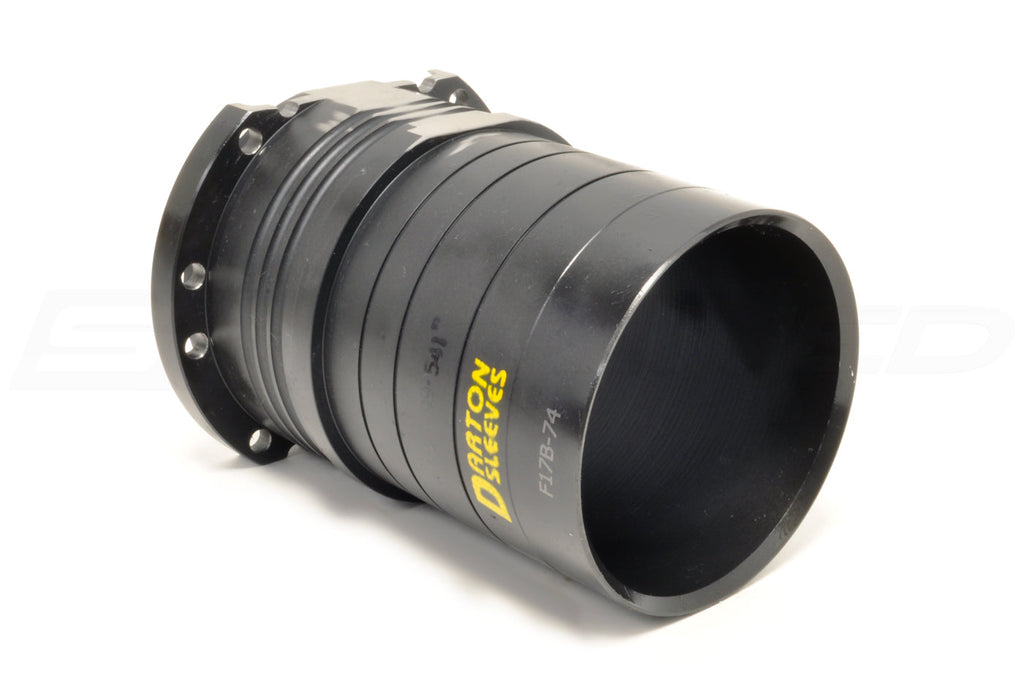

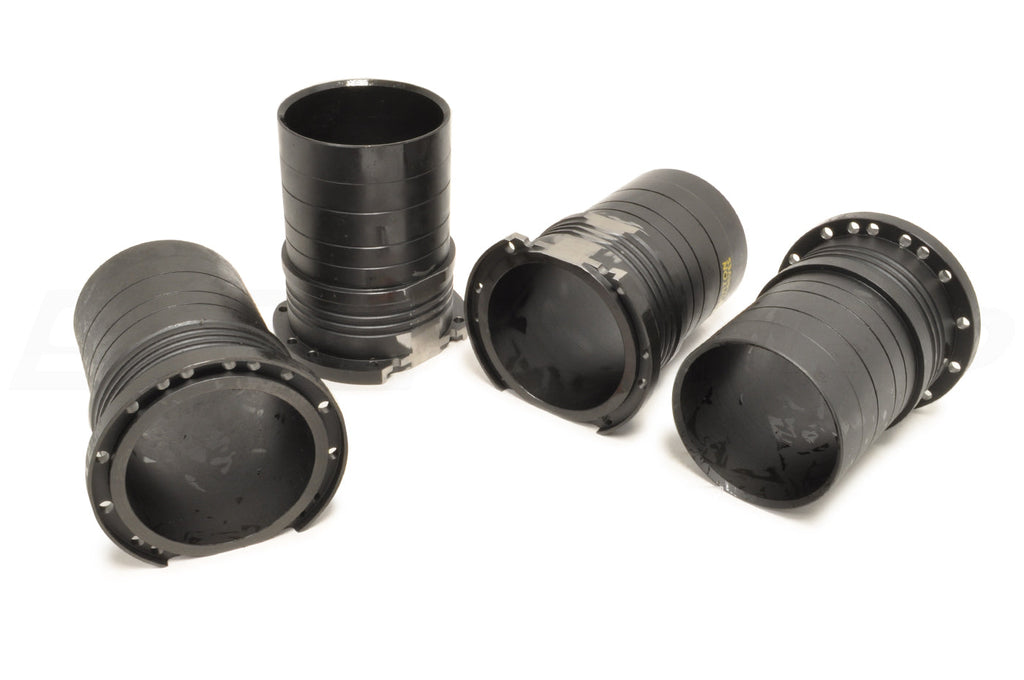

Darton MID Sleeves are engineered for the 4B11 Evo X (2008–2015) to address cylinder stability and cooling efficiency. Constructed from bulletproof ductile iron with 130,000 psi tensile strength, these wet sleeves feature a modular design that strengthens the upper deck through flange tension. The MID system allows for in-field sleeve replacement while improving oil and compression control, and enhances heat dissipation via swirl coolant technology.
Key Features
- Wet sleeve design enables in-field replacement and superior oil control
- Modular Integrated Deck (MID) structure enhances upper deck strength
- Swirl coolant technology improves water flow to critical heat zones
- Bore size range: 86mm to -90mm maximum
Specifications
| Bore | 3.370 |
|---|---|
| OD | 3.850 |
| Wall | 0.240 |
| OAL | 5.475 |
| Flange Thickness | 0.400 |
| Flange Diameter | 4.625 |
| Max Bore | 90mm |
| Part Number | 800-160 |
Applications
- 2008-2015 Evolution X 4B11

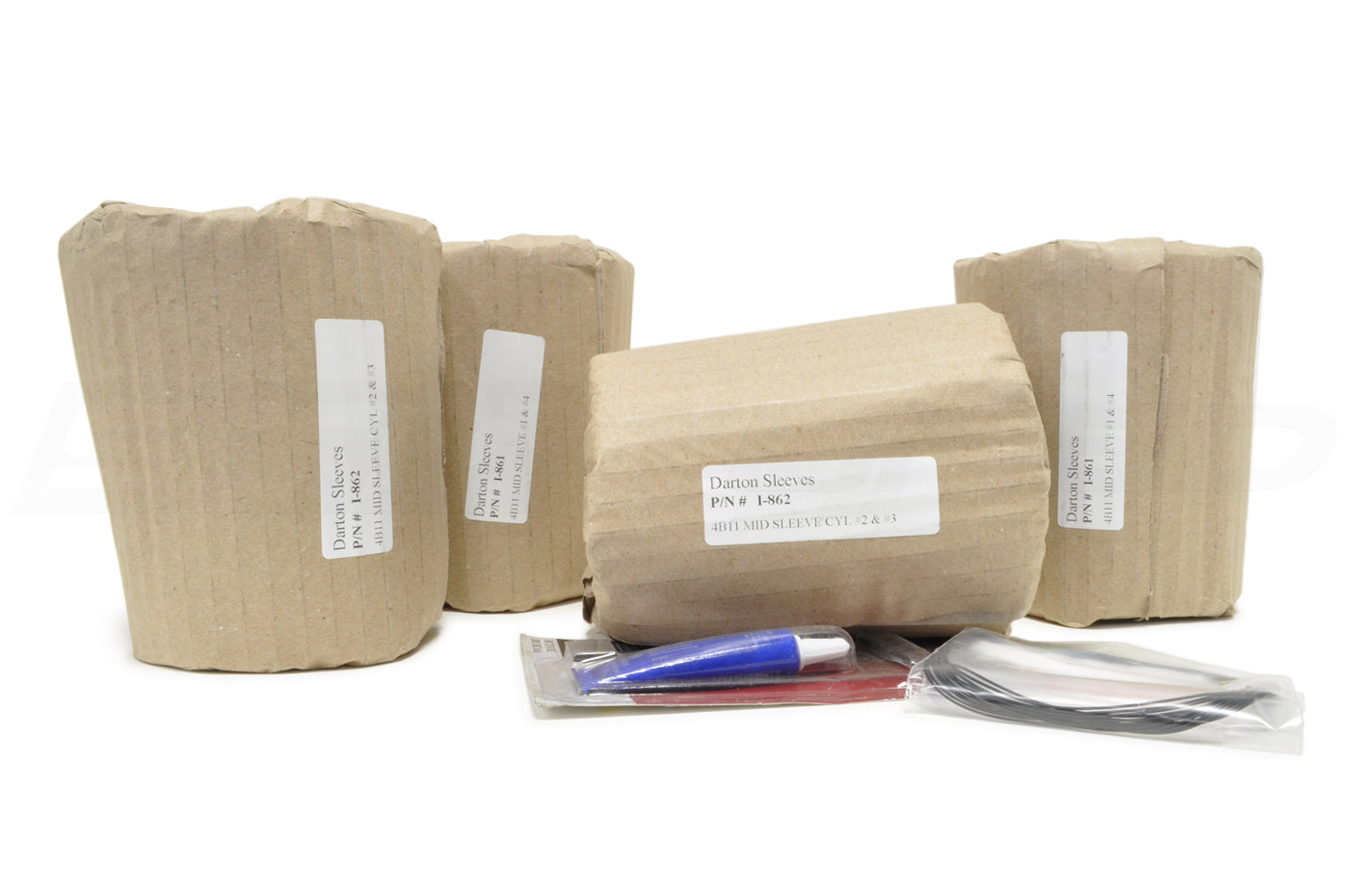

What's Included
- 4 sleeves
- Lube

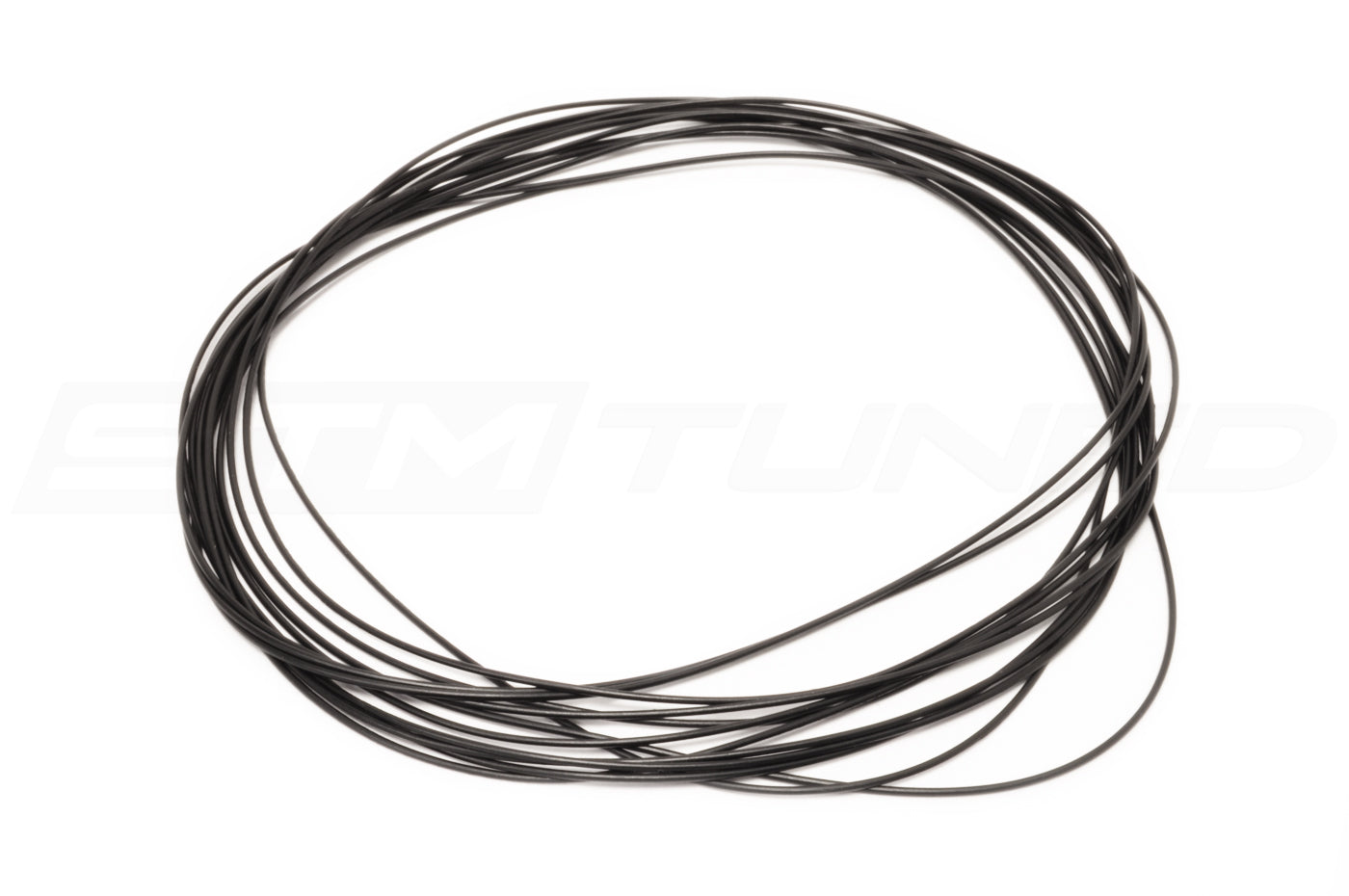

- O-rings
