AEM X-Series Boost / Fuel Pressure Gauge 0-15PSI (30-0309)
$249.95
Skip to product information
$249.95
Product Overview
Built with a slim 0.825" overall depth and 0.200" cup depth, it fits seamlessly into standard gauge pods. The gauge supports both CANbus and analog data outputs, allowing integration with engine management systems or data loggers. Auto-dimming and peak/warning alerts enhance usability under dynamic driving conditions.
Key Features
- 0-15 PSI digital readout for boost and fuel pressure monitoring

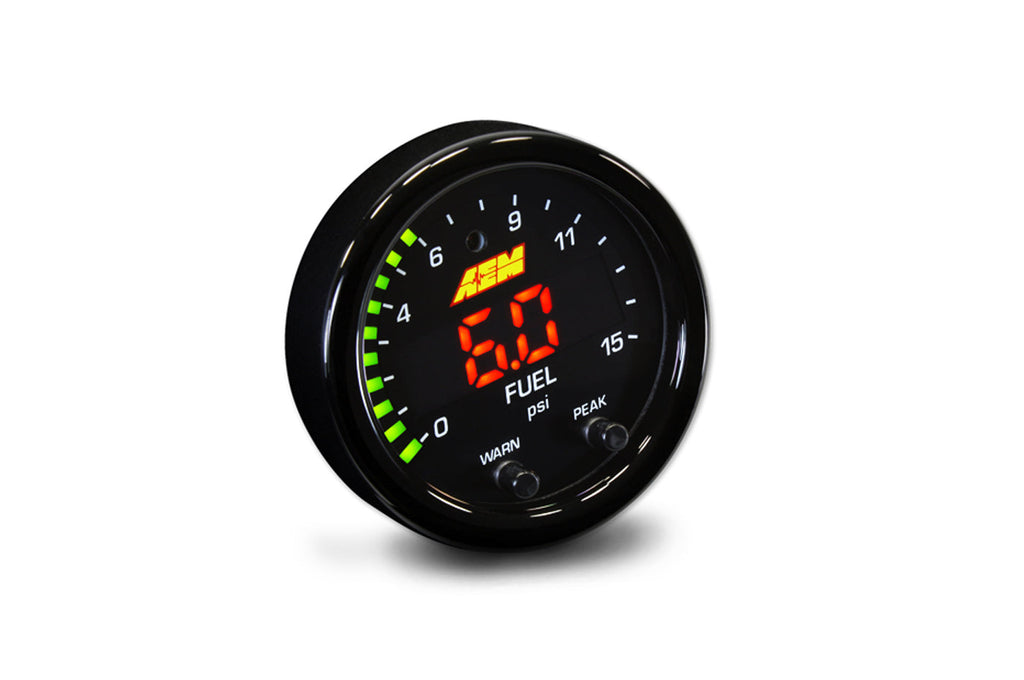

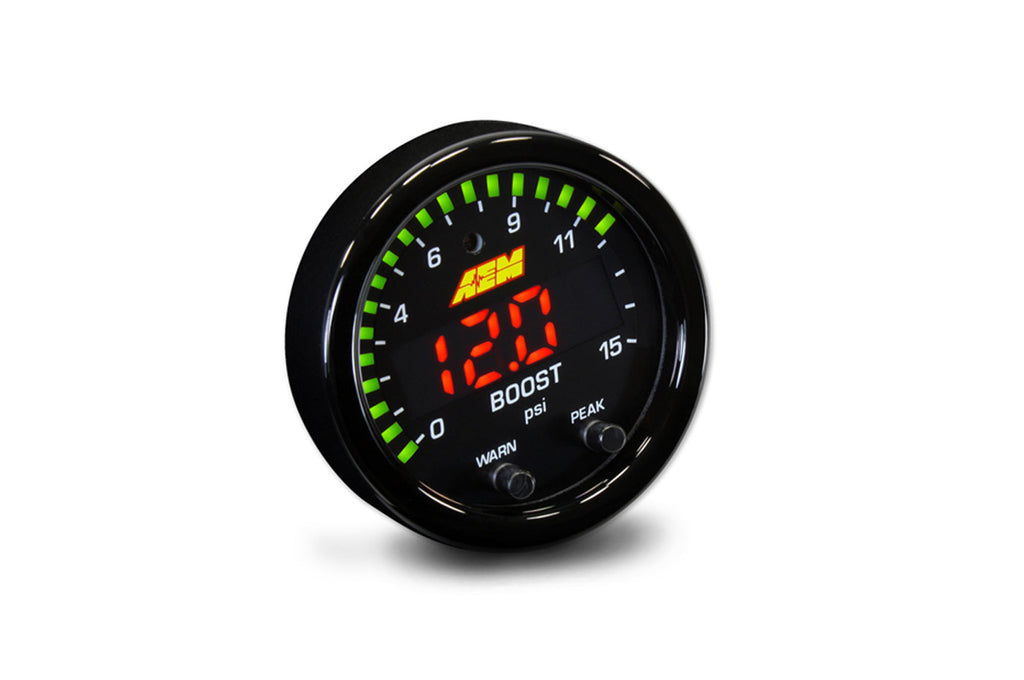

- Reversible faceplate allows switching between boost and fuel pressure displays
- Peak and warning alerts with user-configurable thresholds
- Slim 0.825" overall depth and 0.200" cup depth for easy installation in standard gauge pods
- Dual output support: AEMnet CANbus and 0-5V analog signals for EMS or data logging
- Positive locking connectors ensure secure, vibration-resistant connections
- Includes 35-2131-15 brass sensor with 1/8" T fitting and vacuum line
Specifications
| Measurement Range | 0-15 PSI |
|---|---|
| Display Type | Digital |
| Faceplate Type | Reversible (Boost/Fuel Pressure) |
| Overall Depth | 0.825" |
| Cup Depth | 0.200" |
| Output Options | AEMnet CANbus, 0-5V Analog |
| Sensor Type | 15 PSI Brass |
| Connector Type | Red Positive Locking |
| Vacuum Line | 7/64" x 36" |
Applications
- Supercharged vehicles
- Carbureted engines
- High-performance engine management systems

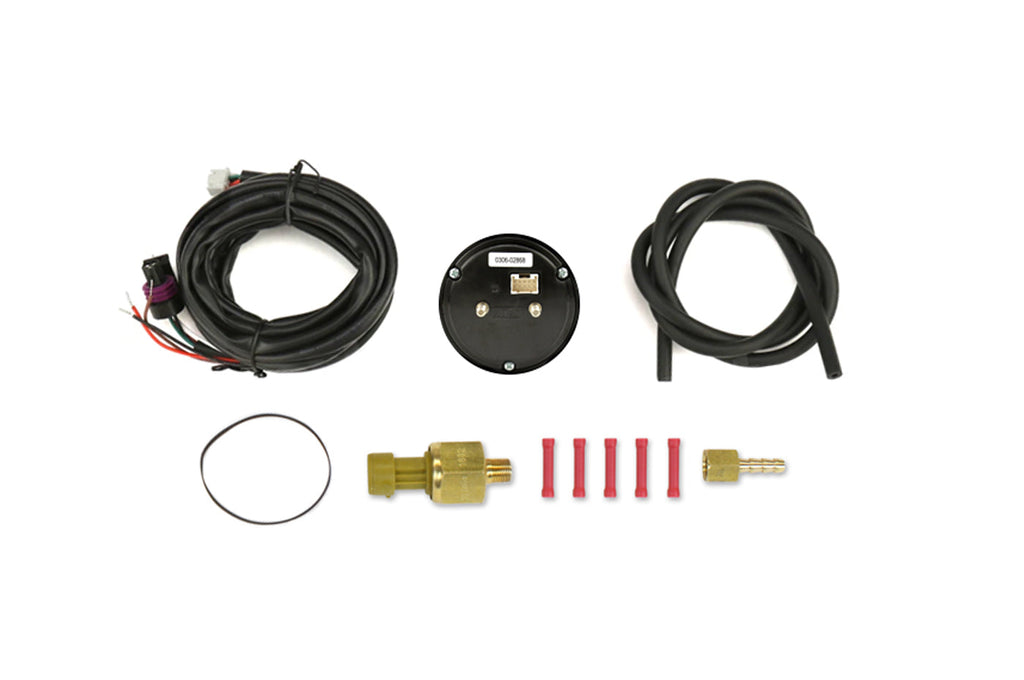

What's Included
- 52mm Gauge
- Red Connectors (35-4302)
- 15 PSI Brass Sensor (35-2131-15)
- Rubber Band (35-8617)
- Harness (35-3434)
- 1/8" T Fitting (35-2147)
- 1/8" NPT Female to 3/16" Barb Adapter (35-2151)
- Vacuum Line 7/64" x 36" (8-161-36)
- Black Bezel
- Black Boost/Fuel Reversible Faceplate
