Product Overview

AEM Water/Methanol 35psi Standard Controller Kit (30-3304)

Verified Details

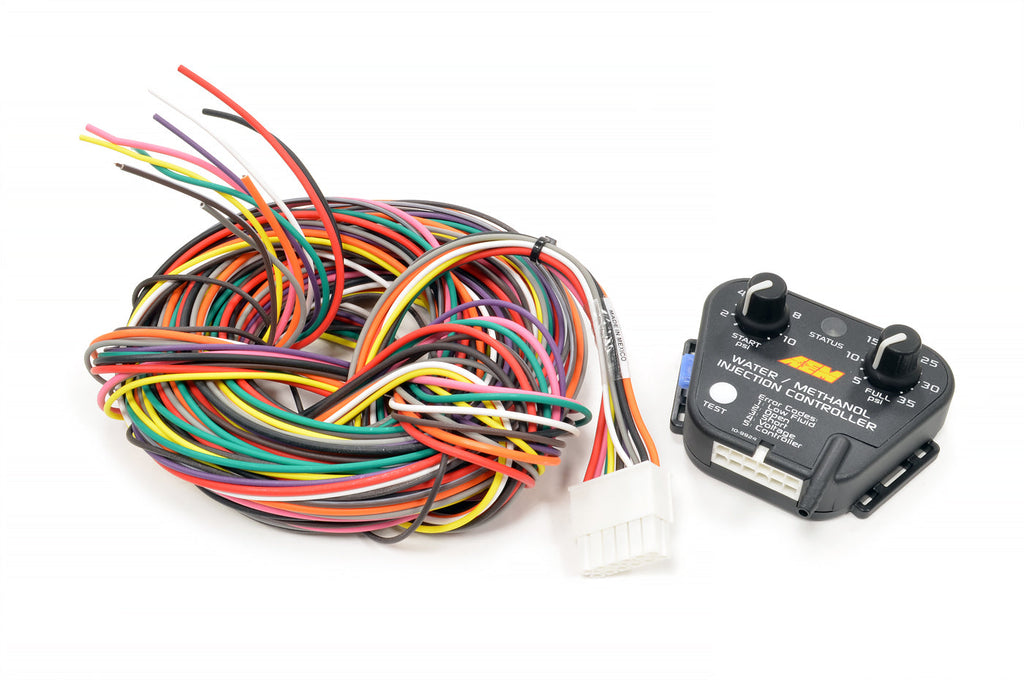

• Purchase Includes
• (1) Harness

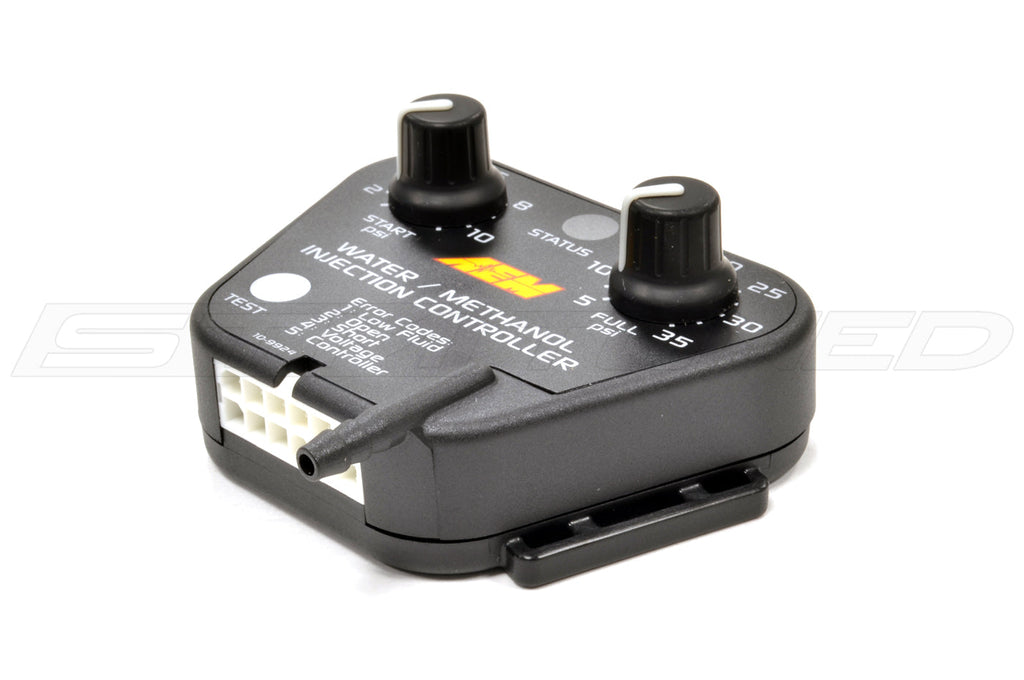

• The new controller designs feature large, turn-resistant knobs and larger numbering to easily set accurate start and full activation points, with covered status LED and test buttons for added splash resistance.
• The Boost Dependent controller housing has a molded-in, barbed nipple to accept a boost hose and a wiring legend on the back.
• Both controller housings feature an easy to access integrated fuse and molded mounting tabs.
• These new controllers retain the "Boost Safe" injection failsafe system, which is an output that will activate if there is a short, loss of continuity or high or low voltage or low fluid condition, allowing users to define their failsafe strategy from something as simple as flashing a warning light to more advanced.
• The new wiring harness is terminated with a positive-lock connector on one end and has color-coded wires to ease installation.
• An additional wire is included for adding an optional on/off solenoid to stop fluid flow when the system is inactive.
• AEM's engineers spent extensive time revamping the controller's flow control strategy for a more linear flow output delivery.
• Three resized injector nozzles are in each kit and allow for improved flow capability (a flow graph is available on our website).
• A more accurate, conductive low level fluid sensor is integrated into the tank and features a positive lock connector with color-matched wires to the wiring harness.
• Harness Features
• Discounts
• AEM water/methanol 35 max PSI standard controller and harness for high compression naturally aspirated and forced induction gas engines.
• Part number: AEM-30-3304
