Product Overview

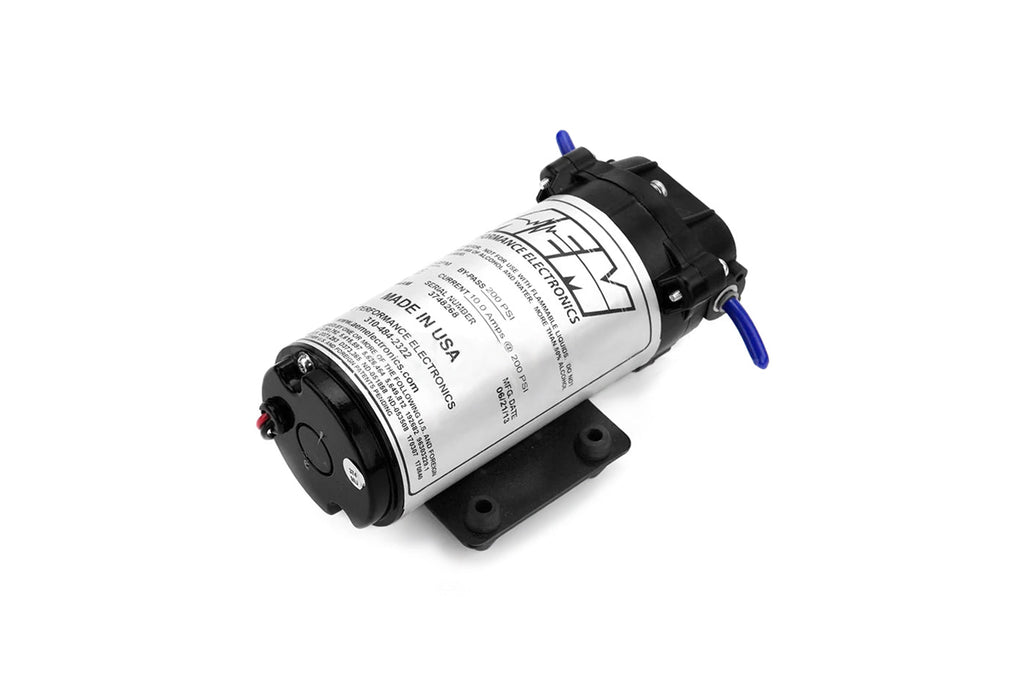

Built with robust components including an internally bypassed pump, Santoprene diaphragm, and EPDM seals, the kit ensures consistent fluid delivery and quiet operation. The precision billet-aluminum injector with check valve and three interchangeable nozzles offer flexibility across a range of horsepower levels.

Key Features

• Designed for turbocharged or supercharged gasoline engines operating at 35 psi or higher
• Includes a 1-gallon tank with a conductive low-fluid sensor and positive-lock connector
• Features a boost-dependent controller with on-board MAP sensor and large adjustment knobs
• Equipped with a failsafe 'Boost Safe' output to prevent over-injection under low-boost conditions
• Includes three interchangeable nozzles for 250cc/min, 500cc/min, and 1,000cc/min flow rates
• Wiring harness terminates with a color-coded positive-lock connector for simplified installation
• Internal bypass design ensures quiet, smooth operation without cycling
• Precision-machined billet-aluminum injector with integral check valve

Specifications

Applications

• Turbocharged gasoline engines
• High-boost forced induction vehicles (35 psi and above)
• Race engines with high-performance naturally aspirated setups

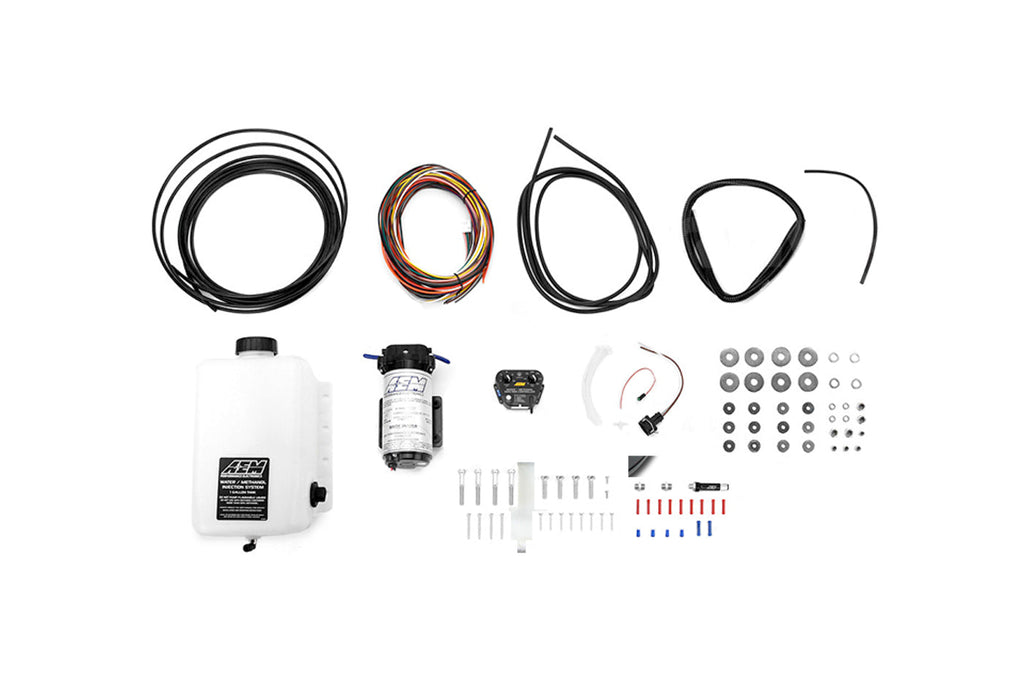

What's Included

• 1-gallon tank (10" x 8.5" x 4.25")
• 20 feet of nylon injection tubing
• Wiring harness with color-coded wires and positive-lock connector
• Boost-dependent controller with on-board MAP sensor
• Three interchangeable injector nozzles (250cc/min, 500cc/min, 1,000cc/min)
• Integrated fuse, status light, and test button
• Optional fluid solenoid wire
