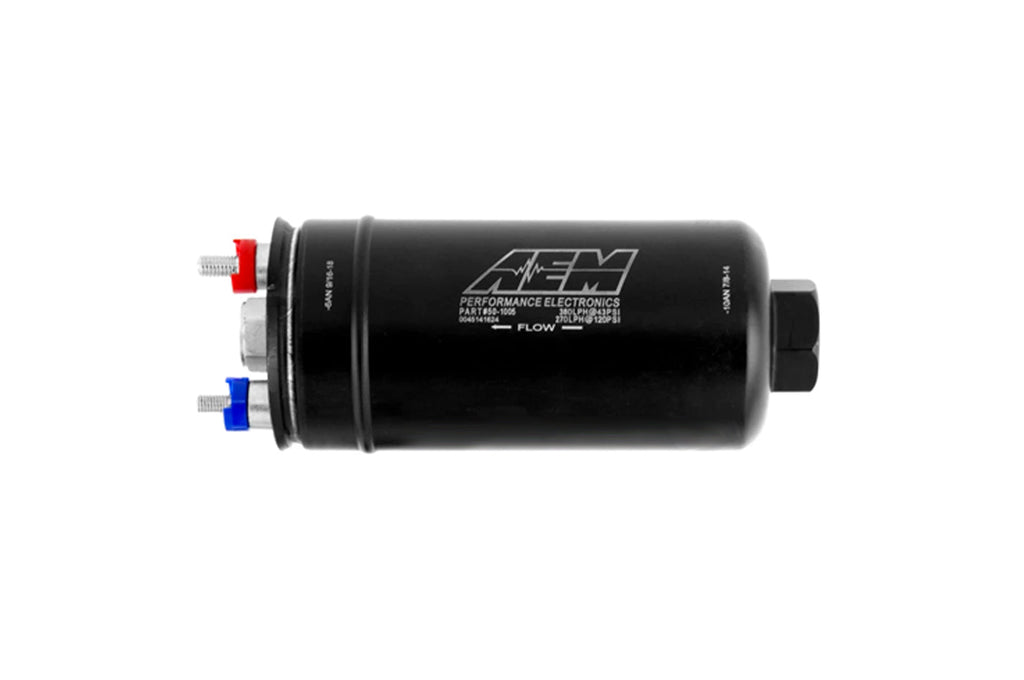

AEM 044-Style 400LPH Inline Fuel Pump (50-1005)
$199.95
Skip to product information
$199.95
Product Overview
The AEM 50-1005 '044 style' inline fuel pump delivers high flow and pressure for demanding EFI applications, supporting up to 860 HP at 30 psi boost. Designed for both naturally aspirated and forced induction vehicles, it uses standard AN fittings for easy integration with existing systems. It flows 400LPH at 40 PSI and maintains performance under high pressure conditions.
Key Features
- Delivers 400LPH (100 gph) at 40 PSI, supporting over 1,200 HP normally aspirated and 860 HP at 30 psi boost

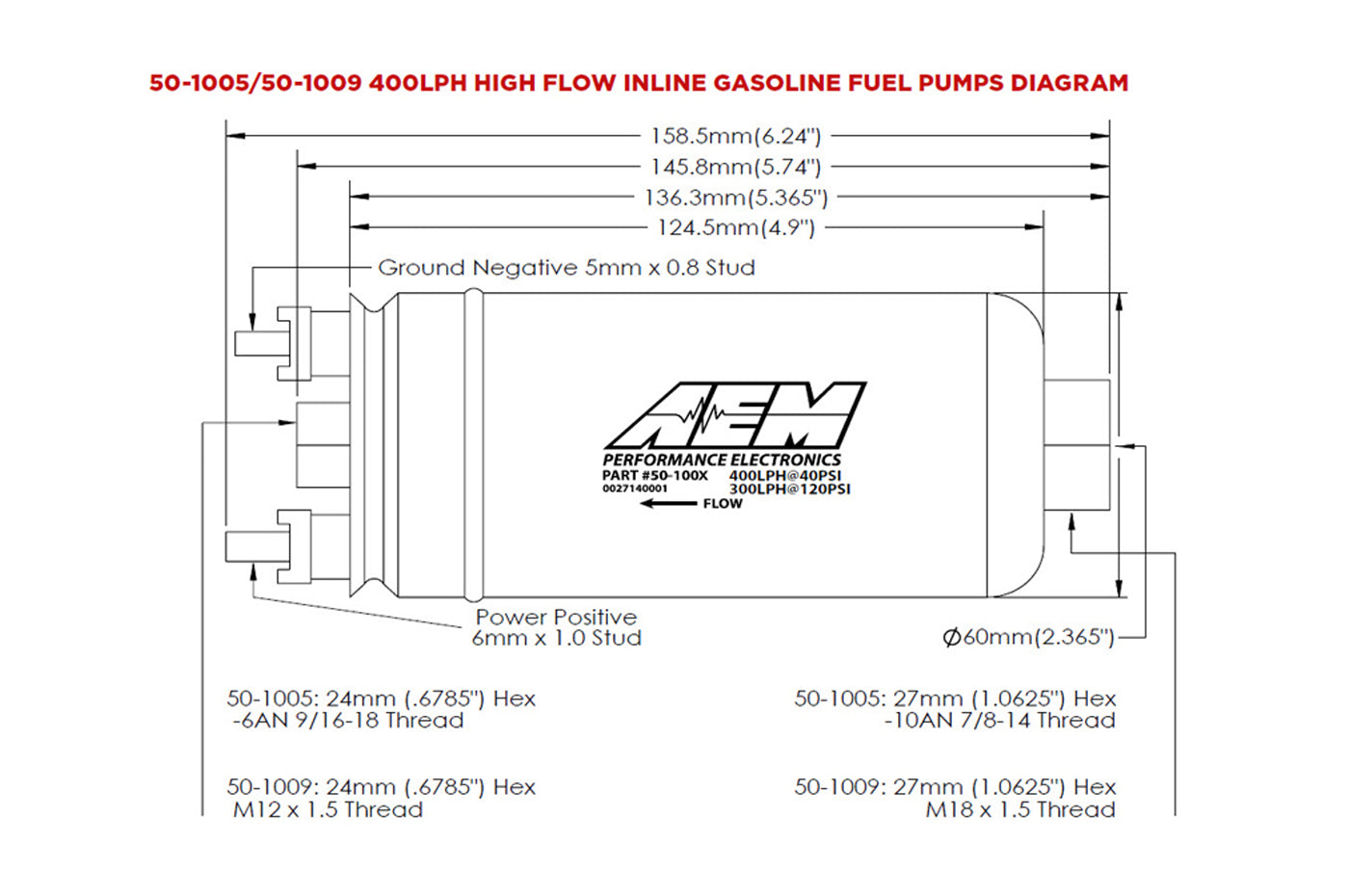

- Features industry-standard '044 style' envelope with -10AN female inlet and -6AN female outlet connections
- Includes integral high-pressure check valve, terminal nuts, and boots for secure installation
- Rated for ethanol-blended fuels (E85/E90) and all gasoline types; pump life reduced with 100% ethanol
- Includes 6AN to 8AN male discharge fitting with check valve for direct compatibility
Specifications

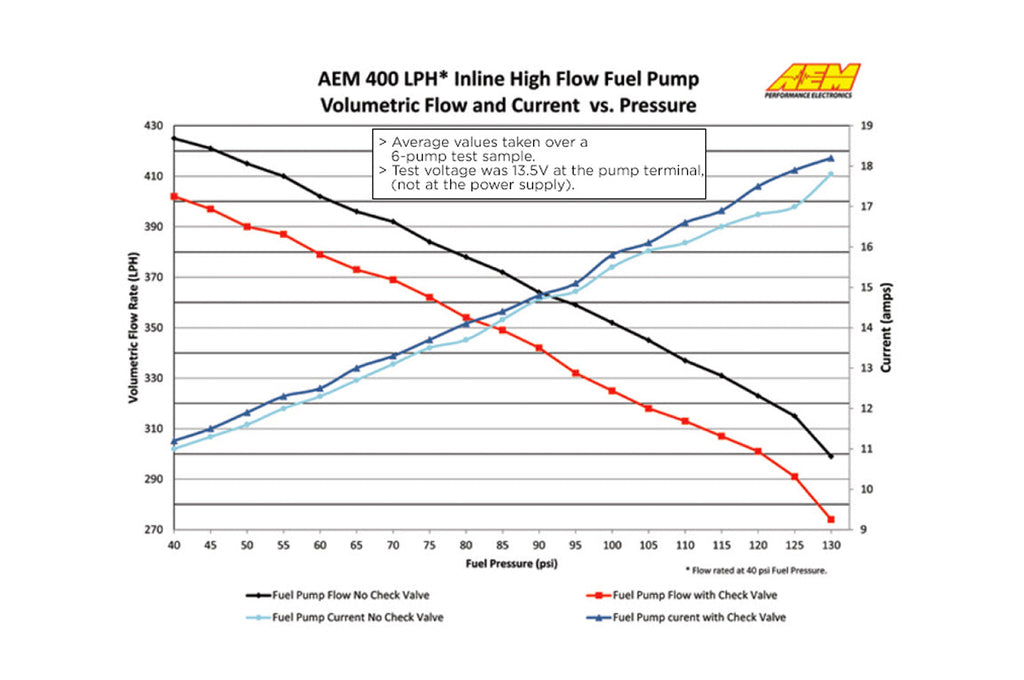

| Flow Rate | 400LPH (100 gph) at 40 PSI |
|---|---|
| Flow Rate | 340LPH (90 gph) at 73 PSI |
| Flow Rate | 270LPH (71 gph) at 120 PSI |
| Inlet Thread | -10AN Female ORB |
| Discharge Thread | -6AN Female ORB |
| Min Voltage Input | 10 volts |
| Max Voltage Input | 18 volts |
| Current Draw (40 psi) | 9.73 amps (no check valve), 10.68 amps (with check valve) |
| Current Draw (120 psi) | 16.07 amps (no check valve), 17.13 amps (with check valve) |
| Fuse Rating | 25 amps |
Applications
- High performance naturally aspirated EFI vehicles
- Forced induction EFI vehicles
- Universal application for EFI systems

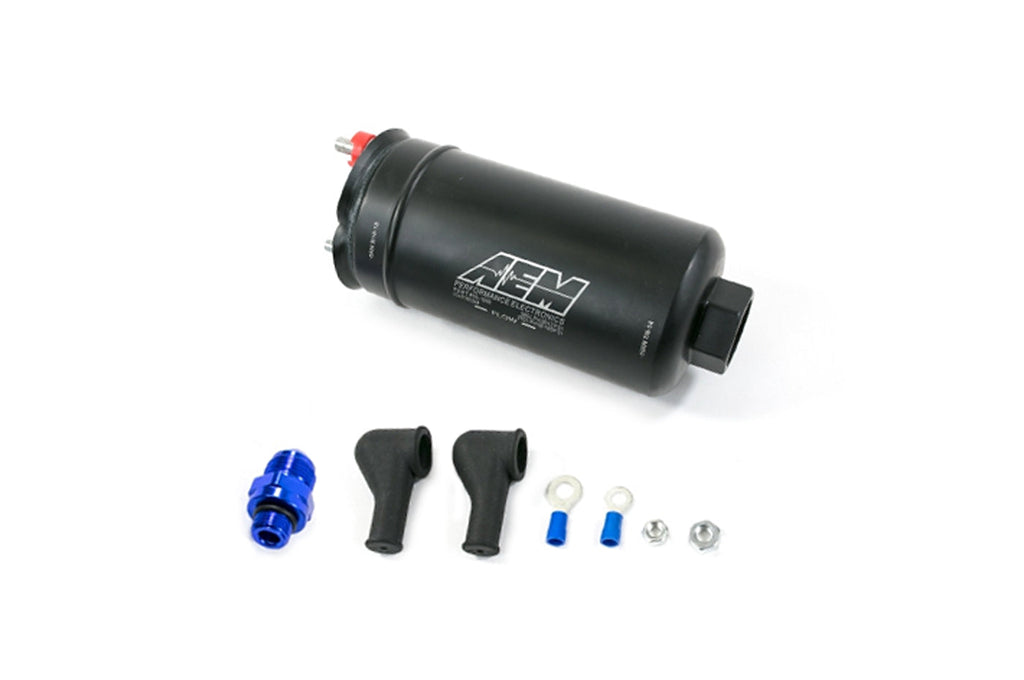

What's Included
- Fuel Pump
- 6AN to 8AN Male Discharge Fitting With Check Valve
- Terminal Nuts & Boots
- Instructions
