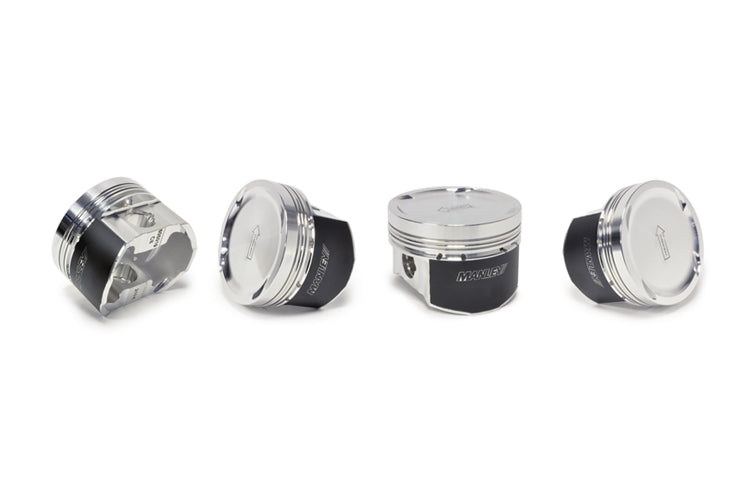

624300CE-4 Manley Pistons 4B11 Turbo Tuff for Evo X
$993.67
Skip to product information
$993.67
Product Overview
Review the verified application, specification, and package details for 624300CE-4 Manley Pistons 4B11 Turbo Tuff for Evo X below.
Key Features
- Moly-coated skirt reduces friction and wear under load
- Includes premium steel top rings with Napier seconds and round wire locks
- Features pressure balance groove for improved engine balance
- Accommodates +1mm valve sizes for enhanced valve clearance
- Wrist pins are 2.250" long with 23mm diameter for secure fit
- Recommended piston clearance of .0035" at 1.100" from oil ring bottom
Specifications
| Part Number | 624300CE-4 |
|---|---|
| Bore Size | 86mm (Standard Bore) |
| Stroke | 94mm Stroker (2.2L) |
| Compression Ratio | 10.0:1 |
| Dome Volume | -3.5 cc |
| Cylinder Head cc | 49 cc |
| Piston Type | Dish |
| Weight | 345 Grams |
| Pin Type | Turbo Tuff |
| Wrist Pin Length | 2.250" (23mm diameter) |
| Ring Set | 46860-4 |
| Recommended Clearance | .0035" at 1.100" from oil ring bottom |
Applications
- Mitsubishi 4B11
- 2008-2015 Evolution X
What's Included
- 4 Pistons
- 4 Piston Ring Sets
- 4 Wrist Pins
- 4 Spiral Locks
