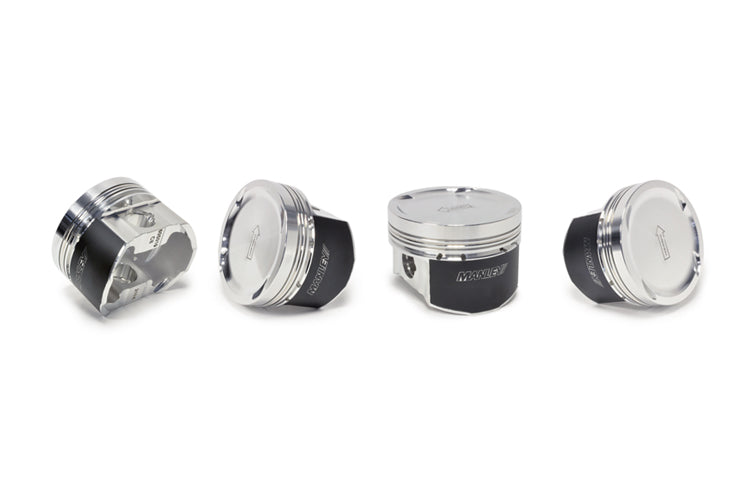

624205CE-4 Manley Pistons 4B11 Turbo Tuff for Evo X
$993.67
Skip to product information
$993.67
Product Overview
Review the verified application, specification, and package details for 624205CE-4 Manley Pistons 4B11 Turbo Tuff for Evo X below.
Key Features
- Includes premium steel top rings with Napier seconds and round wire locks
- Features a pressure balance groove for improved engine balance
- Accommodates +1mm valve sizes for enhanced airflow
- Wrist pins are 2.250" long (23mm diameter) with offset design for quiet start-ups
- Recommended piston clearance of .0035" measured at 1.100" from oil ring bottom
Specifications
| Part Number | 624205CE-4 |
|---|---|
| Rod Length | 143.66 mm |
| Stroke | 94 mm |
| Compression Ratio | 9.0:1 |
| Dome Volume | -11 cc |
| Cylinder Head Volume | 49 cc |
| Piston Weight | 345 grams |
| Pin Type | Turbo Tuff |
| Wrist Pin Length | 2.250" (23 mm) |
| Ring Set | 46865-4 |
| Piston Type | Dish |
| Wall Thickness | .210" (9310 Alloy) |
| Clearance (Recommended) | .0035" at 1.100" from oil ring bottom |
Applications
- Mitsubishi 4B11
- 2008-2015 Evolution X

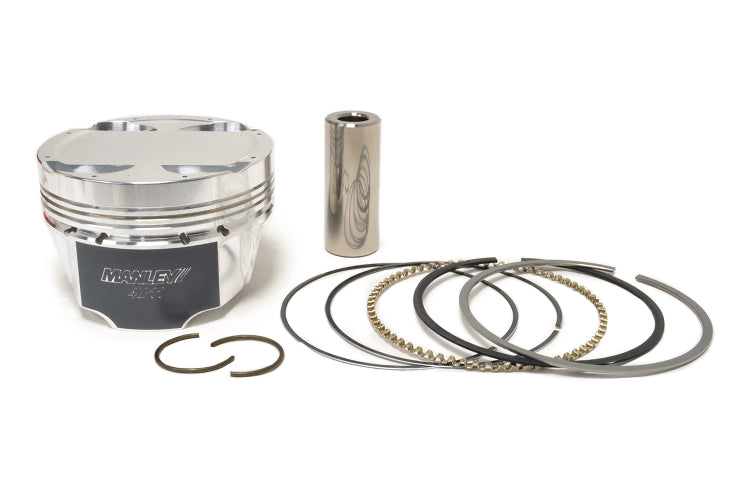

What's Included
- 4 Pistons
- 4 Piston Ring Sets
- 4 Wrist Pins
- 4 Spiral Locks
