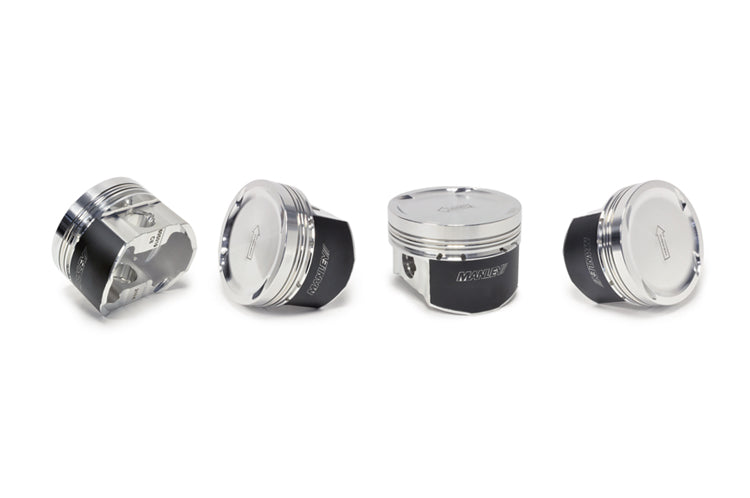

624200CE-4 Manley Pistons 4B11 Turbo Tuff for Evo X
$993.67
Skip to product information
$993.67
Product Overview
Review the verified application, specification, and package details for 624200CE-4 Manley Pistons 4B11 Turbo Tuff for Evo X below.
Key Features
- Moly-coated skirts reduce friction and improve engine longevity
- Includes premium steel top rings with Napier seconds and round wire locks
- Features a pressure balance groove for improved combustion efficiency
- Accommodates +1mm valve sizes for enhanced valve clearance
- Wrist pins include 2.250" length with 23mm diameter for secure fit
Specifications
| Part Number | 624200CE-4 |
|---|---|
| Material | 2618 Alloy |
| Bore Size | 86mm |
| Stroke | 94mm |
| Compression Ratio | 9.0:1 |
| Dome Volume | -11 cc |
| Cylinder Head Volume | 49 cc |
| Piston Weight | 339 grams |
| Rod Length | 143.66 mm |
| Pin Type | Turbo Tuff |
| Wrist Pin Diameter | 23mm |
| Wrist Pin Length | 2.250" |
| Ring Set | 46860-4 |
| Piston Type | Dish |
Applications
- Mitsubishi 4B11
- 2008-2015 Evolution X

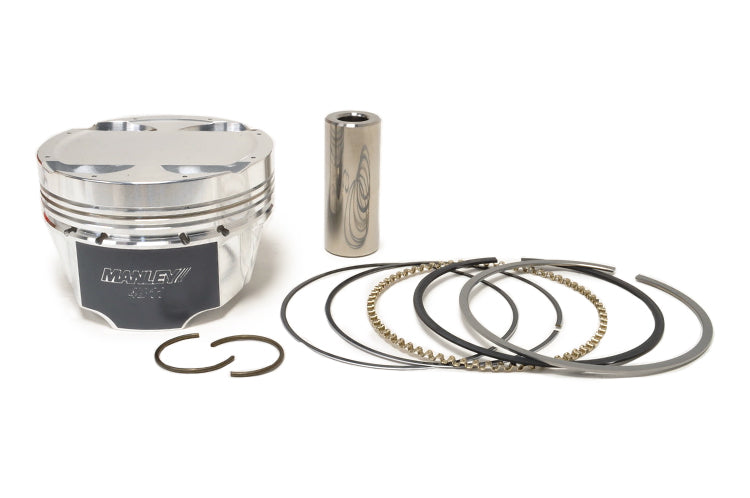

What's Included
- 4 Pistons
- 4 Piston Ring Sets
- 4 Wrist Pins
- 4 Spiral Locks
