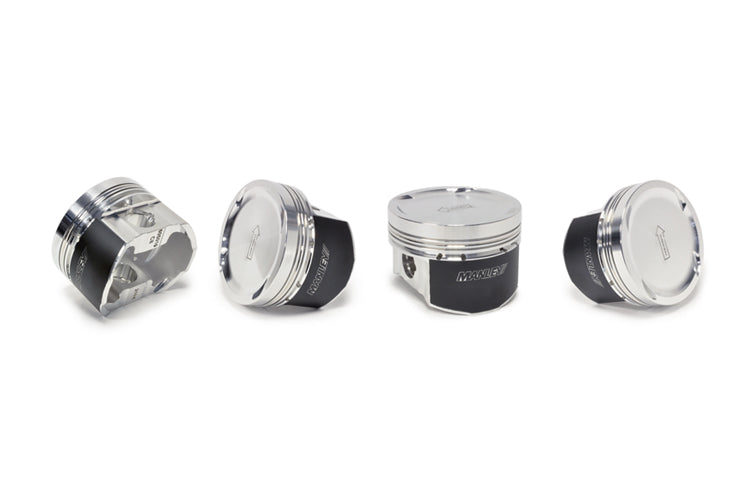

614300CE-4 Manley Pistons 4B11 Turbo Tuff for Evo X
$993.67
Skip to product information
$993.67
Product Overview
Review the verified application, specification, and package details for 614300CE-4 Manley Pistons 4B11 Turbo Tuff for Evo X below.
Key Features
- Dome piston with +2cc dome volume and 10.0:1 compression ratio
- Features moly-coated skirts and premium steel top rings with Napier seconds
- Includes spiral locks and wrist pins with 2.250" length (23mm diameter)
- Accommodates +1mm valve sizes for engine compatibility
Specifications
| Part Number | 614300CE-4 |
|---|---|
| Bore Size | 86mm (Standard Bore) |
| Stroke | 86mm Standard Stroke (2.0L) |
| Compression Ratio | 10.0:1 |
| Dome Volume | +2 cc |
| Cylinder Head cc | 49 cc |
| Piston Type | Dome |
| Weight | 384 Grams |
| Pin Diameter | 2.250" (23mm) |
| Rod Length | 143.66 mm |
| Wrist Pin Length | 2.250" (23mm) |
| Ring Set | 46860-4 |
| Piston Wall | .210" (9310 Alloy) |
| Recommended Clearance | .0035" measured 1.100" from bottom of oil ring |
Applications
- Mitsubishi 4B11
- 2008-2015 Evolution X

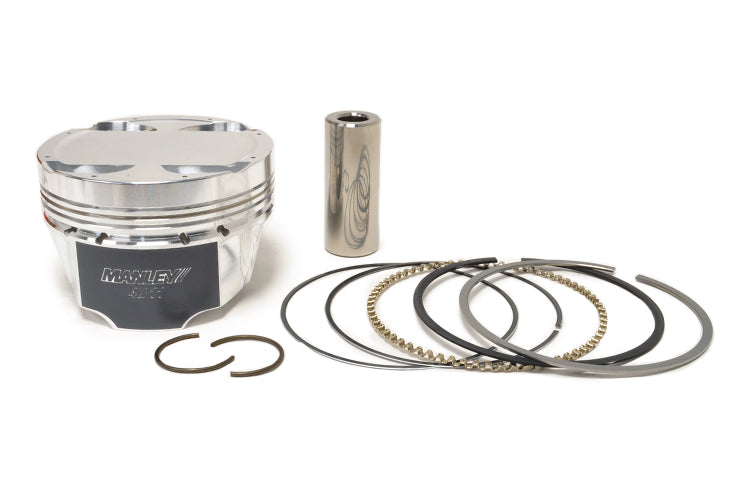

What's Included
- 4 Pistons
- 4 Piston Ring Sets
- 4 Wrist Pins
- 4 Spiral Locks
