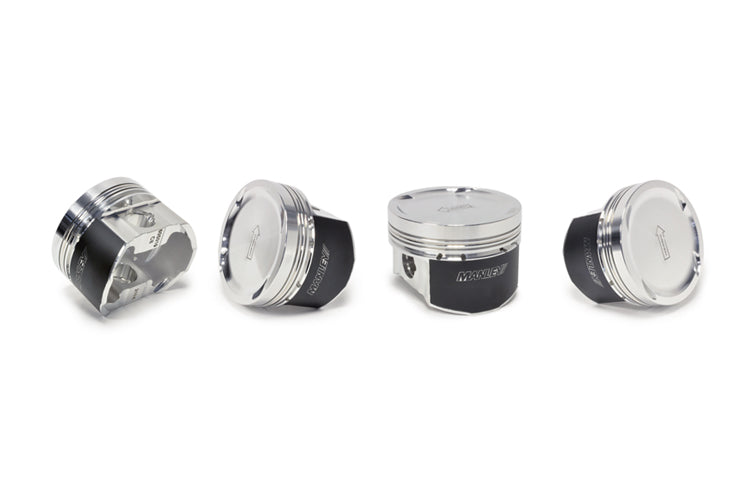

614200CE-4 Manley Pistons 4B11 Turbo Tuff for Evo X
$993.67
Skip to product information
$993.67
Product Overview
Review the verified application, specification, and package details for 614200CE-4 Manley Pistons 4B11 Turbo Tuff for Evo X below.
Key Features
- Designed for 4B11 Evolution X engines
- 2618 high strength alloy with moly-coated skirts
- Dish piston with -5 cc dome volume and 9.0:1 compression ratio
- Includes 4 piston ring sets with premium steel top rings and Napier seconds
- Wrist pins feature 2.250" length and 23mm diameter
Specifications
| Part Number | 614200CE-4 |
|---|---|
| Bore Size | 86mm (Standard Bore) |
| Stroke | 86mm Standard Stroke (2.0L) |
| Compression Ratio | 9.0:1 |
| Dome Volume | -5 cc |
| Cylinder Head cc | 49 cc |
| Piston Type | Dish |
| Wall Thickness | .210" (9310 Alloy) |
| Rod Length | 143.66 mm |
| Comp Distance | 1.313" |
| Weight | 373 Grams |
| Wrist Pin Length | 2.250" (23mm diameter) |
| Ring Set | 46860-4 |
| Piston Clearance | .0035" measured 1.100" from bottom of oil ring |
Applications
- Mitsubishi 4B11
- 2008-2015 Evolution X
What's Included
- 4 Pistons
- 4 Piston Ring Sets
- 4 Wrist Pins
- 4 Spiral Locks
