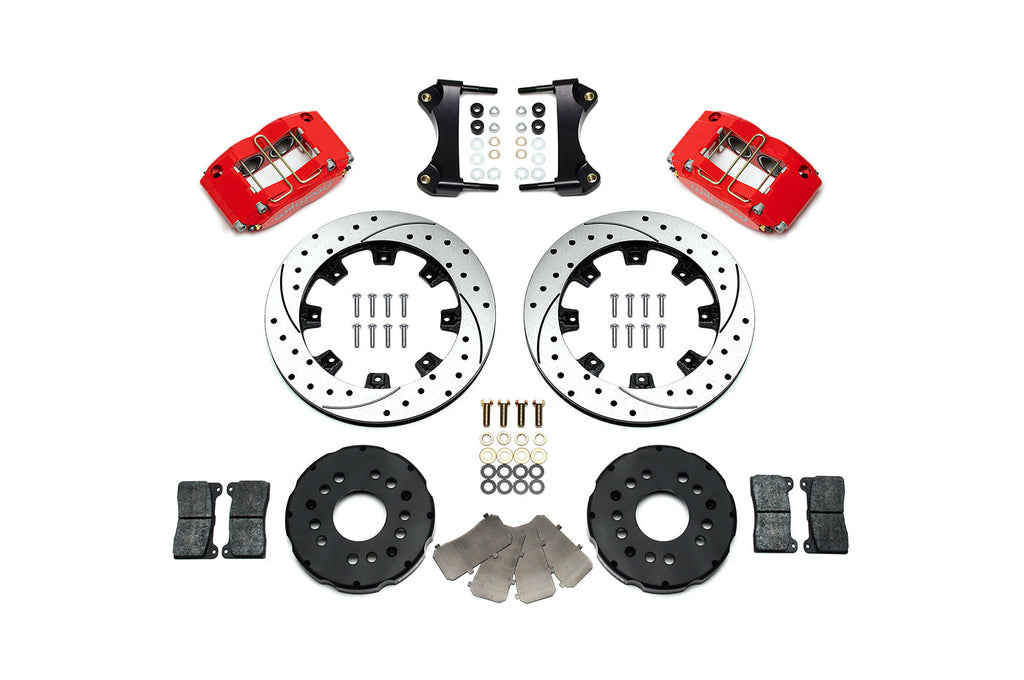

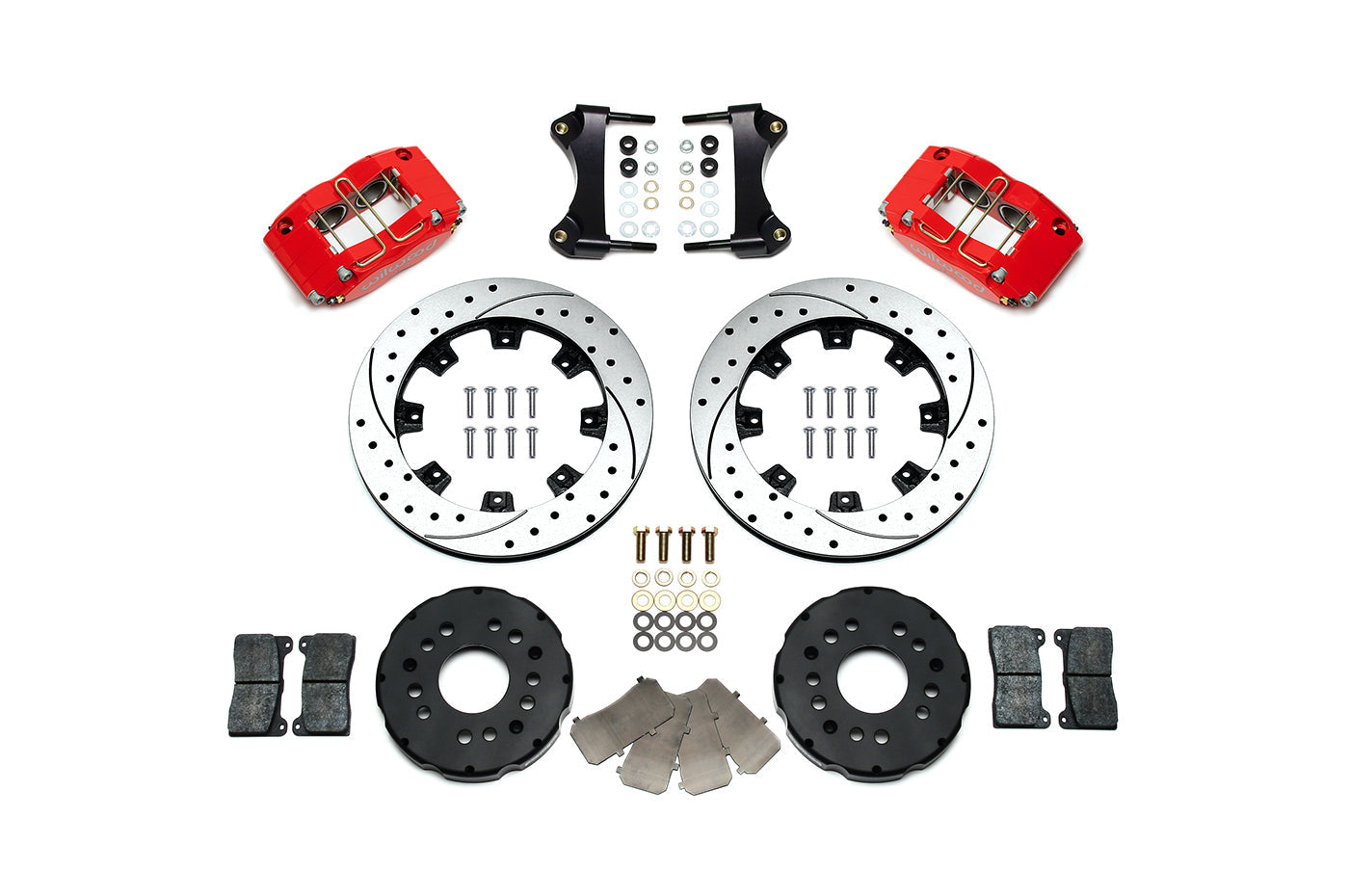

Wilwood Dynapro big front brake kit for 2G DSM is available with red or black calipers and your choice of standard or slotted/drilled black rotors. Please note, you will also need the brake lines linked below which are sold separately.

Vehicle Fitment:
• 1995-1999 Eclipse GST/GSX
• 1995-1998 Talon TSi

Required for Install:
Wilwood 2G DSM Front Brake Lines (220-8293) (sold separately)

Brake Kit Installation:
PDF Install Instructions

Quick Specs:
• 15" minimum wheel diameter required

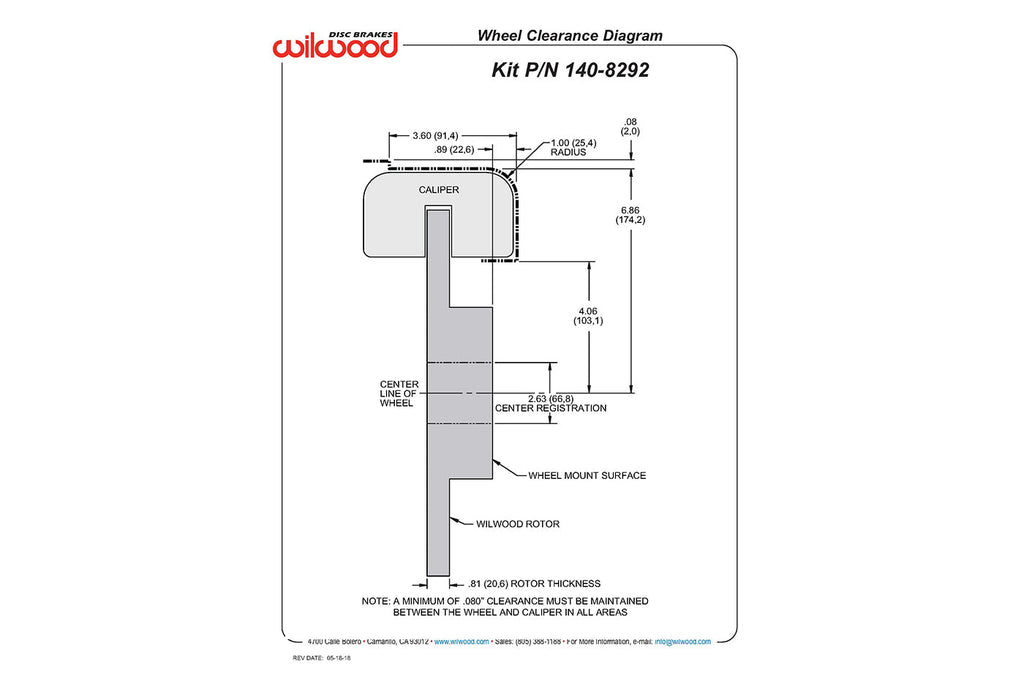

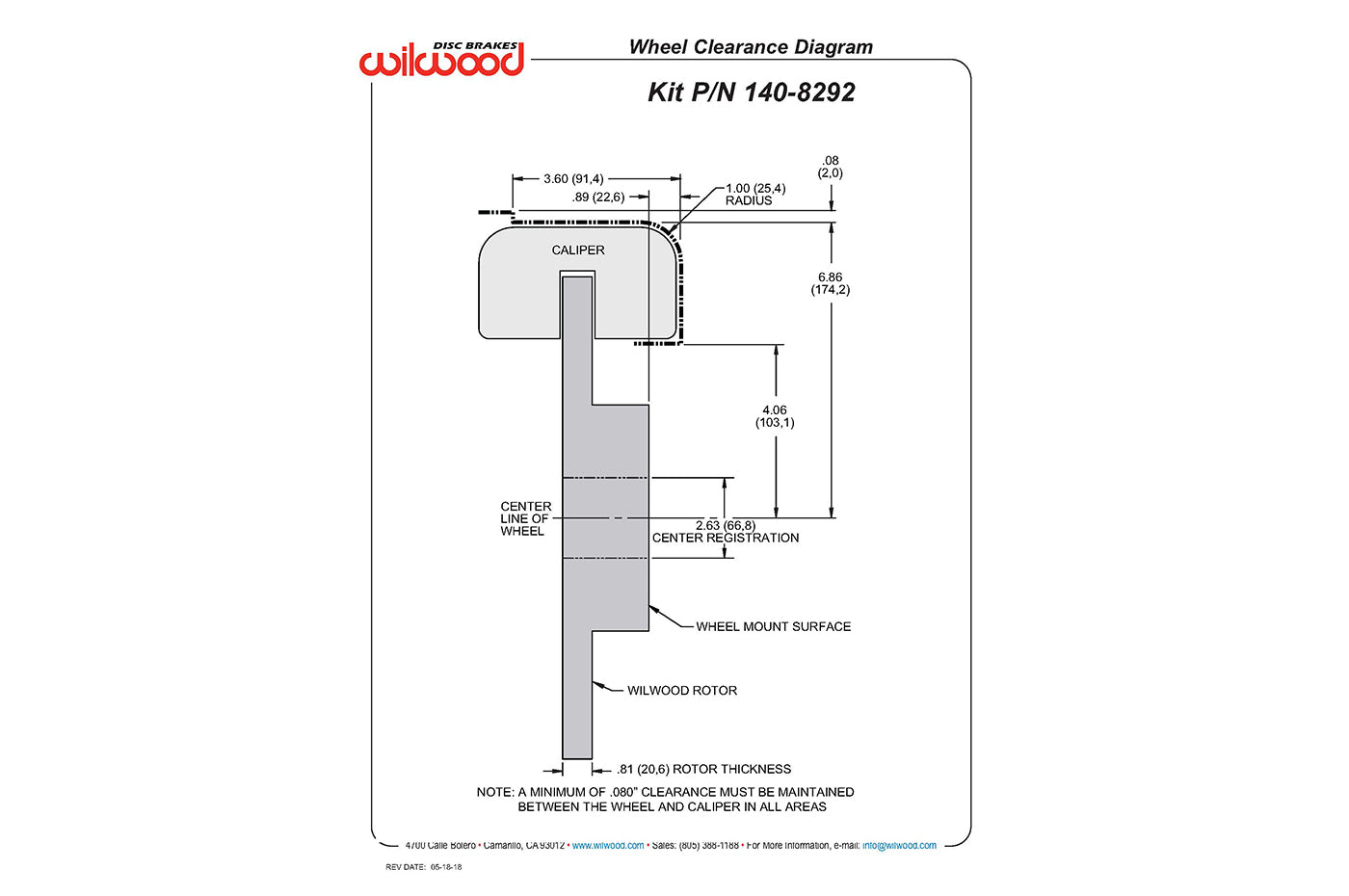

• This brake kit may fit 15-inch wheels. *Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel
• Rotor Diameter 12.19"
• Rotor Thickness 0.81"
• 4 Piston Calipers
• BP-10 Brake Pads 150-8946

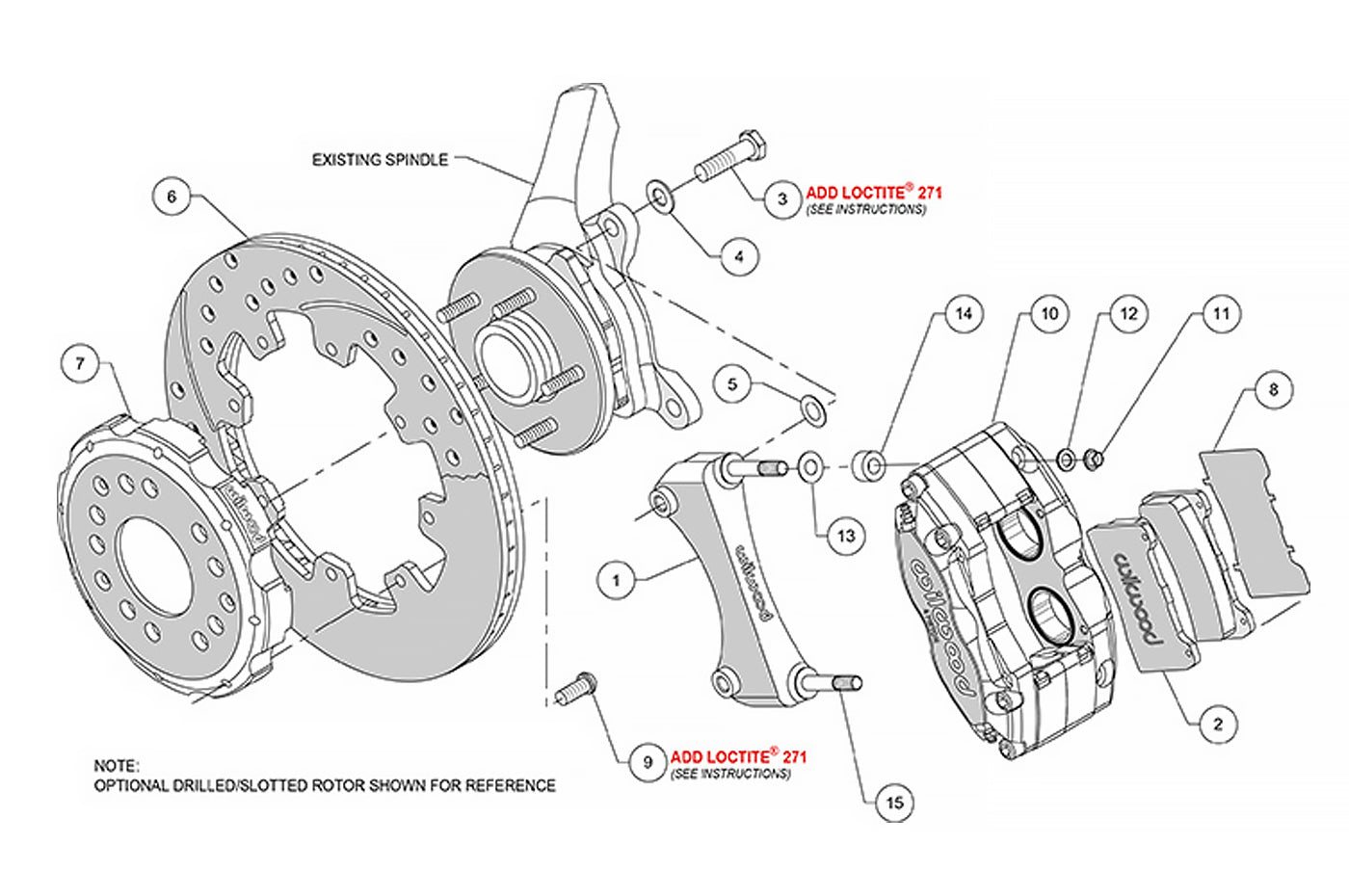

Included/Replacement Part Numbers:
All parts of the brake kits are available for maintenance or replacement.
• Caliper Mounting Brackets (250-8321)
• BP-10 Brake Pads (150-8946)
• Bolt, 7/16-20 x 1.25" Hex Head (230-9897)
• Washer, .453" I.D. x .750" O.D. x .063" Thick (240-11101)
• Shim, .016" Thick (240-5680)
• Rotor Hat (170-8320)
• Anti-Squeal Shims (300-12177)
• Bolt, 5/16-18 x 1.00" Long, Button Head Torx (230-11935)
• Nut, 3/8-24 Self-Locking, 6 Point (230-16550)
• Washer, .391" I.D. x .625" O.D. x .063" Thick (240-10190)
• Shim, .016" Thick (240-10306)
• Spacer, .425" Long (300-7352)
• Stud, 3/8-16 x 3/8-24 x 3.15" Long (pre-installed in bracket) (230-9079)
• Calipers (see below)
• Rotors (see below)

LH vs RH?
Left Hand and Right Hand is determined by driver position. From the driver seat, which side is it on?
