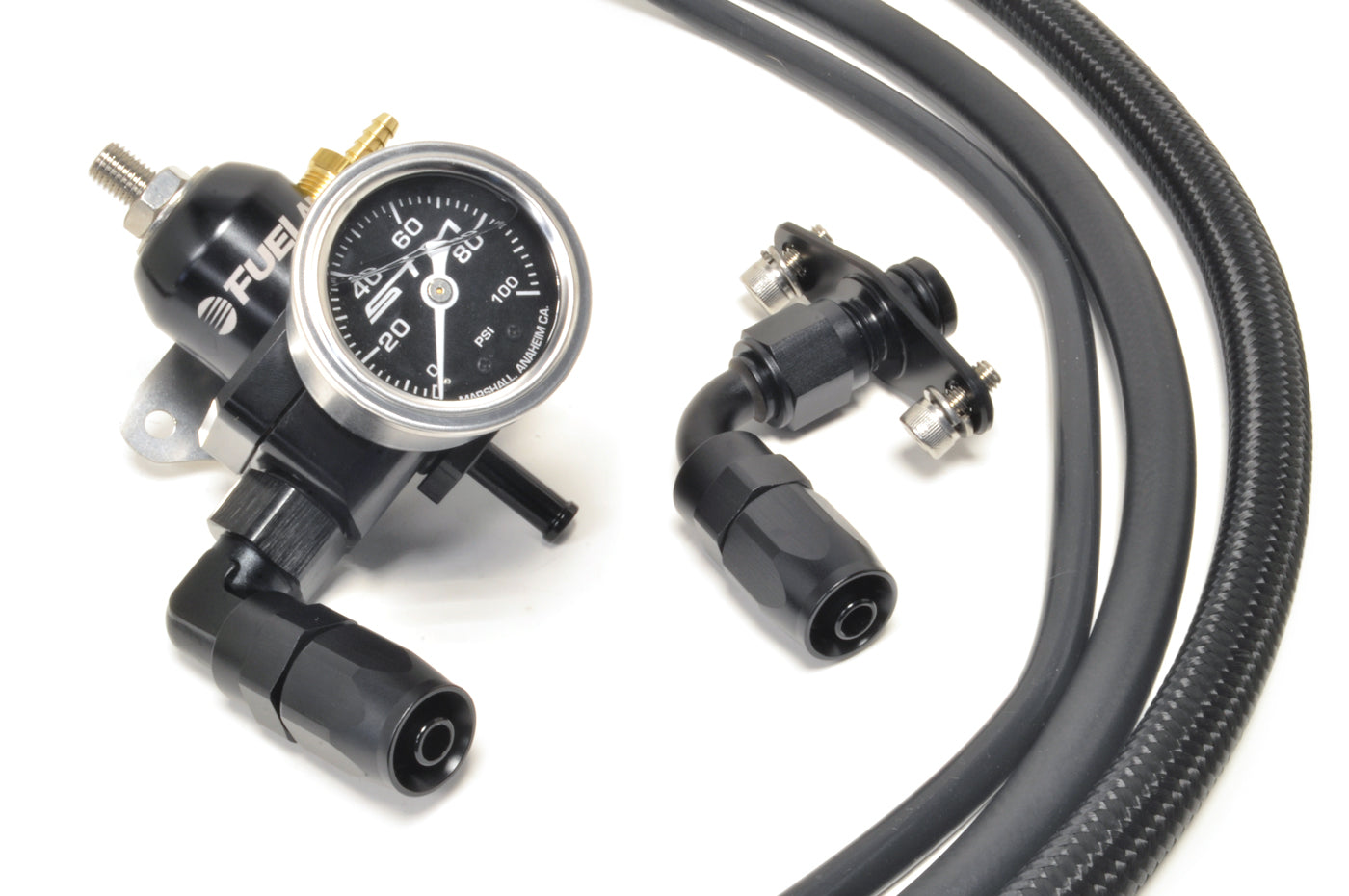

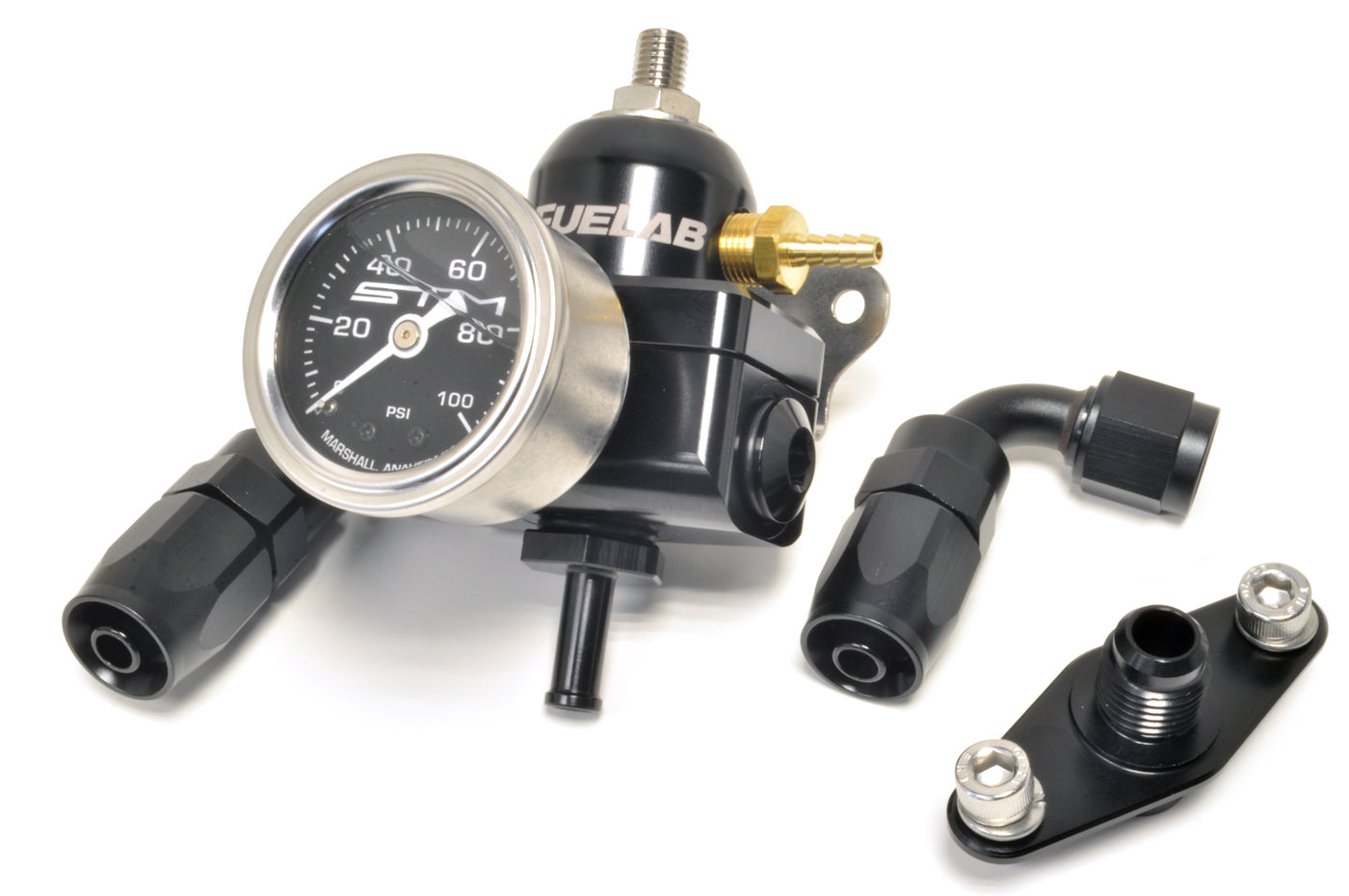

STM 1G DSM Fuel Pressure Regulator Kit
Black Fuelab Mini
$395.00
Skip to product information
The STM 1G DSM fuel pressure regulator kit includes all fittings, hardware and line to go from your fuel rail to factory-style or -6AN outlet regulator and back to the return line. Includes the STM 1G fuel rail fitting for a direct fit to your fuel rail. The mini Fuelab regulator is available in your choice of 6 colors and of course, the whole kit is E85 safe!
We also include the miscellaneous clamps, zipties and stainless bolts you'll need to save a trip to the hardware store. If you need PFTE tape, it's also available linked below. The included hoses are long enough any custom routing and can be trimmed to suit your setup.
Vehicle Fitment:
1990-1994 Eclipse GST/GSX
1990-1994 Talon TSi
1990-1994 Laser RS
• 1G kit includes long fuel rail fitting (FRF-6L)
Features:
• Includes every part needed to bolt-in and go!
• Direct fit fuel rail fitting
• Soft nylon braided hose will not scratch like stainless
• Silicone-filled fuel pressure gauge
• Choice of black, red, blue, purple, gold or green regulator
• 100% E85 safe
Install Notes:
• The blue O-rings are not needed.
• The brass NPT plug can be used if you want to plug off the gauge.
• Thread Tape should be used on the gauge and the brass fitting.
• Do NOT use thread tape on AN fittings!
• We recommend: this PFTE Tape for the brass vacuum fitting and gauge.
Old Part Numbers:
STM-1GDSM-FPRK-51502-1, STM-1GDSM-FPRK-51502-2, STM-1GDSM-FPRK-51502-3, STM-1GDSM-FPRK-51502-4, STM-1GDSM-FPRK-51502-5, STM-1GDSM-FPRK-51502-6, STM-1GDSM-FPRK-53501-1, STM-1GDSM-FPRK-53501-2, STM-1GDSM-FPRK-53501-3, STM-1GDSM-FPRK-53501-4, STM-1GDSM-FPRK-53501-5, STM-1GDSM-FPRK-53501-6
$395.00
We also include the miscellaneous clamps, zipties and stainless bolts you'll need to save a trip to the hardware store. If you need PFTE tape, it's also available linked below. The included hoses are long enough any custom routing and can be trimmed to suit your setup.
Vehicle Fitment:
1990-1994 Eclipse GST/GSX
1990-1994 Talon TSi
1990-1994 Laser RS
• 1G kit includes long fuel rail fitting (FRF-6L)
Features:
• Includes every part needed to bolt-in and go!
• Direct fit fuel rail fitting
• Soft nylon braided hose will not scratch like stainless
• Silicone-filled fuel pressure gauge
• Choice of black, red, blue, purple, gold or green regulator
• 100% E85 safe
Install Notes:
• The blue O-rings are not needed.
• The brass NPT plug can be used if you want to plug off the gauge.
• Thread Tape should be used on the gauge and the brass fitting.
• Do NOT use thread tape on AN fittings!
• We recommend: this PFTE Tape for the brass vacuum fitting and gauge.

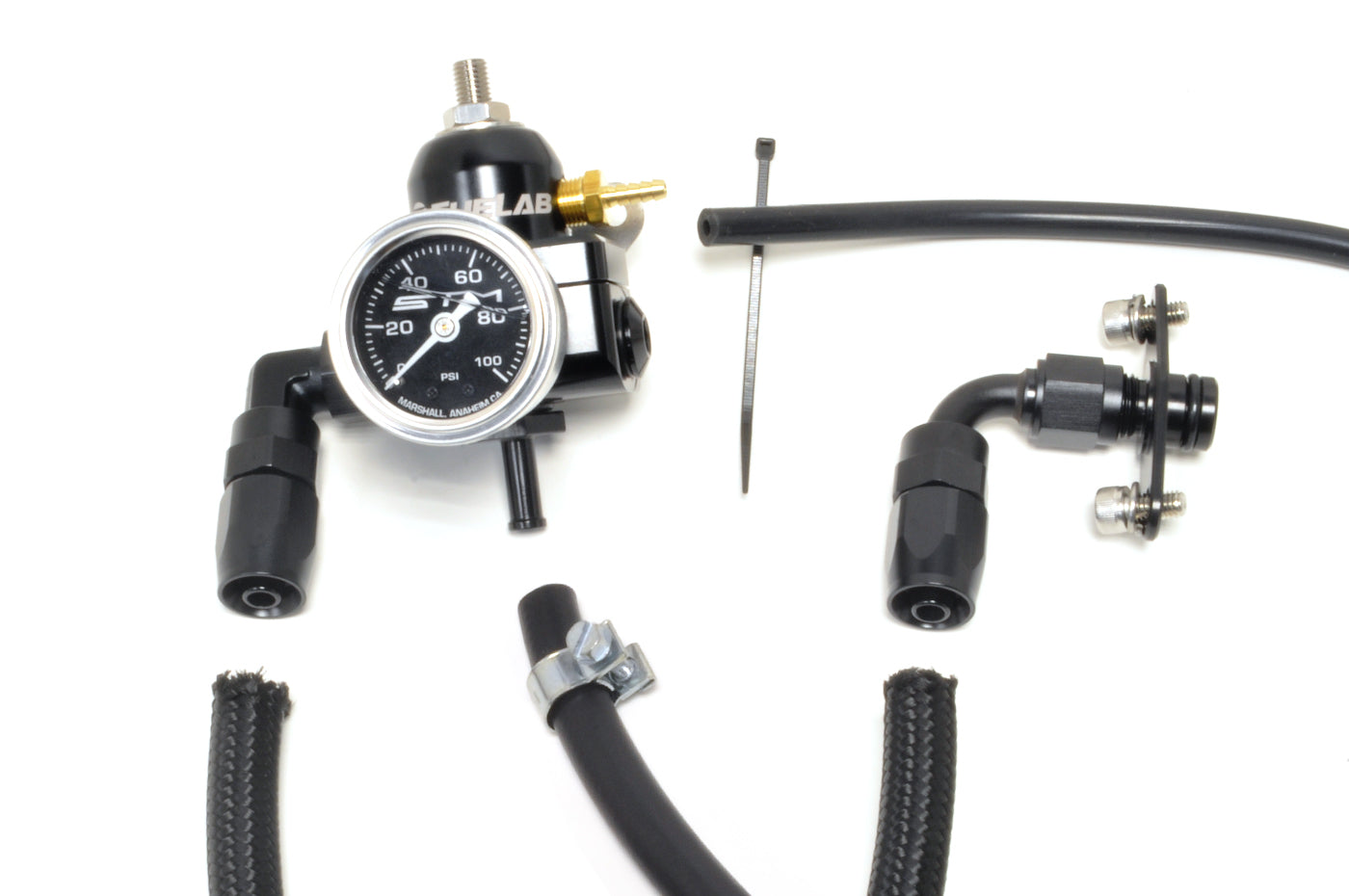

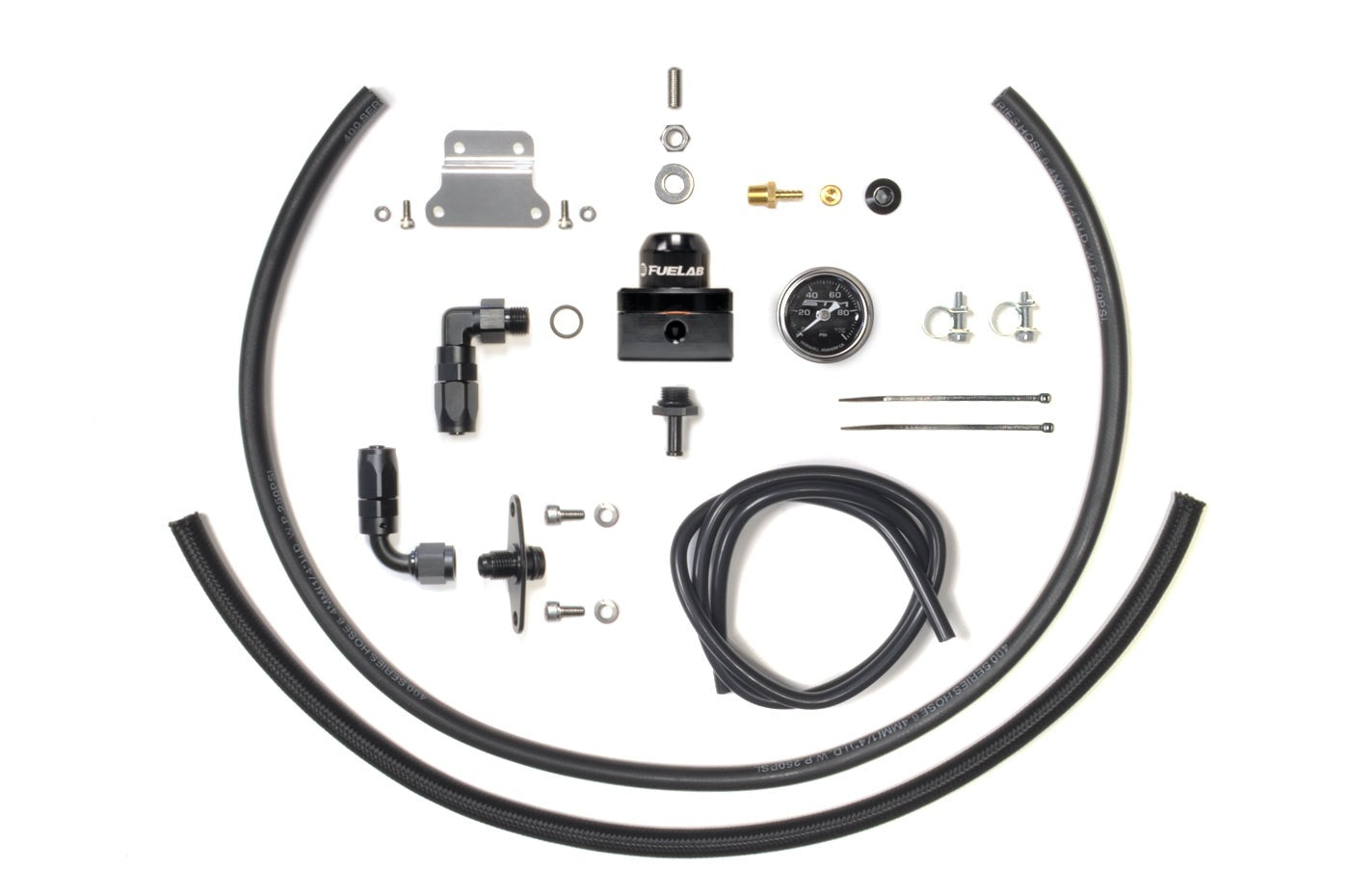

| Included Parts: | Used for Install: | |
| (1) 53501-* | Fuelab 6AN Mini Fuel Regulator | Mounted on firewall |
| (1) STM-6AN-7MM | STM -6AN Barb Fitting | To bottom port of regulator |
| (1) STM-1G-FRF-6L | STM Fuel Rail Fitting with Hardware | To fuel rail |
| (1) STM-UNI-FPG | STM Liquid-Filled Fuel Pressure Gauge | To front of regulator |
| (1) VIB-24902 | 6AN ORB 90° Hose End Fitting | To regulator |
| (1) VIB-21906 | 6AN 90° Hose End Fitting | To fuel rail fitting |
| (1) VIB-10992 | 6AN Port Plug | To right side of regulator |
| (2) VIB-12233 | High Pressure Clamps 10-12mm | For push-on hose |
| (3') VIB-16324 | 3 Feet -4AN Push-On Hose | FPR bottom to factory hard line |
| (2') VIB-11956 | 2 Feet -6AN Nylon Braided Hose | Between both 45° fittings |
| (3') FT-VB-012 | 3 Feet 3mm Silicone Vacuum Line | FPR to boost source |
| (2) FAS-63122 | Small 4" Zip Ties | For silicone vacuum line |
STM-1GDSM-FPRK-51502-1, STM-1GDSM-FPRK-51502-2, STM-1GDSM-FPRK-51502-3, STM-1GDSM-FPRK-51502-4, STM-1GDSM-FPRK-51502-5, STM-1GDSM-FPRK-51502-6, STM-1GDSM-FPRK-53501-1, STM-1GDSM-FPRK-53501-2, STM-1GDSM-FPRK-53501-3, STM-1GDSM-FPRK-53501-4, STM-1GDSM-FPRK-53501-5, STM-1GDSM-FPRK-53501-6
