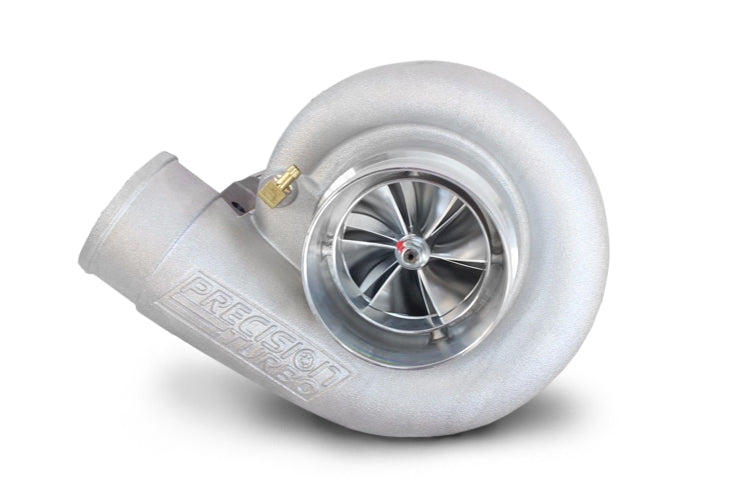

PTE 7675 Gen1 CEA Ball Bearing Turbo (1200 HP)
The PTE PT7675 Gen1 Turbo is rated for 1200 HP with a ball bearing CHRA. This is the "Gen1" version with the 6-blade CEA compressor wheel. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.
Features:
• Ball Bearing (BB) (Air-Cooled, Dual Ceramic)
• Gen 1 6-Blade CEA Compressor Wheel
• 76mm Inducer Compressor Wheel
• 75mm, 84 Trim CEA Turbine Wheel
• Rated for 1200 HP
• PTE "Street and Race Turbo"
Compressor Cover Options:
• H Cover (4.0" Inlet / 2.5" Outlet)
• HP Cover (H Ported) (4.0" Inlet / 2.5" Outlet)
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
PTE Turbo FAQ
See more about the different PTE housing options, compressor covers and PTE videos to help you get your turbo built correctly!
PTE 7675 Gen1 Ball Bearing Options
H Cover (4.0" Inlet / 2.5" Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
|
12206212219 *Discontinued* |
H Cover | T4 Inlet | V-Band Outlet | .81 |
| 12206212229 *Discontinued* |
H Cover | T4 Inlet | V-Band Outlet | .96 |
PTE 7675 Gen1 Ball Bearing Options
HP Cover Ported (4.0" Inlet / 2.5" Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 12207212219 | HP Cover | T4 Inlet | V-Band Outlet | .81 |
| 12207212229 | HP Cover | T4 Inlet | V-Band Outlet | .96 |
| 12207212299 | HP Cover | V-Band T4 Inlet | V-Band T4 Outlet | .96 |
