Mishimoto Dual Engine Oil Cooler Kit for Evo X (MMOC-EVO-08)
Silver with M Logo
$673.95
Skip to product information
$673.95
Product Overview
The Mishimoto Dual Engine Oil Cooler Kit for the Evo X is a direct-fit solution designed for 2008-2015 Mitsubishi Lancer Evolution X models. It features two 19-row oil coolers arranged in series, mounted behind the passenger-side foglight with engineered brackets that channel airflow for maximum cooling efficiency. This kit maintains full oil pressure and prevents engine limp mode during aggressive driving or track use.
Key Features
- Dual 19-row oil coolers run in series for enhanced heat dissipation
- V-mounted design positioned behind passenger-side foglight for optimal airflow
- Mounting brackets serve as ducting to direct airflow to coolers
- Adapts to stock thermostatically controlled oil housing without modification
- Maintains full oil pressure under high-load conditions to prevent limp mode
- Increases oil capacity by 0.8 quarts and reduces oil temperature by 10°F
Specifications
| Material | 6061 Aluminum |
|---|---|
| Core Height | 5.43" |
| Rows | 19 |
| Cooler Construction | Stacked-plate |
| Core Thickness | 1.97" |
| Core Length | 11" |
| Fitting Size | -10AN |
| Pressure Drop | 0 PSI |
| Increase In Oil Capacity | 0.8 qt |
| Temp Difference | 10°F |
Available Configurations
| Part Number | Configuration |
|---|---|
| MIS-MMOC-EVO-08 | Silver with M Logo |
| MIS-MMOC-EVO-08BK | Black Anodized |

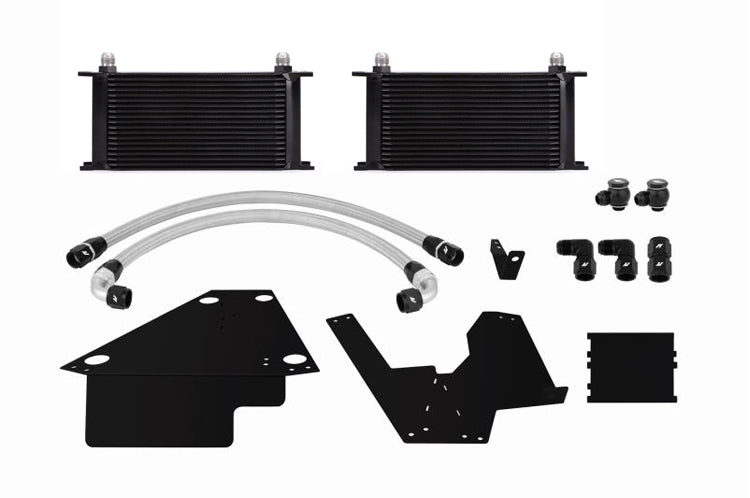

What's Included
- 4 application-specific mounting brackets
- 2 x 19-row oil coolers
- 1 x -10AN stainless steel braided hose (2 ft)
- 1 x 1.5-inch stainless steel braided hose (2 ft)
- 2 x 90° -10AN female to male swivel adapters
- 1 x straight -10AN female to female adapter
- 2 x banjo fittings with M18 x -10AN bolt, black
- 1 x mounting hardware set
