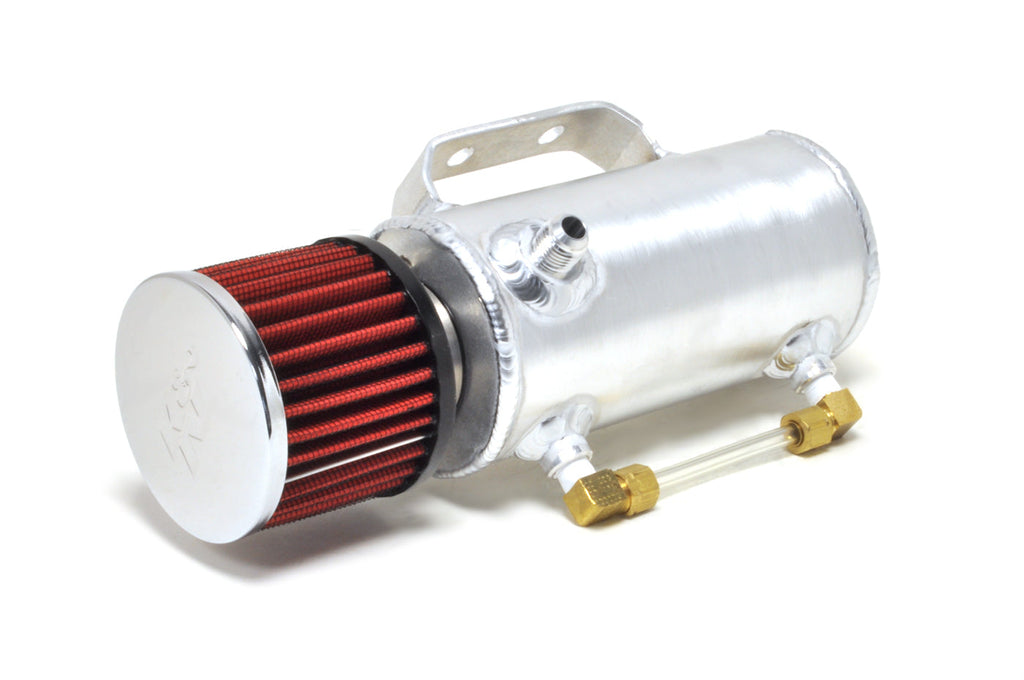

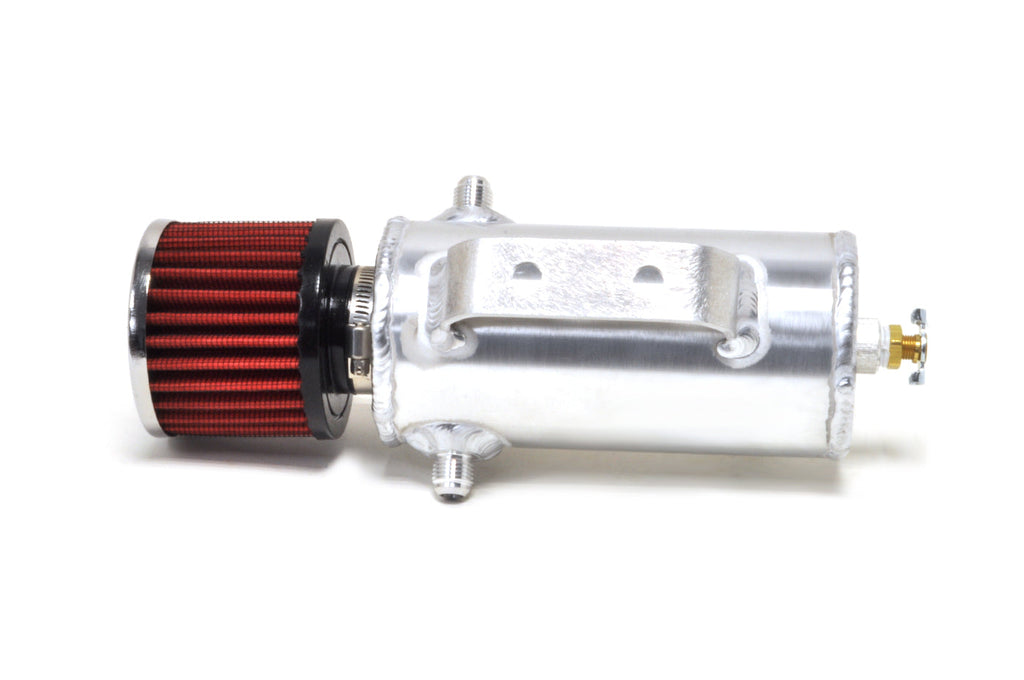

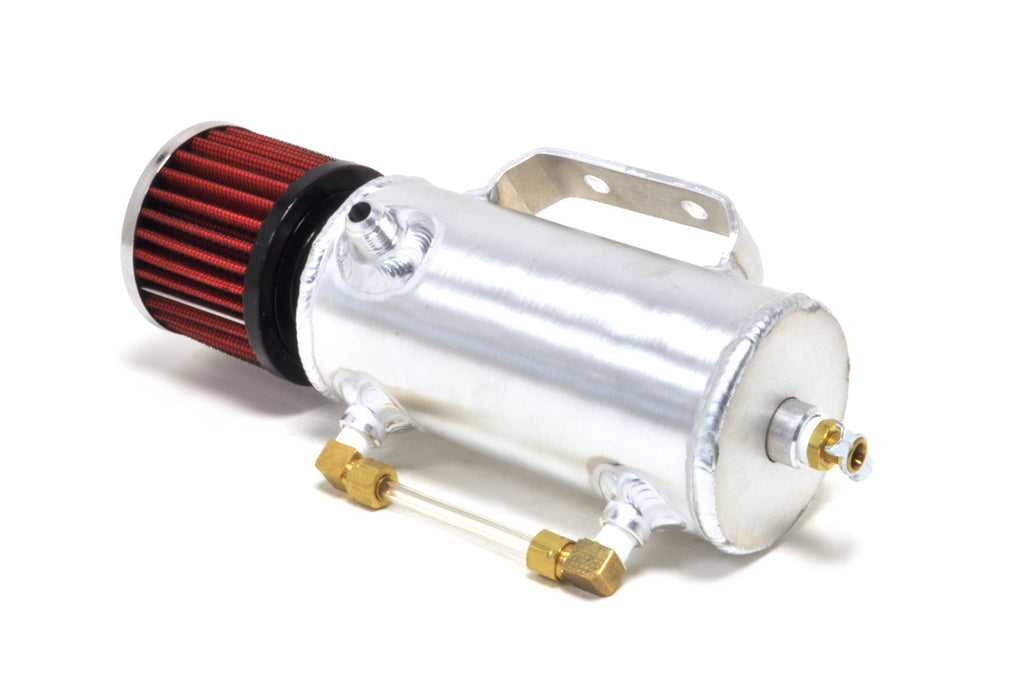

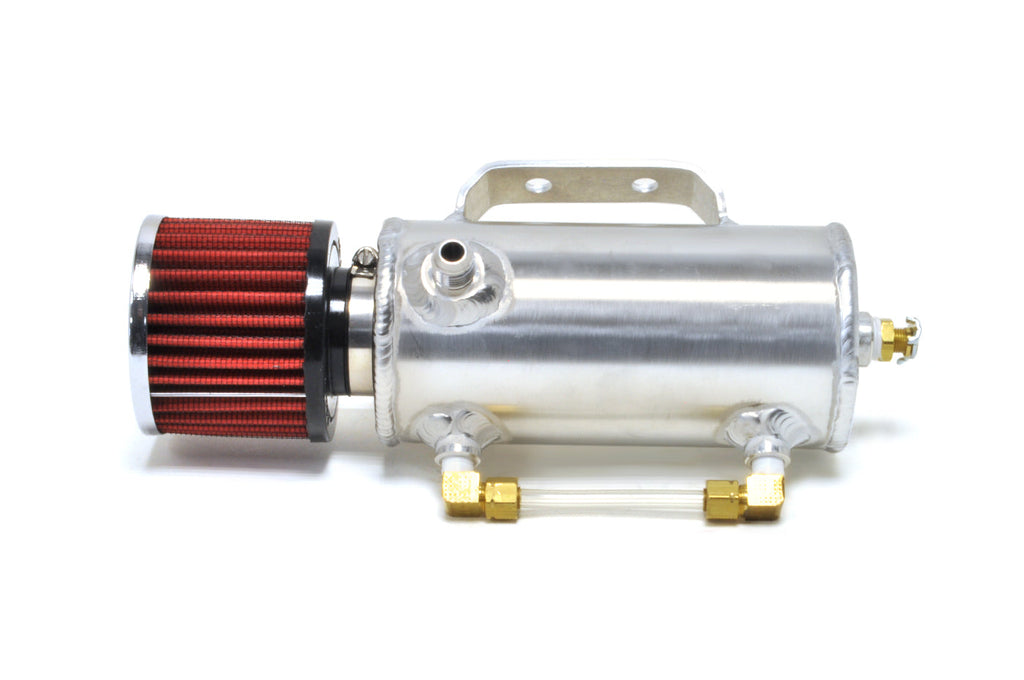

JMF Deluxe Engine Oil Catchcan (UN-DXCTCN)
Standard Hose Barb
$175.88
Skip to product information
$175.88
Product Overview
The JMF Deluxe Engine Oil Catchcan (UN-DXCTCN) captures excess oil from valve cover blow-by, preventing it from entering the intake system and reducing intercooler contamination. It features a fluid level gauge and a K&N breather filter to manage oil flow and maintain clean intake air. Designed for turbocharged engines, it ensures efficient operation by isolating oily blow-by from the intake path.
Key Features
- Holds excess oil from valve cover blow-by to prevent intake contamination
- Features a fluid level gauge for real-time monitoring
- Equipped with a K&N breather filter for improved airflow and oil retention
- Includes two heavy-duty brass inlet fittings for secure connections
- Brass drain valve allows easy oil removal when needed
- Universal mounting bracket with two 3/8" holes for flexible installation
- Available in multiple standard fittings: hose barb, 6AN, 8AN, 10AN, 12AN
Specifications
| Fittings | Standard Hose Barb, 6AN, 8AN, 10AN, 12AN |
|---|---|
| Part Number | UN-DXCTCN-00, UN-DXCTCN-04, UN-DXCTCN-01, UN-DXCTCN-02, UN-DXCTCN-03 |
| Inlet Fittings | 2 Heavy-Duty Brass |
| Drain Valve | Brass |
| Mounting | Universal Bracket with Two 3/8" Holes |
| Dimensions | 13x9x7 inches |
| Weight | 3 pounds |
Available Configurations
| Part Number | Configuration |
|---|---|
| JMF-UN-DXCTCN-00 | Standard Hose Barb |
| JMF-UN-DXCTCN-04 | 6AN |
| JMF-UN-DXCTCN-01 | 8AN |
| JMF-UN-DXCTCN-02 | 10AN |
| JMF-UN-DXCTCN-03 | 12AN |
Applications
- Intercooler systems
- Turbocharged engines
- Valve cover blow-by management
What's Included
- 1 Catchcan
