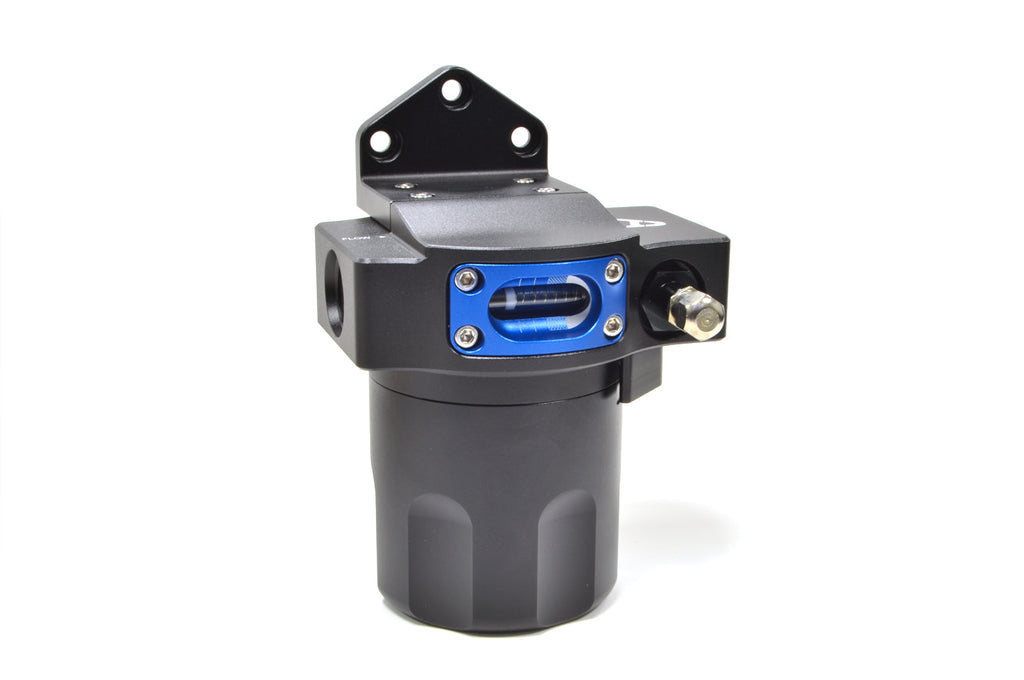

Injector Dynamics ID F750 Fuel Filter (ID-F750)
$346.50
Skip to product information
$346.50
Product Overview
Meets Bosch electronic fuel injector specification with 87% capture efficiency at 5 microns and 100% at 35 microns.
Key Features
- Designed for high flow performance with 750 l/h at 7.5 kPa and 1000 l/h at 13 kPa without significant pressure drop.
- Holds up to five grams of contaminant—equivalent to one teaspoon—before requiring replacement.
- Features microglass filter media for superior particle capture and long-term performance.
- Compatible with all known automotive fuels and operates up to 10.0 bar (145 psi) fuel pressure.
- Includes a delta P indicator to monitor filter condition and performance over time.
- Available with optional Bosch 10 bar pressure and -40 to 140°C temperature sensor block for real-time monitoring.
Specifications
| Nominal Flow Rate | 750 l/h @ 7.5 kPa (1.1 psi) |
|---|---|
| Maximum Flow Rate | 1000 l/h @ 13 kPa (1.9 psi) |
| Maximum Fuel Pressure | 10.0 Bar (145.0 psi) |
| Filter Efficiency | 87% at 5 microns, 100% at 35 microns |
| Fuel Compatibility | All known automotive fuels |
| Connection Type | SAE -8 O-Ring Barb |
| Weight | 700g |
| Contaminant Capacity | 5 grams (approx. one teaspoon) |
Applications
- Universal Application
What's Included
- ID-F750 Fuel Filter Assembly
