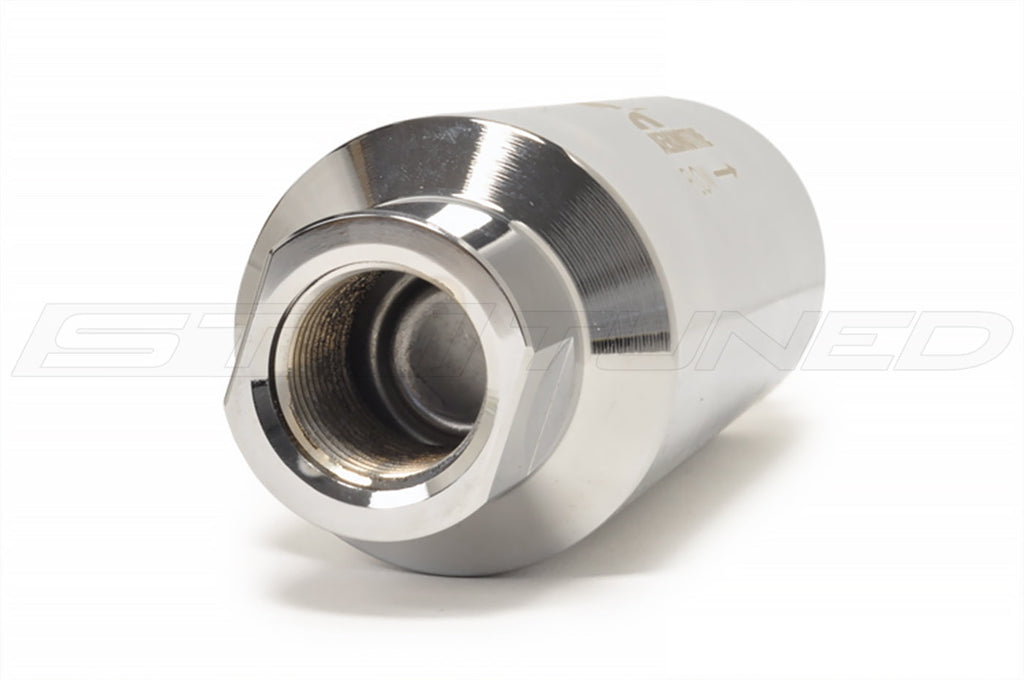

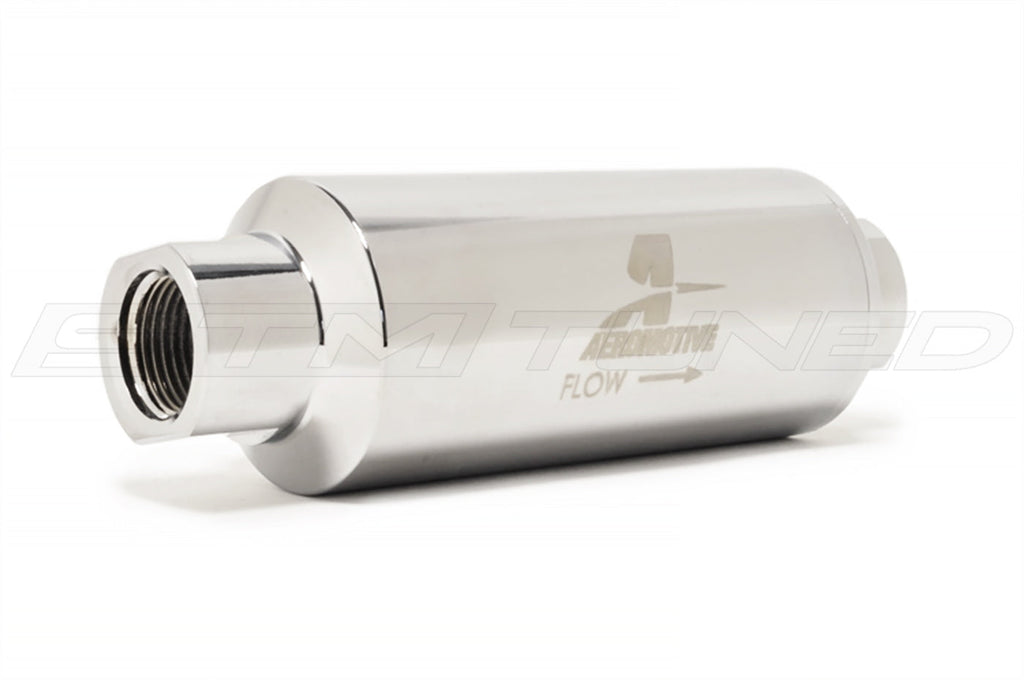

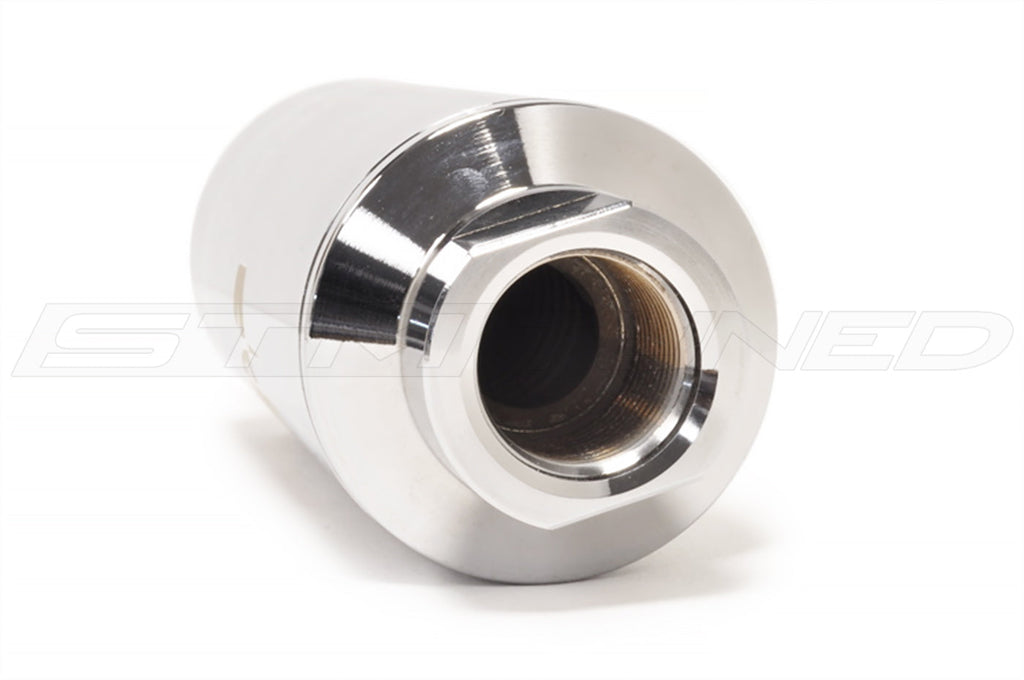

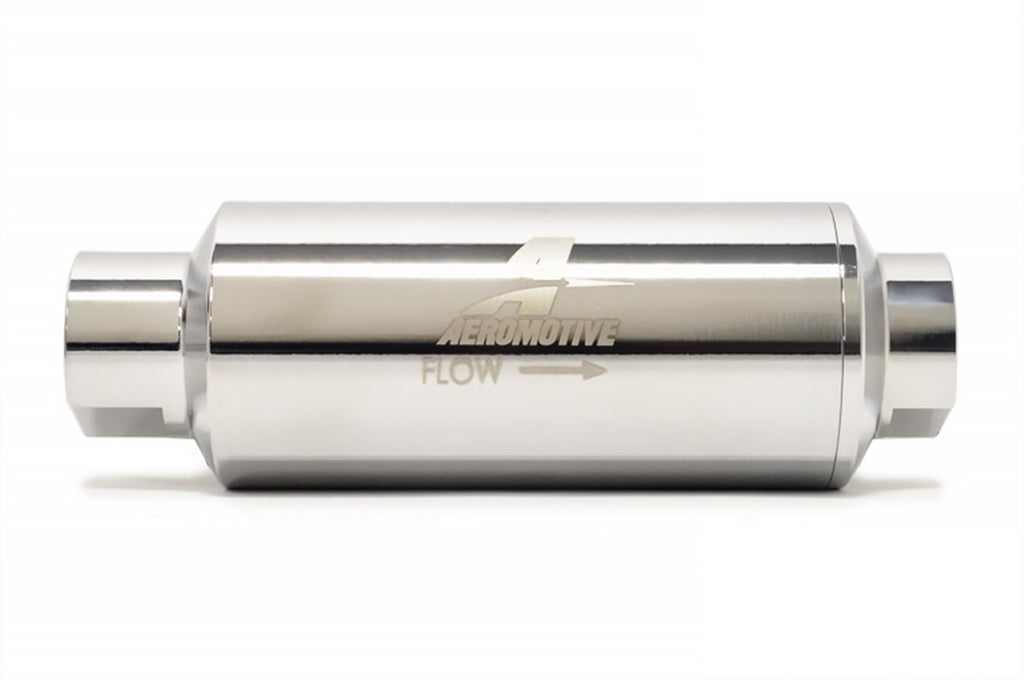

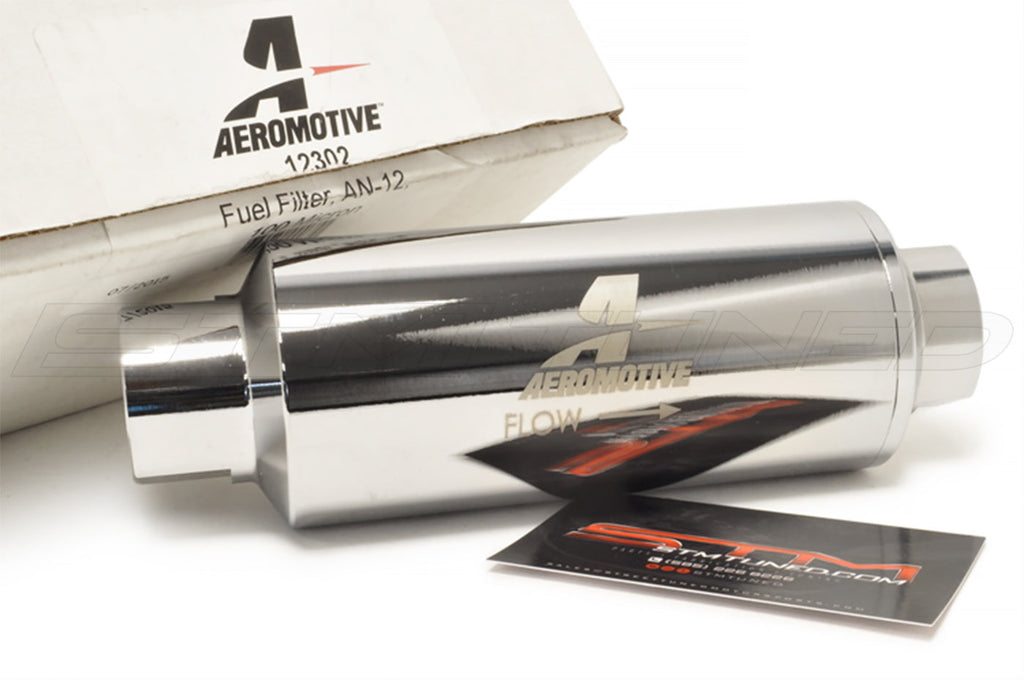

Aeromotive Pro-Series Fuel Filter ORB-12AN & Stainless 100 Micron (12302)
$323.90
Skip to product information
$323.90
Product Overview
Engineered for use in engines from 200 to 3,000+ horsepower, this filter is compatible with gasoline, diesel, ethanol, and methanol fuels. With a flow rate of 2,000 lb/hr and a pressure drop under .15 PSI, it maintains efficient fuel delivery without sacrificing performance or longevity.
Key Features
- Stainless steel 100-micron internal element for coarse filtration
- Flows 2,000 lb/hr with less than .15 PSI pressure drop
- AN-12 ORB female ports for direct fuel line connection
- Designed for use with gas and alcohol fuels including ethanol and methanol
- Cleanable filter element for long-term maintenance and reuse
Specifications
| Filter Element | 100-micron stainless steel (coarse) |
|---|---|
| Flow Rate | 2,000 lb/hr |
| Pressure Drop | less than .15 PSI |
| Housing Material | Billet Aluminum |
| Port Type | AN-12 ORB female |
| Part Number | 12302 |
| UPC | 684980000351 |
Applications
- Pre-filter for fuel pumps up to 6 GPM
- For 200-3000+ HP applications
- Compatible with gasoline, diesel, ethanol, and methanol fuels
What's Included
- 1 x Fuel Filter with Internal Element (Part Number: 12302)
- 1 x 100-micron stainless mesh filter element (100-M)
